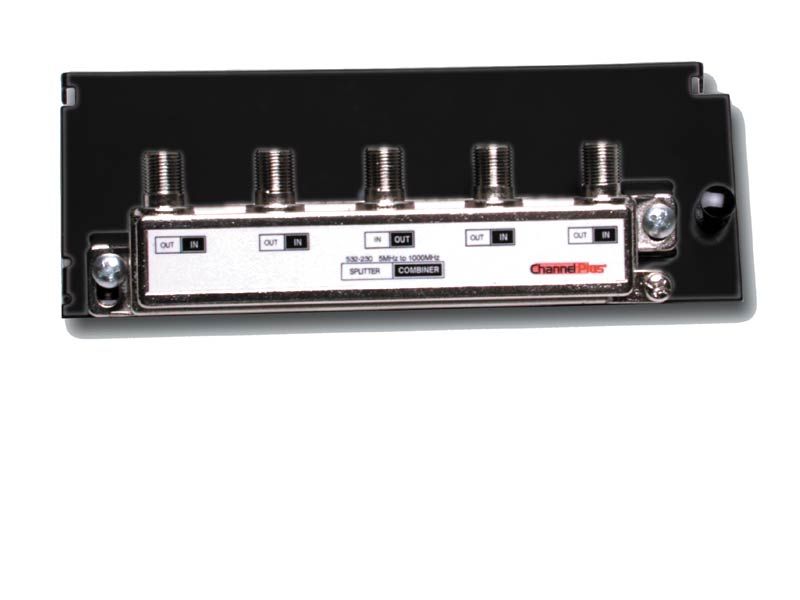

Linear H804 Splitter Combiner Hub

The Model H804 Splitter/Combiner Hub provides a grid mounted solution for distribution of television. CATV or antenna signals can be routed to four locations with the high quality on-board splitter. The splitter can alternately be used as a combiner to merge four inputs into one output.

Features

• 4-Way balanced design: Ensures equal distribution of signals across four outputs, enhancing performance.
• 7.8 dB insertion loss @ 1000 MHz: Minimizes signal loss, providing better quality reception.
• 5-1000 MHz bandwidth: Covers FM, cable modem, VHF, and UHF bands for versatile use.
• -130 dB RFI rejection: Reduces interference, ensuring a clearer signal.
• PCB design: Offers consistent performance and reliability over time.
• Tilted 15°: Allows for easier connections while saving grid space.
• Return loss (IN and OUT) 20 dB minimum: Guarantees excellent signal integrity across all frequencies.
• Isolation (OUT to OUT) 22-25 dB: Improves overall signal quality by preventing cross-talk between outputs.
• Six enclosure grid spaces: Offers flexibility for installation in various grid setups.
• Dimensions: 6.25" x 1" x 2.75" fits easily into compact spaces.

Linear H804 Splitter Combiner Hub Specifications
