Linear GTB-HD4K2K-642-BLK 6x2 Matrix for HDMI 4Kx2K

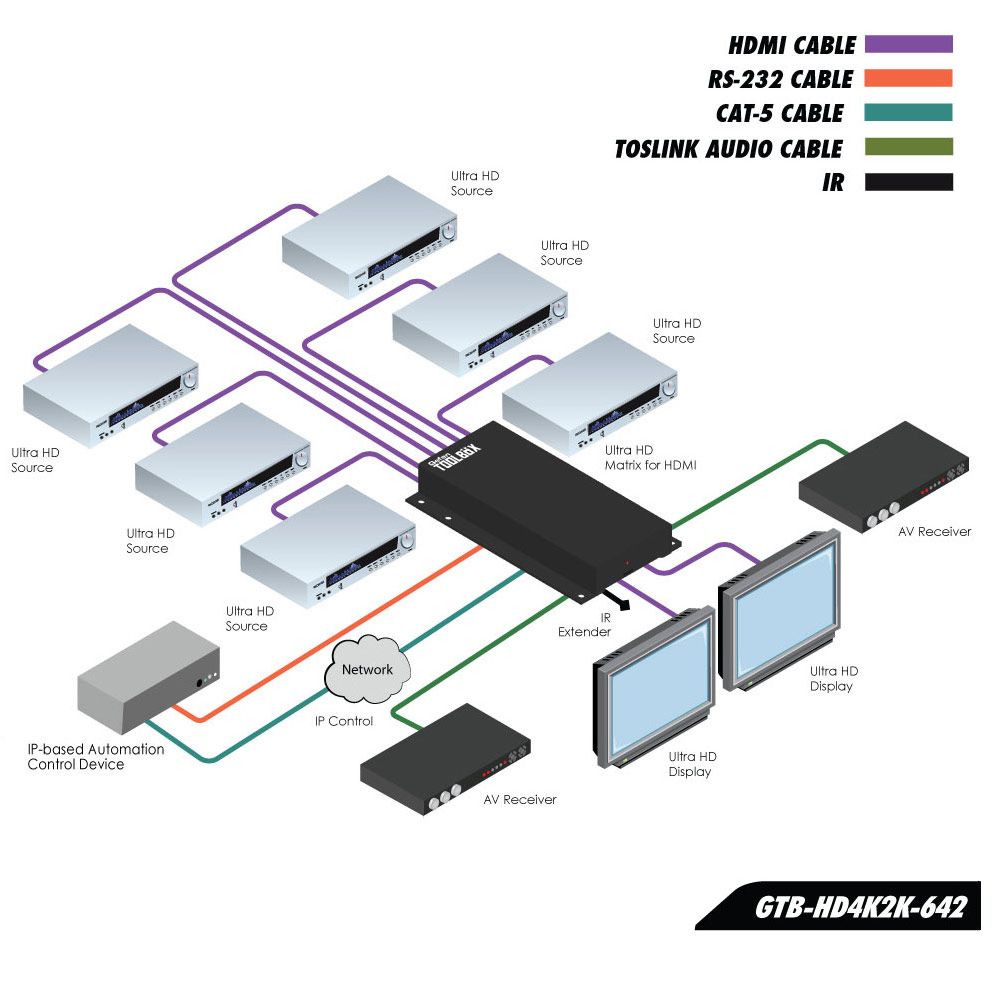

The Gefen GTB-HD4K2K-642-BLK ToolBox 6×2 Matrix for HDMI is the perfect solution for those needing to connect multiple Ultra HD sources to displays seamlessly. Its compact design allows for easy installation and setup, and with support for resolutions up to 4K, you can enjoy stunning visuals. Control your routing easily through various methods like an IR remote, front panel buttons, or IP control options, making this matrix a versatile choice for any home or professional environment.

Gefen GTB-HD4K2K-642-BLK Features

• Maximum Pixel Clock: 300 MHz ensures high-quality signal transmission without any loss.
• HDMI Input Connectors: (4) Type A 19-pin female, locking connectors for secure and stable connections.
• HDMI Output Connectors: (2) Type A 19-pin female, locking connectors to transmit high-definition content efficiently.
• USB Port: (1) Mini-B for firmware updates or connectivity enhancements.
• RS-232 Serial Port: (1) DB-9, female for advanced control options and integration with existing systems.
• Ethernet (IP Control) Port: (1) RJ-45 allowing for remote control and monitoring through IP-based interfaces.
• Power Indicator: (1) LED, blue provides a clear visual indication of power status.
• FST Indicators: (2) LED, green to inform of the current FST mode and function.
• Audio Indicators: (2) LED, green, allowing for quick checks on audio routing status.
• EDID Indicators: (3) LED, green displaying the current EDID settings for effective source recognition.
• Routing Indicators: (16) LED, green for each input/output connection to easily track routing statuses.
• FST Selector: (1) tact-type, recessed push-button for easy selection of FST modes.
• Audio Selector: (1) tact-type, recessed push-button for straightforward audio input selection.
• EDID Selector: (1) tact-type, recessed push-button to customize EDID settings.
• Routing Selectors: (4) tact-type push-buttons allowing quick switching between inputs and outputs.
• IR Sensor: (1) on front panel for receiving remote control commands seamlessly.
• IR Extender Port: (1) 3.5mm mini-stereo jack for extending IR signal reach for enhanced control.
• DC Power Connector: (1) Locking type to ensure a secure connection to power supply.
