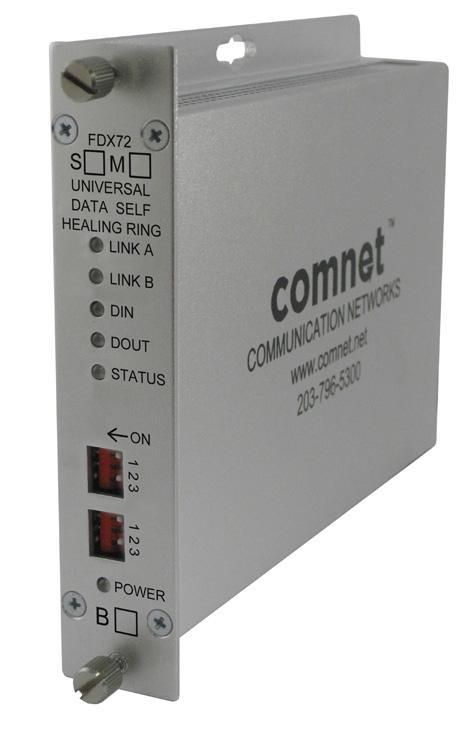

Comnet FDX72S1SHR Universal Data Self Healing Ring

The ComNet™ FDX72S1SHR Self-Healing Ring Transceiver unit is a fully-digital modem designed for implementing RS232, RS422 or RS485 2 or 4-wire data communications networks of the highest possible reliability. A network of FDX72SHR units can support one full-duplex or two half-duplex data channels. These transceivers also feature data translation to convert between data protocols. Data re-clocking and regeneration permit an almost unlimited number of transceiver/controller units to be used within the network. These environmentally hardened transceivers are ideal for use in unconditioned out-of-plant or roadside installations and, unlike many competing designs, only one optical fiber is required between units to implement a fully self-healing ring. Bi-color indicating LEDs are provided for rapidly ascertaining equipment operating status, including the location of fiber breaks. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required.

ComNet FDX72S1SHR Universal Data Self Healing Ring Features

• Meets EIA RS232 and RS422/RS485 Specifications: Ensures compatibility with a wide range of data communications protocols.
• Two Data Channel Capability: One full duplex or two half-duplex channels provide flexibility in data transfer.
• Single Fiber Requirement: Only one optical fiber required for Fault Tolerant/Self-Healing Ring Operation, reducing installation complexity.
• Data Re-Clocking and Regeneration: Allows for an unlimited number of transceiver units, enhancing network scalability.
• Supervised Multiple Master Architecture: Offers unmatched reliability in network operations.
• Remote Fault Indication: Alerts users to fiber breaks or power loss, ensuring prompt troubleshooting.
• LED Status Indicators: Quickly displays critical operating parameters, aiding in immediate diagnostics.
• Data Protocol Conversion: Enables serial data protocol conversion between nodes, increasing versatility (consult factory).
• Environmental Compliance: Meets NEMA TS-1/TS-2 and Caltrans specifications for reliability in harsh conditions.
• Robust Design: Ensures high reliability in unconditioned environments, making it ideal for roadside installations.
• NTCIP Compatibility: Facilitates integration within traffic signal control systems.
• Voltage Transient Protection: Shields against power surges, ensuring equipment longevity.
• Wide Optical Dynamic Range: Eliminates the need for optical attenuators, simplifying setup.
• Hot-Swappable Rack Modules: Allows for easy maintenance without disrupting service.
• Interchangeable Design: Can be used as either stand-alone or rack mount with the ComFit package.
• DIN-Rail Mountable: Compatible with optional ComNet DINBKT1 or DINBKT4 adaptor plates for versatile installation.
