Comnet FDX2HSDM1B/M Dual High Speed RS485 Data Transceiver “B” End Point MM

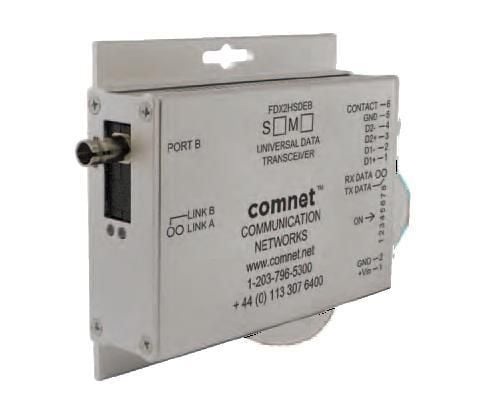

The ComNet™ FDX2HSDM1B/M data transceivers provide point-topoint or drop-and-repeat transmission of two independent simplex or duplex high-speed RS485 (2W) data signals over one optical fiber. The transceivers are transparent to data encoding allowing for broad-range compatibility. Models within this series are available for use with multimode optical fiber and feature built-in DIP switch-selectable bias and termination resistors for each data channel. Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. Each transceiver incorporates bi-color (Red/Green) indicating LEDs for monitoring proper system operation, including the location of fiber breaks. The FDX2HSD/M units are medium size surface mount modules, and they may be DIN-rail mounted by the addition of ComNet DIN rail adaptor plate (model DINBKT1, sold separately).

Features

• Data Rates to 1Mbps
• Meets RS485 (2W) specifications
• Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
• NTCIP compatible
• Built-in Fiber Link Tester - allows for the testing of the fiber
• Remote Fault Indication allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
• Wide optical dynamic range: optical attenuators are never required
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
