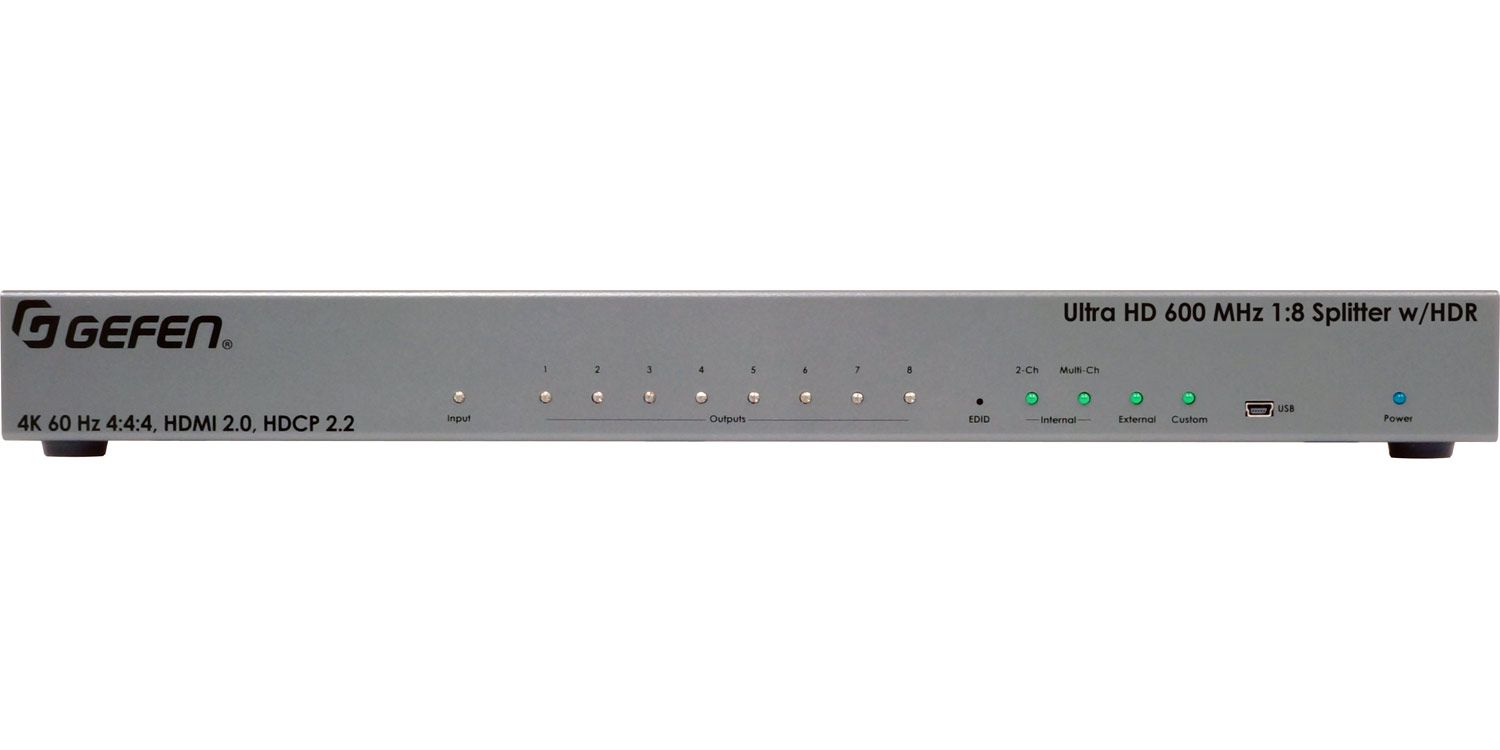

Linear EXT-UHD600-18 4K Ultra HD 600 MHz 1:8 Splitter with HDR

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen EXT-UHD600-18 splitter distributes signal from one 4K source, and distributes it to up to eight 4K displays or video zones. The splitter features a 1U tall, rack-mountable enclosure that can also be placed on a shelf. It also accommodates Gefen locking HDMI cables for secure connections. Gefen’s Ultra HD 600MHz Series of splitters take HDMI 2.0 to its highest specification of 4K 60 Hz at 4:4:4 chroma subsampling, along with HDR (High Dynamic Range) support. They go beyond the requirements of typical 4K systems, delivering stunning Ultra HD and DCI/Cinema picture up to 4096 x 2160 pixels at 60 frames per second without subsampling color. This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immersive clarity. Gefens Ultra HD 600MHz Series creates a seamless bridge between the digital media of yesterday, today, and tomorrow.

Features

• Simultaneous Display: Displays an Ultra Hi-Def source on up to eight Ultra HD displays for expansive viewing options.
• Cascading Support: Specifically designed to support multiple layers of splitting/cascading in large video distribution, accommodating hundreds of displays.
• High-Resolution Support: Supports resolutions up to 4K DCI-Cinema (4096 x 2160 at 60 Hz, 4:4:4) and 4K Ultra HD (3860 x 2160 at 60Hz, 4:4:4) for exceptional clarity.
• HDCP Compatibility: Supports HDCP 2.2 and 1.4 for rigorous digital copyright protection.
• HDR Support: Supports HDR (High Dynamic Range) 10-bit Deep Color at various resolutions, enhancing image detail.
• Deep Color Support: Provides 12-bit Deep Color at 1080p 60 Hz 4:4:4, offering a broad color spectrum.
• 3DTV Pass-Through: Supports 3D content for immersive experiences.
• Lip Sync Pass-Through: Ensures audio and video stay in sync for seamless viewing.
• EDID Management: Features EDID Management and Audio Mode selectors for effortless integration.
• Audio Support: Supports uncompressed LPCM digital audio up to 7.1 channels for premium sound quality.
• High Bit Rate Audio: Supports up to 7.1 channels of HBR digital audio, including formats like Dolby Atmos® and DTS:X.
• DVI Compatibility: Can use DVI sources and displays up to 1080p with HDMI-to-DVI adapters.
• Firmware Update: In-field firmware updates via USB using Gefen Syner-G software for ongoing improvements.

Gefen EXT-UHD600-18 Detailed Specifications
