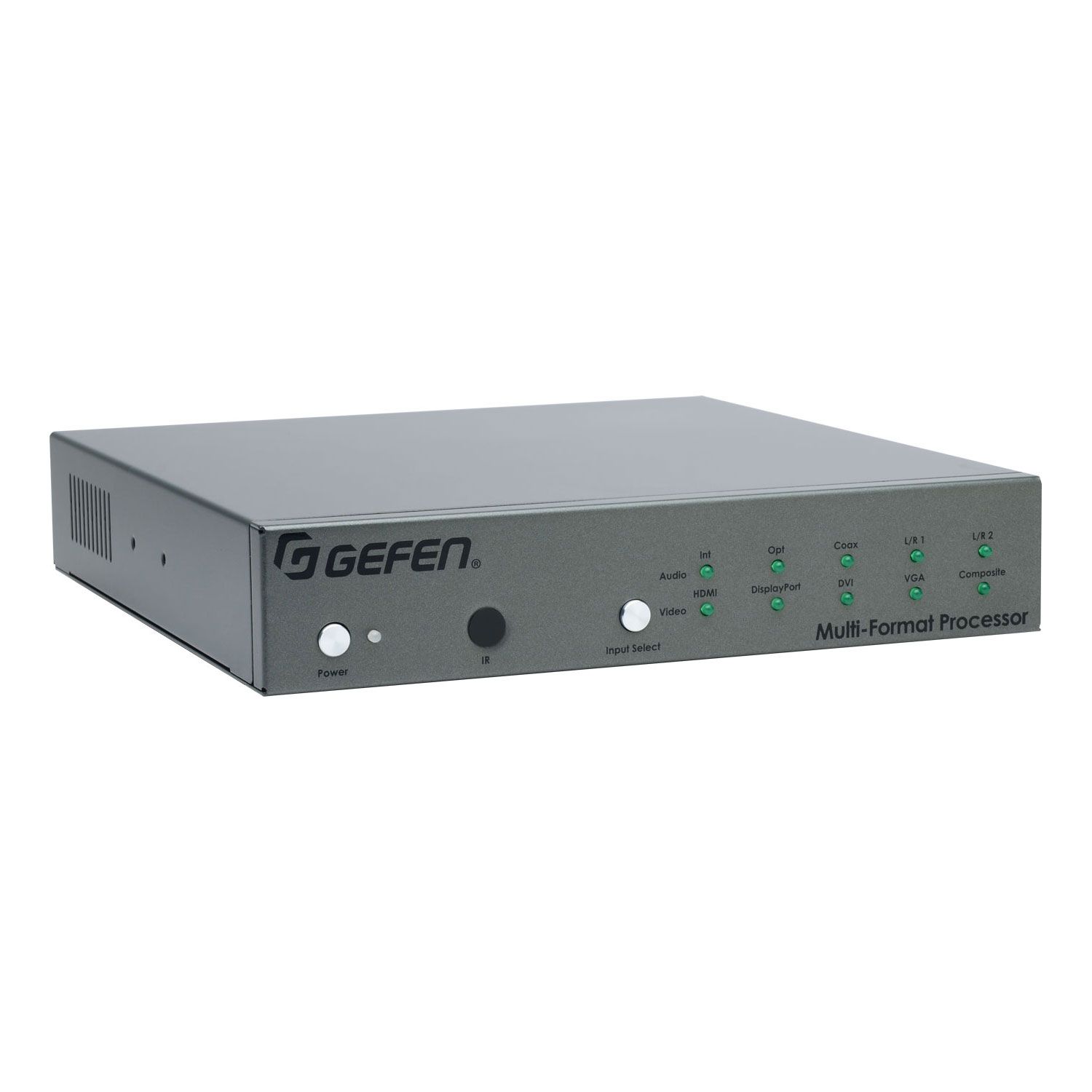

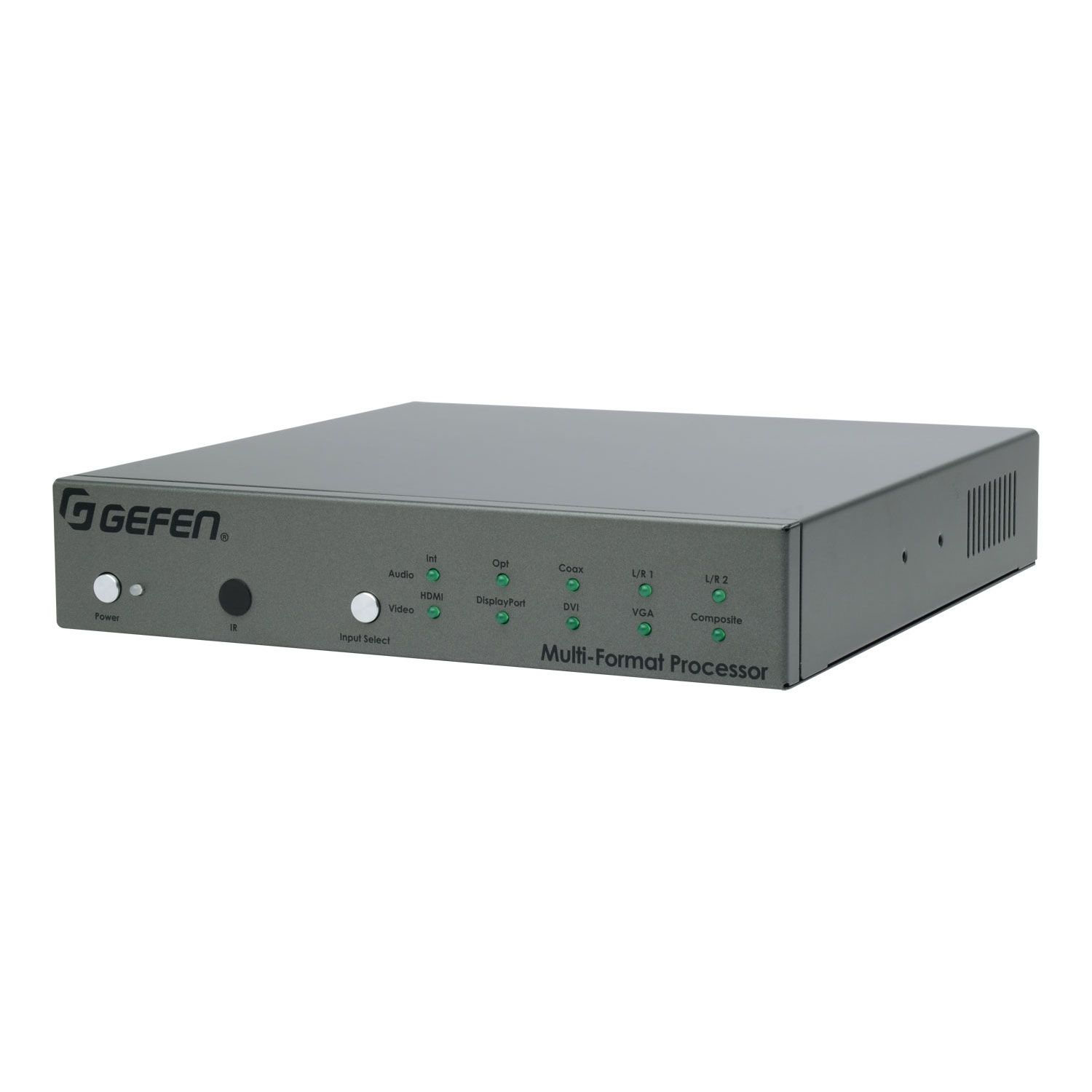

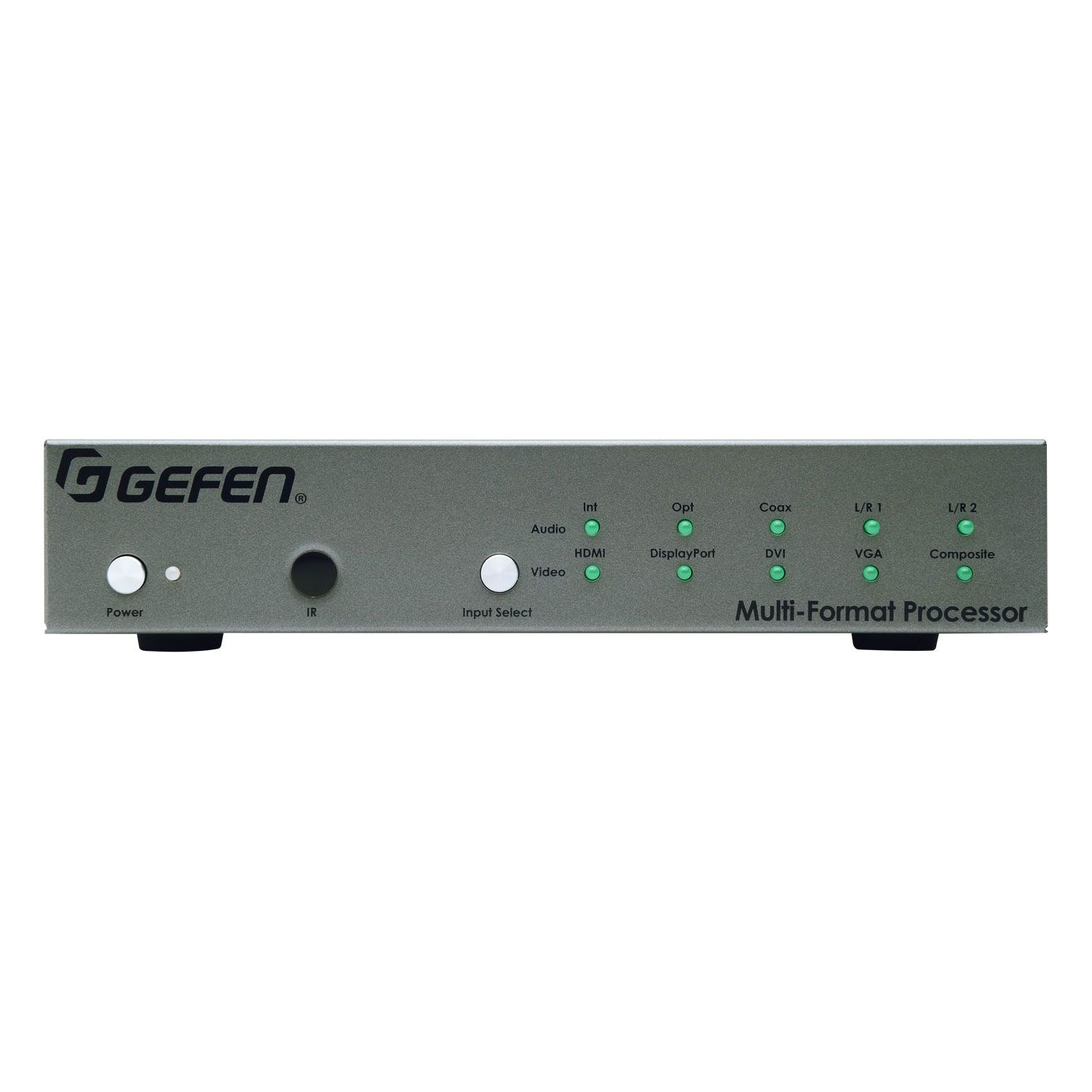

The Gefen EXT-MFP Multi-Format Audio/Video Processor is a compact and powerful presentation switcher with cutting-edge format conversion and scaling abilities. It supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), with HDCP. Its unique features include an intuitive and elegant web server interface, an easy-to-use On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, independently password-protected user and administrator access, advanced EDID management, a wide variety of video inputs including Mac and PC compatible DisplayPort, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be surface or rack mounted, or placed on a shelf. The EXT-MFP features full compatibility with the Gefen Syner-G software, including Discovery, Show-Me, and IP configuration. It is a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any other high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment.
Gefen EXT-MFP Multi-Format Processor Features
Independent and configurable audio and video routing: Offers flexibility in routing audio and video separately for tailored presentations.
Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA): Ensures compatibility with high-definition sources and displays for superior image quality.
HDCP compliant: Prevents issues with playback of protected content, making it ideal for professional environments.

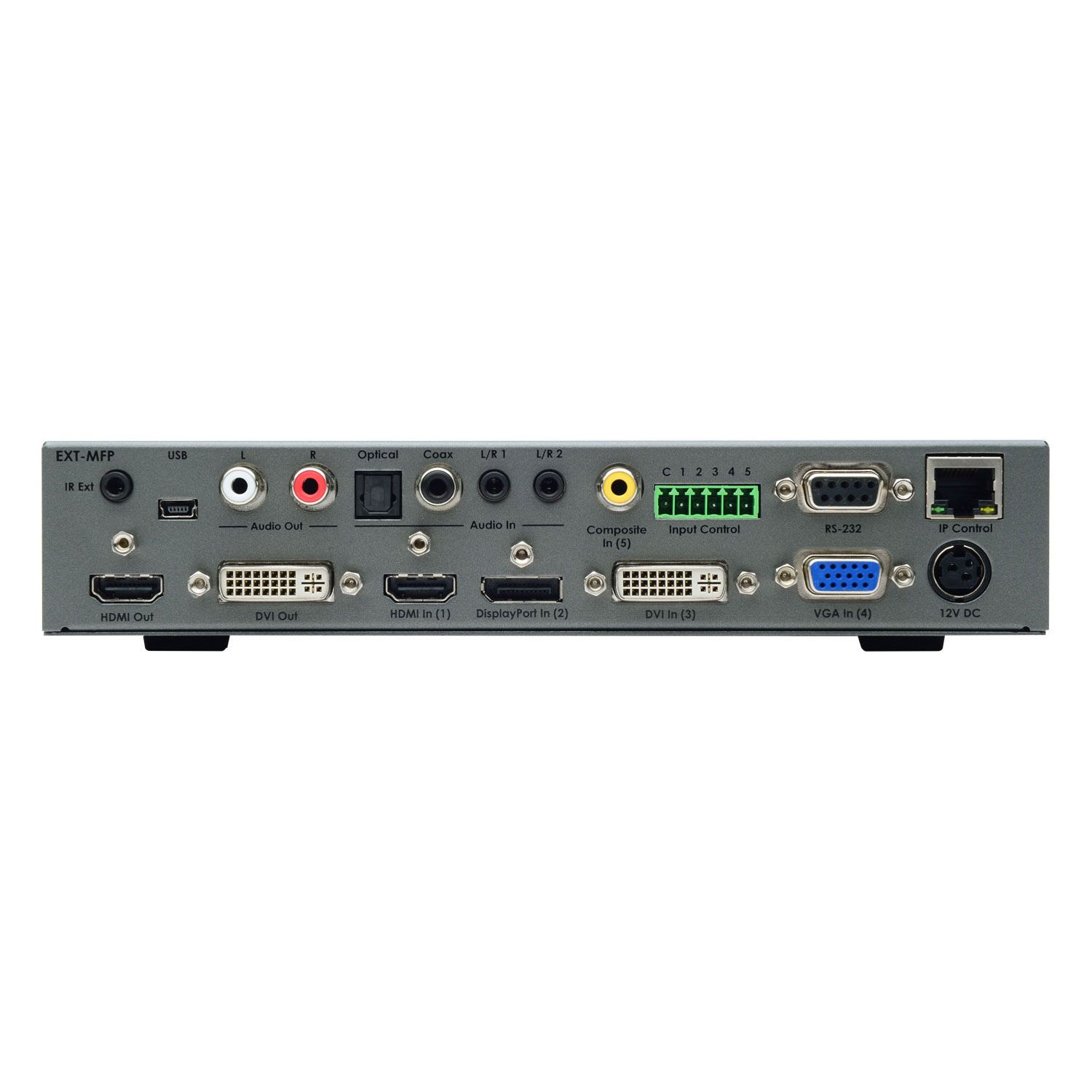

HDMI, DisplayPort, DVI, VGA, and Composite Video inputs: Versatile input options accommodate various devices ensuring broad compatibility.
DisplayPort input is compatible with Mac and PC computers: Simplifies connectivity in mixed-OS environments, enhancing usability.
TOSLINK® optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs: Comprehensive audio input options for superior sound quality and versatility.
Each audio source can be independently assigned to any video source: Provides customized audio management for multi-media presentations.
Audio sources can be temporarily switched away from their assigned video sources: Allows for quick adjustments during presentations without hassle.
On-screen display (OSD) menu and web server interface allow easy set-up & control: User-friendly interfaces simplify operation and configuration.
IP control via Telnet, UDP, and web server interface: Enables remote control and automation for enhanced functionality.
RS-232 Serial interface for use with an automation control system: Facilitates integration with existing automation infrastructure.
Independent IR control of up to four units in proximity, using distinct command sets: Streamlines control in environments with multiple units.
Password-protected user and administrative access: Ensures security and control of the device functionality.
Advanced EDID Management for rapid integration of sources and displays: Efficiently manages compatibility between devices.
Assignable input naming: Allows personalization for easier identification of connected devices.
