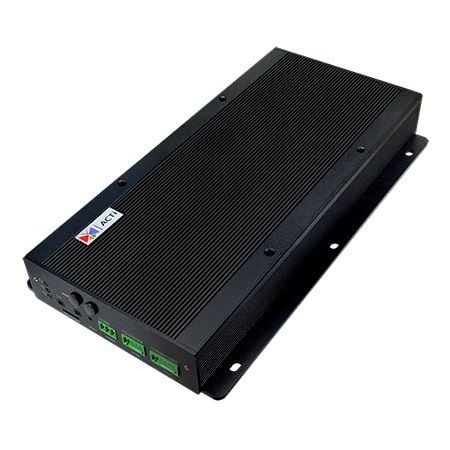

ACTi ECD-200 16-Channel Media Display Station with Wireless
SKU
ECD-200
Model No
ECD-200
$2,068.20
Product Highlights
- 1-bay Video Decoder
- Maximum Number of Video Devices: 16
- Free License: 16
- Event trigger, response and notification
- Web Client
- Location-based management with e-Map
Speak to an expert
The ECD-200 from ACTi is a versatile 16-channel media display station that enhances video monitoring with its wireless capabilities. Offering seamless integration and robust functionality, this device is ideal for both security and business applications, ensuring you stay connected and informed.
ACTi ECD-200 Camera Features
- 1-bay Video Decoder: Supports real-time video decoding for efficient media playback.
- Maximum Number of Video Devices: Connect up to 16 devices, allowing for extensive surveillance coverage.
- Free License: Comes with a complimentary license for 16 channels, saving you additional costs.
- Event Trigger, Response and Notification: Enables automatic notifications for specific events, enhancing security responsiveness.
- Web Client: Manage and view video feeds remotely through a user-friendly web interface.
- Location-based Management with e-Map: Offers intuitive mapping features for easy navigation and management of video streams.
ACTi ECD-200 Detailed Specifications
| Feature | Details |
| Model | ACTi ECD-200 |
| Channels | 16 |
| Video Decoder | 1-bay |
| Licenses Included | 16 Free licenses |
| Event Handling | Trigger, response, and notification capabilities |
| Remote Access | Web client access for easy management |
| Map Integration | e-Map for location-based management |
SKU  | ECD-200 |
|---|---|
| Manufacturer | ACTi |
| No Of Channels | 16 Channel |
Resolution  | 640 X 480, 720 X 480, 720 X 576, 1920 X 1080, 3840 X 2160 |
| Compression Method | H.264, H.265 |
| COM Ports | RS-232 |
| Protocols | DHCP, HTTP, HTTPS, IP, PPPoE, RTP, RTSP, TCP, UDP |
| Connector | HDMI, VGA |
| Ethernet | Non-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector |
| Video In | 2 |
| Audio Line Output | 2-way |
| Event Trigger | Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection |
| Operating System | Windows 10, Windows 8.1, Windows 7 SP1, Windows Server 2012 R2, Windows Server 2008 R2 SP1 |
| Frame Rate | 30 fps at 3840 x 2160 30 fps at 1920 x 1080 30 fps at 720 x 480 25 fps at 720 x 576 30 fps at 640 x 480 |
| Features | Local Storage, PTZ Support, Wireless |
