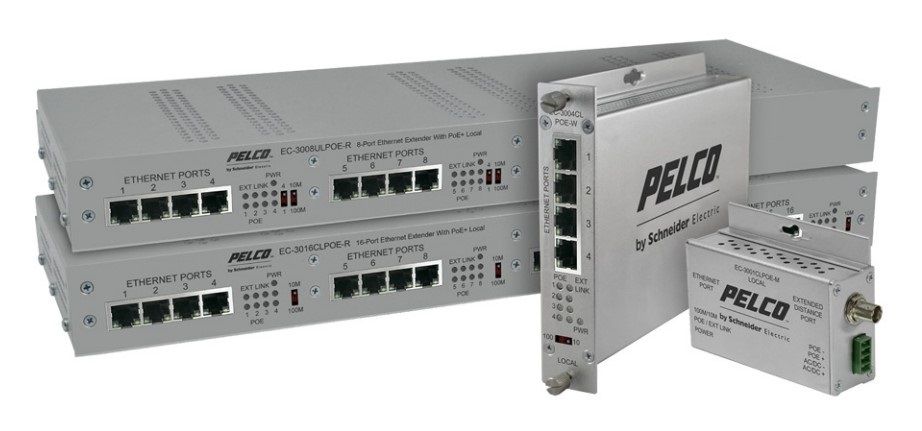

Pelco EC-3008ULPOE-R EthernetConnect Local Eight Port Extender
SKU
EC-3008ULPOE-R
Model No
EC-3008ULPOE-R
$2,608.40
Product Highlights
- Transmits Individual Ethernet Data Channels with Power over Ethernet Plus (PoE+) Power Injection and Pass-Through PoE+ over Standard Cat5/Cat5e/Cat6 UTP Cable or Coaxial Cable
- Extends Ethernet up to 914 m(3,000 ft) at 10 Mbps or 610 m (2,000 ft) at 100 Mbps over Cat5/Cat5e/Cat6 UTP Cable
- Extends Ethernet up to 1,524 m (5,000 ft) at 10 Mbps or 549 m (1,800 ft) at 100 Mbps over Coaxial Cable
- Extended Temperature Operation from - 40° to 75° C ( - 40° to 167° F)
- Extended Pass-Through PoE Meets the IEEE802.3at Standard for Power over Ethernet
Speak to an expert
The Pelco EC-3008ULPOE-R EthernetConnect Local Eight Port Extender is a versatile and robust solution for extending Ethernet signals over existing coaxial or twisted pair cabling. Designed for PoE applications, this device allows for the transmission of IP signals beyond the traditional limits of Ethernet. With its advanced features and compliance with industry standards, the EC-3008ULPOE-R delivers reliable performance while eliminating the need for intermediate power solutions, making it an ideal choice for seamless network connectivity.
Pelco EC-3008ULPOE-R Key Features
- Power over Ethernet Plus (PoE+): Transmits individual Ethernet data channels with power injection, ensuring devices receive both data and power without additional cables.
- Long Distance Extension: Extends Ethernet up to 914 m (3,000 ft) at 10 Mbps and up to 610 m (2,000 ft) at 100 Mbps over Cat5/Cat5e/Cat6 UTP cable, providing flexibility in installation.
- Coaxial Support: Allows for Ethernet extension up to 1,524 m (5,000 ft) at 10 Mbps and 549 m (1,800 ft) at 100 Mbps over coaxial cable, maximizing use of existing infrastructure.
- Temperature Resilience: Operates in extreme conditions from –40° to 75°C (–40° to 167°F), ensuring reliable performance in diverse environments.
- IEEE 802.3at Compliance: Meets the power requirements for PoE, making it compatible with a wide range of powered devices.
- High Bandwidth: Full 10/100 Mbps bandwidth supports multicast, unicast, and jumbo frames, delivering excellent data throughput.
- Consistent Performance: Symmetric bandwidth ensures consistent upload and download speeds with minimal packet loss.
- RFC-2544 Testing: Type tested to validate network bandwidth transmission, ensuring reliability in various applications.
- User-Selectable Rates: Offers options for data rates to optimize bandwidth and transmission distances.
- Protocol Compliance: Complies with major IEEE standards and TCP/IP protocols, ensuring broad compatibility.
- Environmental Compliance: Certified for resistance to mechanical shock, vibration, humidity, and voltage conditions, meeting NEMA TS-1/TS-2 standards.
- Status Indicators: LED indicators provide real-time feedback on the device's operational status.
- Various Configurations: Available in small unit sizes, interchangeable standalone, or 1 RU rack-mounted models, accommodating different setups.
- Made in the USA: Designed and manufactured locally to ensure quality and reliability.
Pelco EC-3008ULPOE-R Detailed Specifications
| Feature | Details |
| Model | Pelco EC-3008ULPOE-R |
| Ethernet Channels | 8 Channels |
| Data Rate | 10/100 Mbps |
| Distance over UTP | Up to 914 m (3,000 ft) at 10 Mbps; 610 m (2,000 ft) at 100 Mbps |
| Distance over Coaxial | Up to 1,524 m (5,000 ft) at 10 Mbps; 549 m (1,800 ft) at 100 Mbps |
| Operating Temperature | –40° to 75°C (–40° to 167°F) |
| Power over Ethernet Standard | IEEE 802.3at |
| Compliance | NEMA TS-1/TS-2, Environmental Testing Certified |
| Dimensions | Varies by model, includes small unit and 1 RU rack mount options |
SKU  | EC-3008ULPOE-R |
|---|---|
| Manufacturer | Pelco |
| NDAA | Compliant |
