Altronix EBRIDGE8E EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch, 25Mbps Per Port, 1U, Requires Compatible Transceiver

SKU
EBRIDGE8E
Altronix EBRIDGE8E EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch, 25Mbps Per Port, 1U, Requires Compatible Transceiver EBRIDGE8E by Altronix
Altronix EBRIDGE8E EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch, 25Mbps Per Port, 1U, Requires Compatible Transceiver EBRIDGE8E by Altronix
Model No
EBRIDGE8E
$1,486.20
Qty:

Product Highlights
    • 8 ports provide 30W full power per port
    • 240W total power
    • IEEE 802.3at (30W), IEEE 802.3af (15.4W)
    • 1Gb uplink (10/100/1000 Mbps)
    • Each port rated at 25Mbps at distances up to 500m

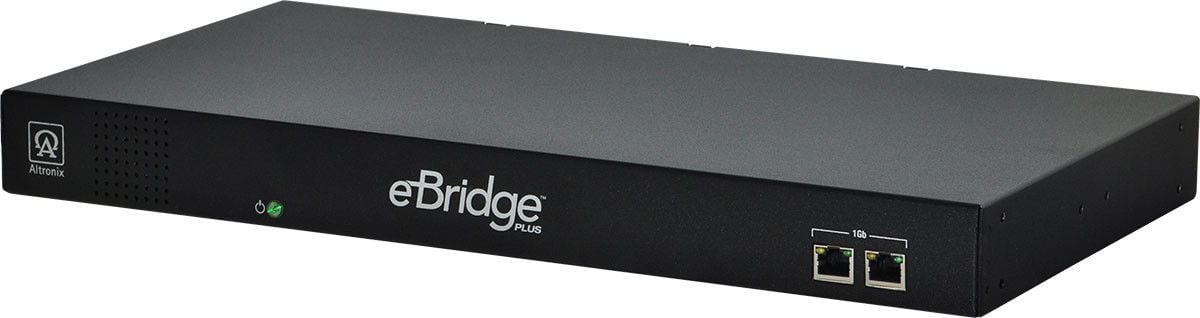

The EBRIDGE8E from Altronix is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control and report power and diagnostics from anywhere.

Features

  • 8 ports provide 30W full power per port
  • 240W total power
  • IEEE 802.3at (30W), IEEE 802.3af (15.4W)
  • 1Gb uplink (10/100/1000 Mbps)
  • Each port rated at 25Mbps at distances up to 500m
  • Built-in IP management allows for remote camera reset and monitoring
  • Email and Windows Dashboard Alert notifications report real-time diagnostics
  • Eliminates the costs and labor associated with installing new network cabling
  • Retrofit digital IP cameras in an analog CCTV installation
  • Works with Megapixel, HD720, HD1080 & VGA (SD) cameras
  • Extends Network link distance in an industrial environment
  • Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
  • Built-in battery charger
  • UL Listed in the U.S. and Canada
  • CE Approved
SKU  EBRIDGE8E
Manufacturer  Altronix
Function Ethernet over Coax, IP over Coax, PoE/PoE+ over Coax
Unit Type Transceiver
Number of Ports 8
PoE Yes
Input Power AC
Remote Management No
There are no related videos.
SKU
EBRIDGE8E
Availability: In stock
