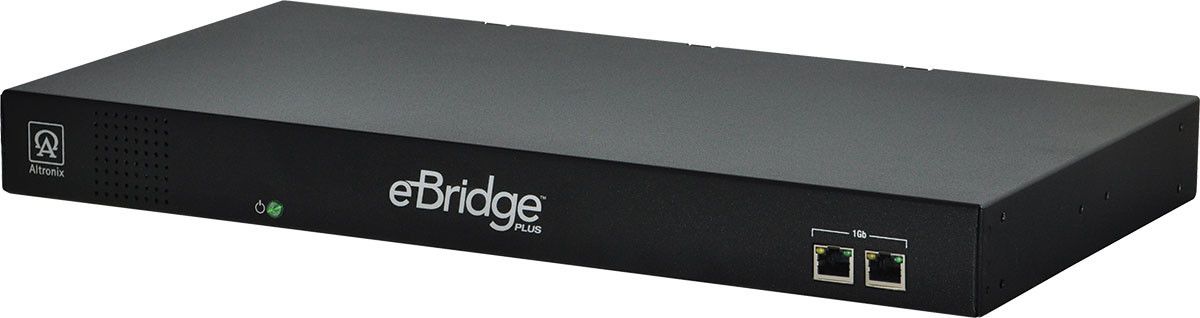

Altronix EBRIDGE800E EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch, 100Mbps Per Port, 1U, Requires Compatible Transceiver

The EBRIDGE800E from Altronix is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control and report power and diagnostics from anywhere.

Altronix EBRIDGE800E Camera Features

• 8-ports: Provide 30W full power per port, ensuring that all connected devices receive adequate power for optimal performance.
• 240W total power: Allows for powering multiple devices simultaneously without overloading, making it ideal for extensive IP camera installations.
• IEEE 802.3at (30W), IEEE 802.3af (15.4W): Supports both standards for flexibility in device compatibility.
• (2) 1Gb uplinks: Offers enhanced connectivity options with 10/100/1000 Mbps speeds, facilitating quick data transfer.
• 100Mbps rated per port: Maintains high-speed data transmission at distances up to 300m, optimizing video quality.
• Built-in IP management: Allows for remote camera reset and monitoring, providing convenience and ease of use.
• Email and Windows Dashboard Alerts: Provides real-time diagnostics, ensuring timely updates on system status.
• Cost-effective solution: Eliminates the need for new network cabling, saving both costs and installation labor.
• Compatible with various cameras: Supports Megapixel, HD720, HD1080 & VGA (SD) cameras, making it versatile for different applications.
• Extended network link distance: Suitable for use in an industrial environment, enhancing connectivity options.
• Upgrade capability: Transforms CCTV coax installations into a digital network, making it perfect for Retail, Casinos, Airports, Schools, and Hospitals.
• Integral battery charger: Provides backup power for essential operations during outages.
• UL Listed: Certified for safety in the U.S. and Canada, ensuring reliable performance.
• CE Approved: Meets European health, safety, and environmental protection standards.

Altronix EBRIDGE800E Detailed Specifications
