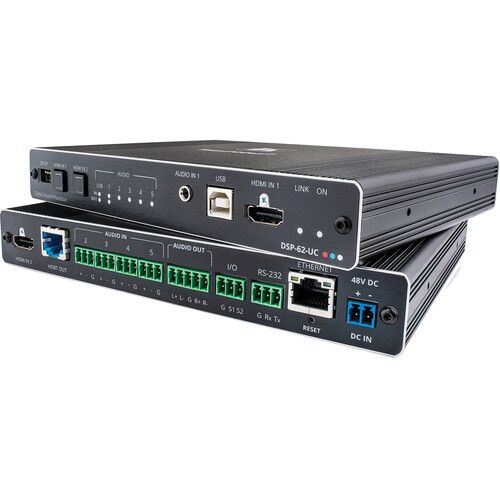

Kramer DSP-62-UC 6x2 PoE Audio Matrix DSP with HDMI Switcher, AEC & HDBaseT
SKU
DSP-62-UC
Model No
DSP-62-UC
$1,160.00
Product Highlights
- Intuitive and Comprehensive Configuration and Control - Via a powerful, user-friendly graphic interface, set volume (gain and attenuation) and DSP per input; execute routing and select line in, mic in, phantom power or line out on each port; configure master level and more. Control signal routing, volume and other basic settings using API commands via RS-232 communication transmitted by a PC, touch screen system or other serial controller
- Audio De-embedding - De-embeds the audio signal from the HDMI input for routing to any of the outputs
- Programmable - Supports up to 10 global presets plus 10 mixer snapshot presets
- Easy, Cost-Effective Maintenance - LED indicators for main power, line in/out, mic in, clipping, and HDMI input selection, enable easy local maintenance and troubleshooting. Local firmware upgrade via the USB type-B port ensures lasting, field-proven deployment
- Easy Installation - Compact Mega TOOLS® fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter
Speak to an expert
The Kramer DSP-62-UC is a professional-grade 6x2 audio matrix switcher designed to deliver exceptional audio quality and versatility for a range of applications. With features such as multi-channel DSP, Acoustic Echo Cancellation (AEC), HDMI de-embedding, and easy USB audio connectivity, it simplifies audio routing while ensuring high fidelity. The user-friendly graphic interface makes configuration and control intuitive, enhancing overall system performance.
Kramer DSP-62-UC Audio Matrix Features
- Advanced Audio Matrix Switcher: Professional-grade signal conversion technology with 32-bit DAC architecture, offering superior dynamic performance and minimized clock jitter for high-quality audio.
- Wide Range of I/O Formats: Supports 2 HDMI inputs, 1 unbalanced & 4 balanced analog inputs, and multiple outputs, providing flexibility for various audio setups.
- Reliable PoE Powering: Accepts Power over Ethernet, enabling easy installation without additional power sources.
- Multi-Channel Processing: Allows processing of multiple signals simultaneously, optimizing audio performance in real-time.
- Teleconference Optimized: Equipped with AEC to eliminate echo during calls, ensuring clear communication.
- Auto & Manual Switching: Offers flexible switching options for HDMI sources, adapting to user needs for convenience.
- Intuitive Configuration and Control: Comprehensive graphic interface for easy user adjustments, combined with API command support for advanced control.
- Audio De-embedding: Enables separate routing of audio signals from HDMI inputs for enhanced flexibility.
- Programmable: Supports global presets and mixer snapshots for quick access to preferred settings.
- Easy Maintenance: LED indicators and local firmware upgrades simplify troubleshooting and ensure ongoing reliability.
- Easy Installation: Compact design with versatile mounting options for efficient deployment in various environments.
Kramer DSP-62-UC Detailed Specifications
| Model | DSP-62-UC |
| Inputs | 2 HDMI, 1 unbalanced audio, 4 balanced audio |
| Outputs | 2 balanced audio, 1 HDBaseT, 1 USB audio |
| Power | PoE, optional mains adapter |
| Audio Processing | Multi-channel DSP with AEC |
| Switching Method | Auto or manual based on priority or connection status |
| Configuration Interface | User-friendly graphic interface |
| Firmware Upgrade | USB type-B port |
| Dimensions | Compact for surface or 1U rack mounting |
| Weight | Lightweight for easy installation |
SKU  | DSP-62-UC |
|---|---|
| Manufacturer | Kramer |
| Video Input | 2 |
| Video Output | 1 |
