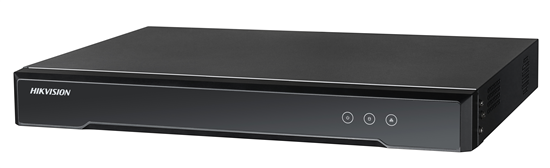

Hikvision DS-6716HUHI-K 16-Channel Video Encoder

SKU
DS-6716HUHI-K
Hikvision DS-6716HUHI-K 16-Channel Video Encoder DS-6716HUHI-K by Hikvision Hikvision DS-6716HUHI-K 16-Channel Video Encoder DS-6716HUHI-K by Hikvision
Hikvision DS-6716HUHI-K 16-Channel Video Encoder DS-6716HUHI-K by Hikvision
Model No
DS-6716HUHI-K
$949.95
Qty:
Product Highlights
    • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
    • Up to 8 MP HDTVI video input and live view
    • Long distance transmission over UTP and coaxial cable
    • Full channel recording at up to 8 MP resolution

The DS-6716HUHI-K from Hikvision is a 4-Channel Video Encoder.

Features

    Video Input and Transmission

    • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
    • Up to 8 MP HDTVI video input and live view
    • Long distance transmission over UTP and coaxial cable

    Compression and Recording

    • H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
    • Full channel recording at up to 8 MP resolution

    Storage and Playback

    • 1 SATA interface for DS-6704HUHI-K, and 2 SATA interfaces for DS-6708/6716HUHI-K (up to 8 TB capacity per HDD)
    • Searching and playing back record files by camera number, recording type, start time, end time, etc.

    Smart Function

    • Supports line crossing detection, intrusion detection, sudden scene change detection, and audio exception detection

    Network & Ethernet Access

    • DDNS (Dynamic Domain Name System) for easy network management
    • 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface (DS-6708HUHI-K and DS-6716HUHI-K)
SKU  DS-6716HUHI-K
Manufacturer  Hikvision
No Of Channels  16 Channel
Audio Inputs   4-Channel Line Input
Resolution   3264 X 2448
Compression Method   H.264+, H.265, H.265+, H.264
Protocols  DDNS, DHCP, DNS, HTTPS, iSCSI, NFS, NTP, ONVIF profile S, PPPoE, SADP, SMTP, TCP/IP, UPnP™
COM Ports  RS-232, RS-485
connector VGA , RCA
Frame rate  8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Ethernet 1, RJ45 10M/100M/1000M
Operating System   -10 ºC to +55 ºC (+14 ºF to +131 ºF)
