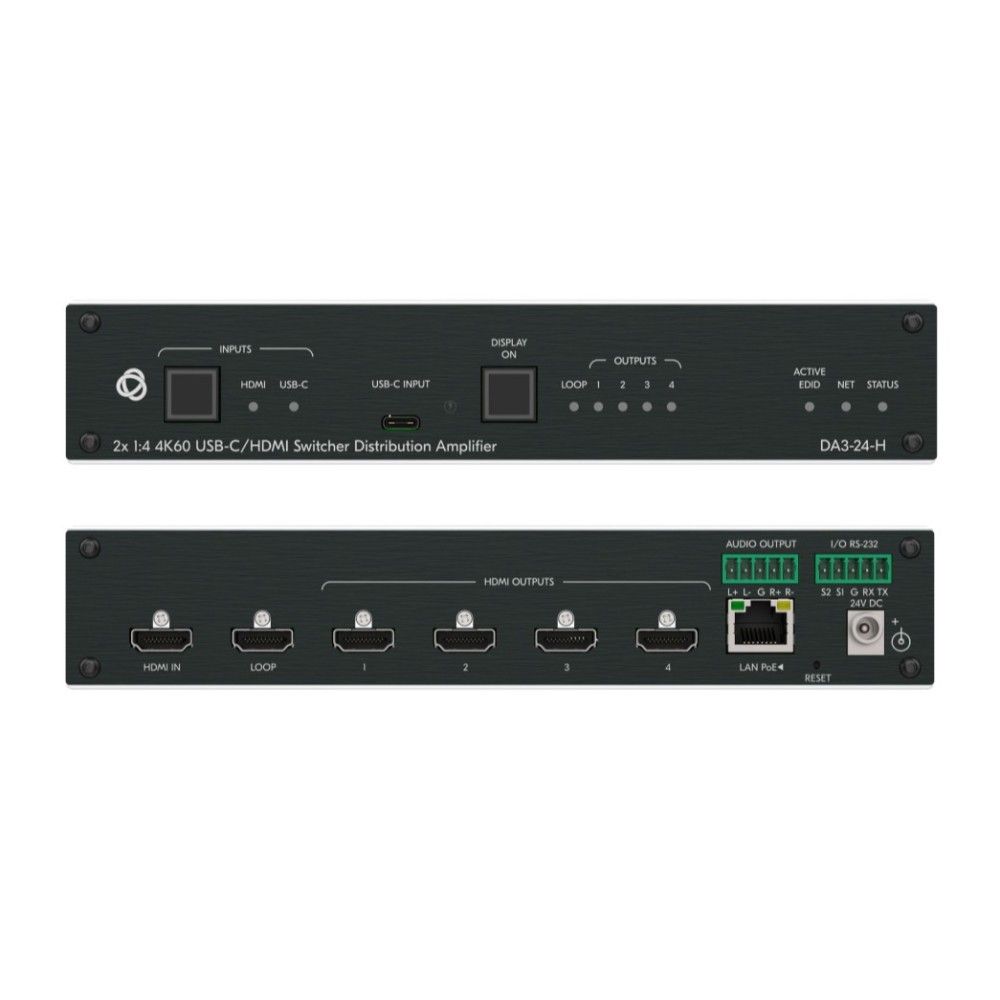

Kramer DA3-24-H 2x1:4 4K60 USB-C/HDMI Switcher Distribution Amplifier

Kramer DA3−24−H Premium 2x1:4 Switcher and Distribution Amplifier

DA3−24−H is a premium 2x1:4 switcher and distribution amplifier for up to 4K HDR, video signals that comply with HDCP 2.2 content protection standard. The unit switches between one of two inputs HDMI or USB−C, equalizes and re−clocks the selected signal and distributes it to four identical outputs.

Features

• Max. Resolution: 4K@60Hz (4:4:4) ensures high-quality video output for professional applications.
• Intelligent EDID Handling: Use connected display EDID or default EDID with EDID lock and RGB–force options for reliable HDMI source and display compatibility.
• Force RGB: Improve picture quality by forcing native delivery of the RGB color format in situations where YCbCr is lacking.
• Selectable HDCP Authorization: Control the HDCP or non–HDCP input delivery, allowing for protection–free content presentation.
• Sophisticated CEC Mediator: Offers flexible routing options for enhanced control over connected devices.
• Analog Audio Output: De–embedded audio from the HDMI/USB–C input signal for sound integration.
• RS–232 Port: Configurable to control external devices, enhancing system integration.
• Easy Installation: Compact 1’ enclosure suitable for over–ceiling or side–by–side rack mounting for convenience.

Detailed Specifications for Kramer DA3−24−H
