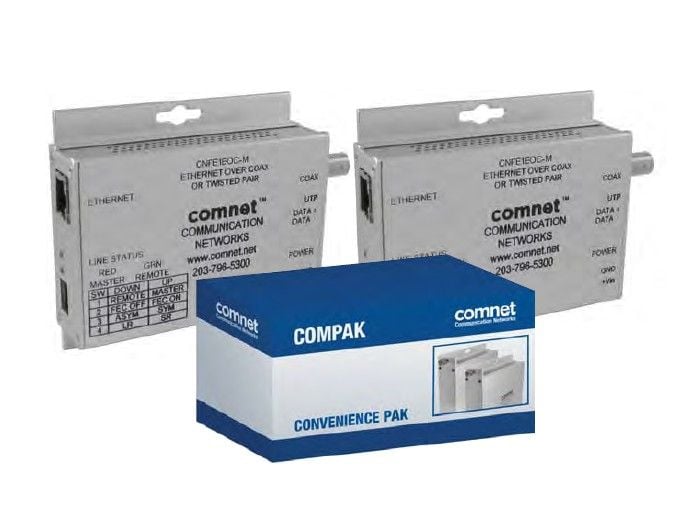

Comnet COMPAK1EOC Ethernet Over Twisted Pair or Coaxial Cable

The Comnet™ COMPAK1EOC offers a cutting-edge solution for transmitting Ethernet over existing twisted pair or coaxial cables. This advanced modem set achieves data rates of up to 90 Mbps, enabling the efficient use of legacy wiring while minimizing costs associated with new installations. With automatic adjustments based on cable quality and distance, LED indicators for real-time monitoring, and user-configurable settings, the COMPAK1EOC is engineered for flexibility and performance in diverse networking environments.

Comnet COMPAK1EOC Key Features

• Transmission Distance: Supports distances of up to 10,000 ft (3 km) over twisted copper and 1500 ft (457 m) over coaxial cable, allowing flexibility in installation.
• High Data Rate: Achieves symmetric line rates of over 91 Mbps, providing a robust network experience.
• Automatic Rate Adjustment: Automatically selects the fastest possible data rate based on cable quality and transmission distance, optimizing performance.
• User-Configurable Options: Features settings for master/remote configuration, forward error correction, and data rate selection, enhancing versatility for various applications.
• IEEE 802.3 Compliance: Equipped with a 10/100 BASE-T/TX Ethernet port with automatic MDI/MDI-X crossover, ensuring compatibility with existing networks.
• Connection Options: Provides screw terminals for twisted copper circuits and a BNC connector for coaxial cable, making installation straightforward.
• Compact Design: Designed for stand-alone mounting, ideal for installations where space is limited, without sacrificing performance.

Comnet COMPAK1EOC Specifications
