Comnet CNFE2MCPOE ComFit 10/100 Mbps Ethernet Media Converter with PoE

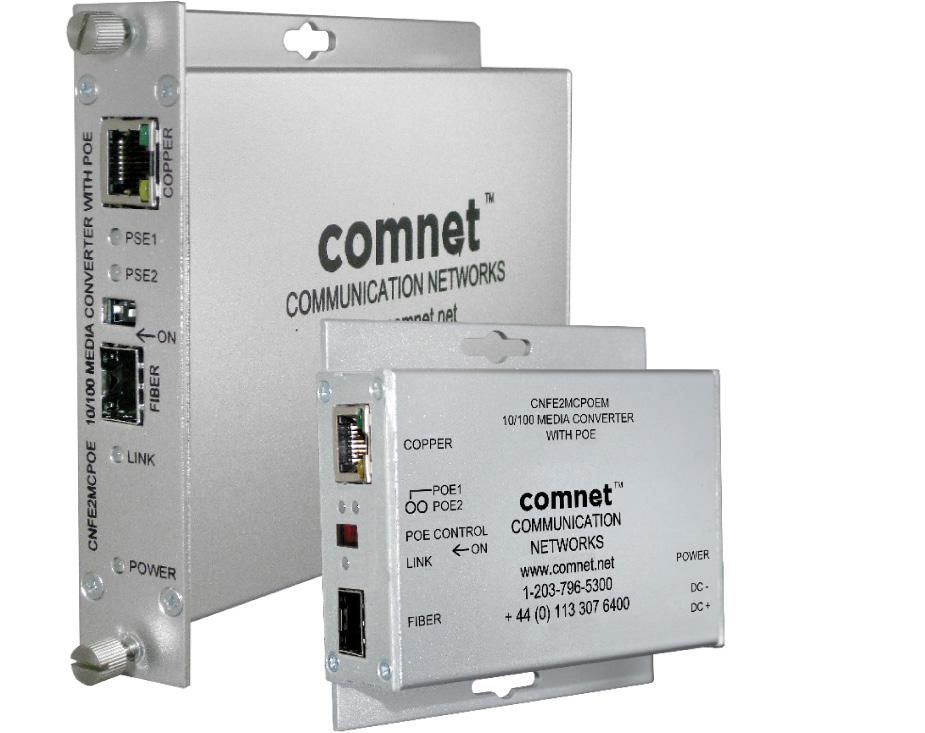

The ComNet™ CNFE2MCPOE Ethernet media converter offers seamless transmission of 10/100 Mbps data over optical fiber, with the ability to utilize interchangeable SFP modules for customized fiber connections. With support for Power over Ethernet (PoE) delivering up to 30 Watts at 48VDC, this device ensures robust performance and easy implementation in various conditions. Ideal for environmental challenges, it operates without manual adjustments and provides comprehensive surge protection.

ComNet CNFE2MCPOE Media Converter Features

• Ethernet Speed: Supports 10/100 Mbps Ethernet, allowing flexibility and compatibility with various networks.
• Auto-Negotiation: The electrical port automatically adjusts to 10 Mbps or 100 Mbps rates for full or half duplex communication, simplifying installation.
• PoE Capability: Delivers up to 30W @ 48VDC to connected devices, reducing the need for extra power supplies.
• Optical Performance: Provides 100 Mbps full duplex on the optical port for high-speed data transmission.
• Automatic Crossover: Features automatic MDI/MDI-X crossover for easy connection without the need for cross-over cables.
• Extended Distance: Achieves transmission distances up to 80 km through optional SFPs, enhancing deployment versatility.
• Environmental Compliance: Meets stringent NEMA TS-1/TS-2 and Caltrans specifications, ensuring durability in tough conditions.
• Interchangeable SFPs: Supports various fiber types, distances, and connectors through separately ordered SFP modules.
• Surge Protection: Voltage transient protection safeguards against power surges, ensuring reliable operation.
• No Configuration Needed: No in-field optical adjustments required, facilitating hassle-free setup.
• LED Indicators: Displays status indicators for easy monitoring and troubleshooting.
• Compliance: Fully compliant with IEEE 802.3 standards, ensuring compatibility and reliability.
