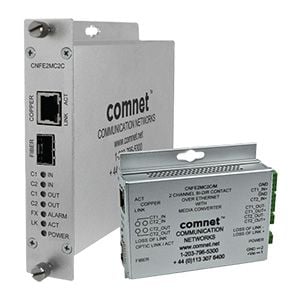

Comnet CNFE2MC2C/M 10/100Mbps Ethernet Electrical to Optical Media Converter with Contact Closures

The Comnet CNFE2MC2C/M is a robust Ethernet media converter that efficiently transmits 10/100 Mbps data and supports two bi-directional contact closures over optical fiber. Ideal for various applications, this converter features automatic negotiation for electrical interfaces, ensuring seamless connectivity without manual adjustment. With its environmental resilience and compact design, it's tailored for challenging conditions while fitting neatly into limited spaces.

Comnet CNFE2MC2C/M Key Features

• 10/100 Mbps Ethernet: Offers both 10/100 BASE-T/TX electrical port and 100 BASE-FX optical port for versatile connectivity.
• Two Bi-Directional Contacts: Enhances the functionality by allowing two-way communication.
• Auto-Negotiation: The electrical port supports automatic adjustment for 10 Mbps or 100 Mbps, ensuring optimal data transfer rates.
• Optical Port Performance: Operates at 100 Mbps full duplex for reliable data transmission.
• Automatic MDI/MDI-X Crossover: Simplifies setup by automatically configuring the connection, eliminating the need for crossover cables.
• Extended Distances: Achieves distances up to 80 km with optional SFPs, providing flexibility for fiber type and installation requirements.
• Environmental Compliance: Built to meet rigorous NEMA TS-1/TS-2 and Caltrans specifications, ensuring operation under harsh conditions.
• Voltage Transient Protection: Safeguards against power surges and voltage spikes, ensuring reliability and longevity.
• No In-Field Adjustments Required: Streamlines installation with factory-set configurations for ease of use.
• LED Indicators: Provides clear visual status updates for monitoring performance.
• IEEE 802.3 Compliant: Ensures compatibility with industry standards for enhanced integration.

Comnet CNFE2MC2C/M Detailed Specifications
