Comnet CNFE2002M1APoE/M Mini PoE 10/100 Mbps Media Converter

SKU
CNFE2002M1APoE/M
Comnet CNFE2002M1APoE/M Mini PoE 10/100 Mbps Media Converter CNFE2002M1APoE/M by Comnet
Comnet CNFE2002M1APoE/M Mini PoE 10/100 Mbps Media Converter CNFE2002M1APoE/M by Comnet
Model No
CNFE2002M1APoE/M
$765.76
Qty:
Product Highlights
    • 30W PoE+ on ports 1 and 2
    • 10/100 Mbps Ethernet
    • 2 × 10/100 BASE-T/TX electrical ports
    • 100 BASE-FX optical port
    • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data

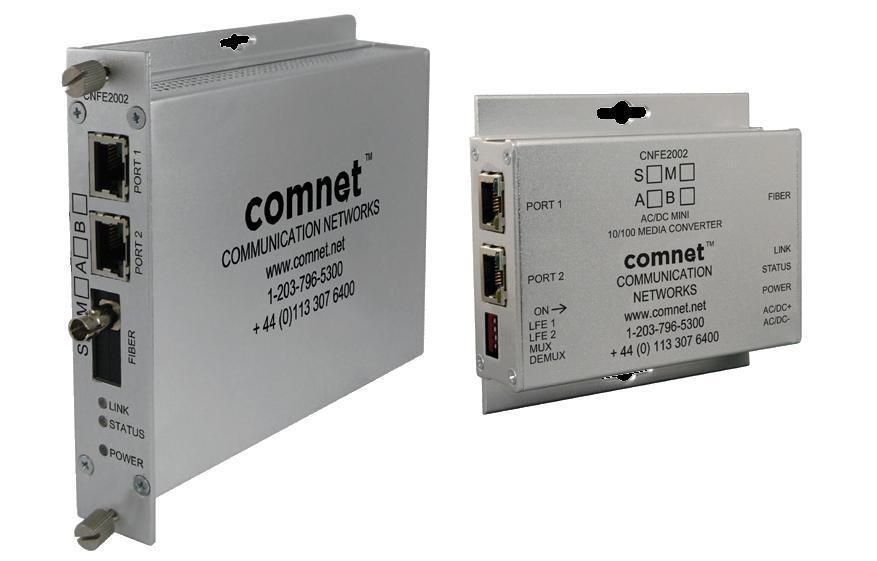

The ComNet Ethernet CNFE2002M1APoE/M media converter is two-channel Ethernet electrical to optical media converter. This auto-negotiating device accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output. This media converter is multimode one fiber ST optical connector. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNFE2002M1APoE/M can be powered by wide range AC or DC input while the CNFE2002M1APoE/M units meet the 802.3at standard and provide 30 watts of PoE+ power.

Features

  • 30W PoE+ on ports 1 and 2
  • 10/100 Mbps Ethernet
  • 2 × 10/100 BASE-T/TX electrical ports
  • 100 BASE-FX optical port
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
  • Optical port supports 100 Mbps full duplex data
  • Automatic MDI/MDI-X crossover
  • Distances up to: 3 km (2 mi) Multimode 20 km (12 mi) Single Mode
  • Link Fault Pass-Through feature detects if either of the copper ports are down and triggers the optical port to switch states to indicate the failure to the head-end
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • ST optical connector
  • 1 fiber design
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • Full size units feature a contact closure output for remote side link failure detection
  • Standard size is hot-swappable rack module
  • Standard size is interchangeable between stand-alone or rack mount use – ComFit
  • IEEE 802.3 compliant
SKU  CNFE2002M1APoE/M
Manufacturer  Comnet
Format Multi-Mode
Data Rate 10/100 Mbps
Connection Type ST
Voltage 48-56VDC
