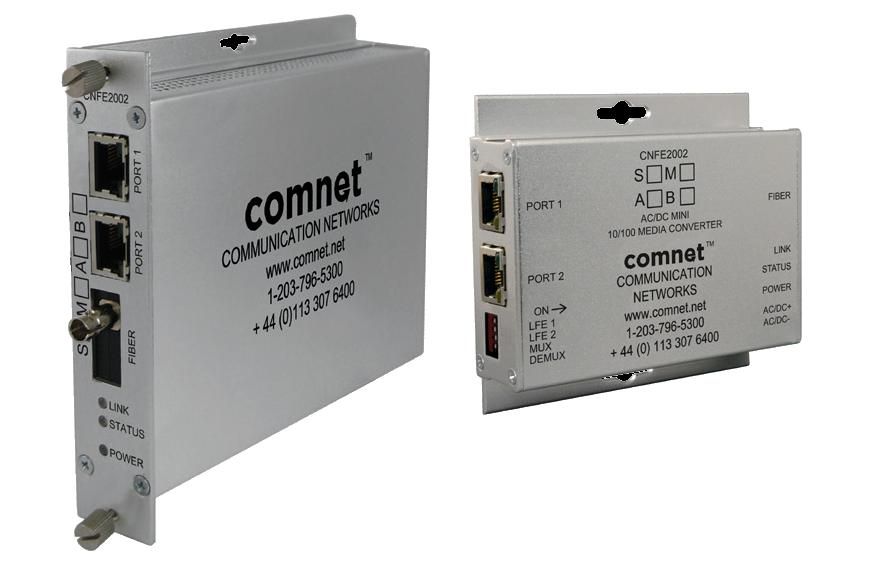

Comnet CNFE2002M1A Standard Mount 10/100 Mbps DC-Only Media Converter

The ComNet Ethernet CNFE2002M1A media converter is a high-performance device designed to convert two 10/100 Mbps electrical inputs into a single 100 Mbps optical output. This media converter features auto-negotiation, multimode fiber connection, and exclusive ComNet technologies for optimal network performance and reliability, making it an essential solution for enhancing your network infrastructure.

ComNet CNFE2002M1A Media Converter Features

• 10/100 Mbps Ethernet: Supports standard Ethernet speeds for flexibility in data transmission.
• 2 - 10/100 BASE-T/TX electrical ports: Enables connection of multiple devices while maintaining high data integrity.
• 100 BASE-FX optical port: Provides high-speed optical network interface with low latency.
• Auto-Negotiation: Electrical ports automatically adjust to 10 or 100 Mbps for enhanced performance.
• Full duplex or half duplex data: Supports both communication modes for versatile network configurations.
• Automatic MDI/MDI-X crossover: Eliminates the need for crossover cables, simplifying network setup.
• Distance support: Capable of covering up to 3 km (2 mi) on multimode and 20 km (12 mi) on single mode, ensuring broad connectivity.
• Link Fault Pass-Through: Detects copper port failures and indicates them on the optical port, improving network reliability.
• Environmental compliance: Meets stringent NEMA TS-1/TS-2 and Caltrans traffic control specifications for tough conditions.
• ST optical connector: Standardized connection type ensures compatibility with existing infrastructure.
• 1 fiber design: Efficient use of fiber resources by combining multiple signals into a single strand.
• Voltage transient protection: Safeguards against power surges to protect valuable networking equipment.
• No in-field optical adjustments: Simplifies installation and maintenance with a plug-and-play design.
• Link failure detection: Provides contact closure output for remote monitoring capabilities.
• Hot-swappable rack module: Standard size allows for easy replacement without disrupting network operations.
• Stand-alone or rack mount use: Flexible configuration options with ComFit compatibility.
• IEEE 802.3 compliant: Ensures interoperability with other compliant networking equipment.

ComNet CNFE2002M1A Media Converter Detailed Specifications
