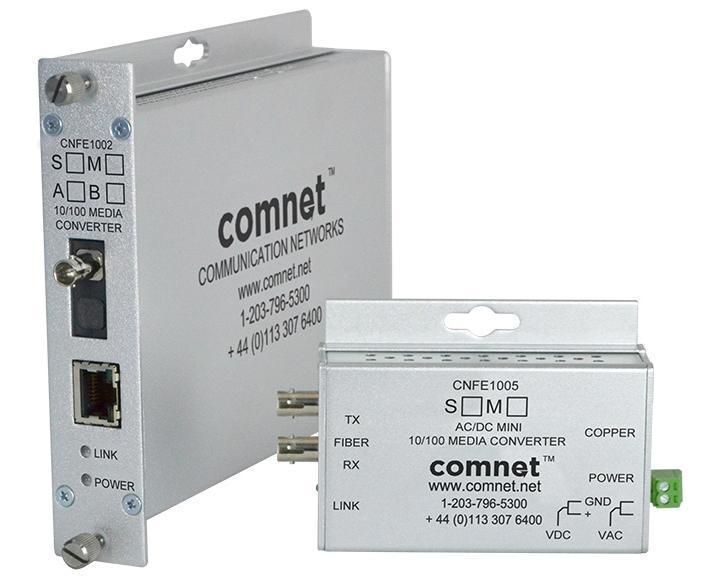

Comnet CNFE1002S1A 10/100 Mbps Standard Mount DC-Only Media Converter

The CNFE1002S1A from Comnet is a Fast Ethernet over Optical Fiber Media Converter (A) designed for seamless integration in your networking solutions. It supports both 10/100 Mbps data transmission and offers robust performance over single mode optical fiber with a range of up to 20 km. With its automatic negotiation and MDI/MDI-X crossover capabilities, it ensures efficient connectivity without the need for manual adjustments. Packaged in a versatile ComFit housing, this media converter can be mounted in various ways, making it a perfect fit for challenging environments.

Comnet CNFE1002S1A - Key Features

• 10/100 BASE-T/TX electrical port: Enables high-speed data transmission over existing copper networks, ensuring reliable connections.
• 100 BASE-FX optical port: Provides a stable, high-bandwidth link for optical communication.
• Electrical port supports Auto-Negotiation: Automatically adjusts to 10 Mbps or 100 Mbps, ensuring flexibility and ease of use.
• Optical port supports 100 Mbps full duplex data: Delivers enhanced data speed and efficiency for demanding applications.
• Automatic MDI/MDI-X crossover: Simplifies network setup by eliminating the need for crossover cables.
• Distances up to: 20 km (12 miles) single mode: Perfect for long-distance applications with reliable performance.
• Transparent to data encoding: Compatible with major data protocols, providing seamless integration into existing networks.
• ST optical connectors: Ensures secure and stable fiber connections.
• 1 fiber design: Optimizes fiber usage while maintaining high-performance standards.
• DC-only powered: Makes installation simpler and reduces power requirements.
• Voltage transient protection: Safeguards all power and signal input/output lines from electrical spikes.
• No in-field optical adjustments required: Reduces installation complexity and maintenance needs.
• LED Indicators: Offers quick status updates for ease of monitoring and troubleshooting.
• Interchangeable between stand-alone or rack mount use - ComFit: Increases installation versatility to fit diverse environments.
• IEEE 802.3 compliant: Ensures compatibility with standard networking equipment and protocols.

Comnet CNFE1002S1A - Detailed Specifications
