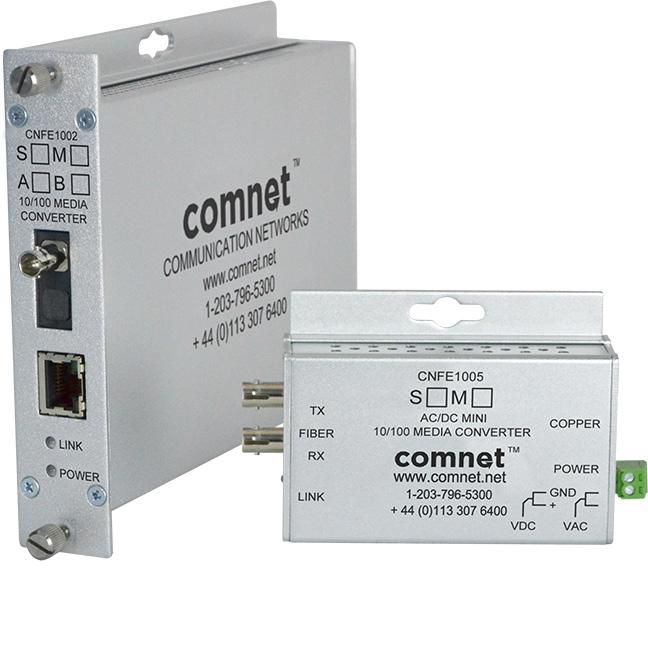

Comnet CNFE1002MAC1B-M 10/100 Mbps Ethernet 1550/1310nm Media Converter
SKU
CNFE1002MAC1B-M
Model No
CNFE1002MAC1B-M
$675.00
Product Highlights
- 10/100 Mbps Ethernet
- Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
- Optical port supports 100 Mbps full duplex data
- Automatic MDI/MDI-X crossover
- Distances up to: 3 km (2 mi) Multimode, 20 km (12 mi) Single Mode
Speak to an expert
The ComNetâ„¢ Ethernet CNFE1002MAC1B-M media converter is a reliable solution for converting 10/100 Mbps Ethernet electrical signals to 100 Mbps optical signals. Designed for seamless integration and ease of use, this media converter supports multimode optical fiber connections and features an array of operational indicators for enhanced usability. Its auto-negotiating capabilities and hardened environmental standards make it a robust choice for various networking applications.
ComNet CNFE1002MAC1B-M Media Converter Features
- 10/100 Mbps Ethernet: Ensures compatibility with diverse network environments, allowing for smooth data transmission.
- Electrical Port with Auto-Negotiation: Supports automatic detection of 10 Mbps or 100 Mbps, and full duplex or half duplex data, enhancing flexibility and performance.
- Optical Port Support: Delivers 100 Mbps full duplex data for efficient optical transmission.
- Automatic MDI/MDI-X Crossover: Simplifies network setup by eliminating the need for crossover cables.
- Distance Capability: Supports multimode distances up to 3 km (2 mi) and single mode up to 20 km (12 mi), ideal for varied installation scenarios.
- Compatibility: Transparent to data encoding and compatible with major data protocols, enhancing versatility.
- Environmental Compliance: Certified by an independent laboratory meeting stringent NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control requirements.
- ST Optical Connector: Utilizes a widely accepted connector type for easy integration.
- 1 Fiber Design: Streamlines installation and reduces complexity in fiber deployment.
- Power Supply: Comes with AC/DC power options providing flexible powering solutions.
- Voltage Transient Protection: Safeguards against power surges, ensuring system reliability.
- No In-Field Adjustments: Simplifies installation with plug-and-play functionality.
- LED Indicators: Provides visual status updates for operational monitoring.
- Hot-Swappable Rack Module: Standard size allows for quick replacements without system downtime.
- Interchangeable Mounting Options: Supports both standalone and rack-mounted configurations with ComFit design.
- IEEE 802.3 Compliance: Guarantees adherence to established network standards, ensuring compatibility with other devices.
ComNet CNFE1002MAC1B-M Detailed Specifications
| Feature | Details |
| Input Type | 10/100 Mbps Ethernet electrical |
| Output Type | 100 Mbps optical |
| Distance Capability | Up to 3 km (2 mi) Multimode, 20 km (12 mi) Single Mode |
| Connector Type | ST optical connector |
| Power Supply | AC/DC powered |
| Environmental Compliance | NEMA TS-1/TS-2 and CALTRANS certified |
| Dimensions | Standard size suitable for wall or rack mounting |
| Indicator Type | LED indicators for operational status |
| Design Features | Hot-swappable and interchangeable mounting options |
| Protection Features | Voltage transient protection on all inputs/outputs |
SKU  | CNFE1002MAC1B-M |
|---|---|
| Manufacturer | Comnet |
| Format | Multi-Mode |
| Data Rate | 10/100 Mbps |
| Connection Type | ST |
| Voltage | 90-264VAC |
There are no related videos.
Write Your Own Review
Manuals & Specifications
CNFE1002MAC1B-M-Specsheet CNFE1002MAC1B-M-Manual
