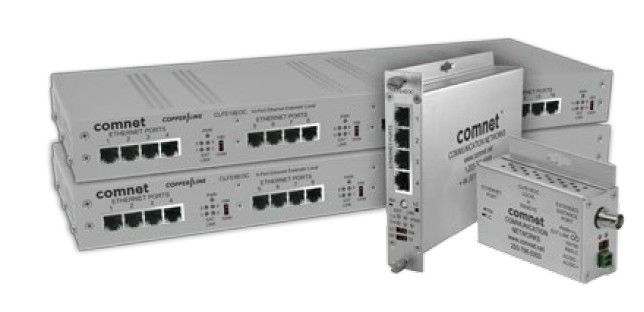

Comnet CLFE8EOU Eight-Channel Ethernet Over UTP Extender With Pass-through PoE
SKU
CLFE8EOU
Model No
CLFE8EOU
$1,543.92
Product Highlights
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extended temperature operation from -40°C to +75°C
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
Speak to an expert
The ComNet™ CopperLine® CLFE8EOU Eight-Channel Ethernet Over UTP Extender offers a robust solution for extending Ethernet connectivity over standard UTP cables, featuring support for up to eight channels of 10/100Mbps Ethernet with Pass-through PoE. Designed for high performance and flexibility, this extender is ideal for long-distance applications, ensuring consistent data transmission while adhering to industry standards.
ComNet CLFE8EOU Unique Features
- Transmits Individual Channels: Allows independent Ethernet data channels with Pass-through PoE, enhancing device connectivity options.
- Long-Distance Extension: Extends Ethernet up to 3,000 feet at 10 Mbps and 2,000 feet at 100 Mbps, enabling versatile installation locations.
- Wide Operating Temperature: Functions in extreme temperatures from -40°C to +75°C, ensuring reliability in harsh environments.
- IEEE 802.3af Compliance: Extended Pass-through PoE meets standard requirements, facilitating power delivery alongside data transmission.
- Full Bandwidth Support: Offers 10/100 Mbps bandwidth, providing sufficient speed for demanding applications.
- Multicast and Jumbo Frame Support: Compatible with various network protocols, enhancing data transmission efficiency.
- Symmetric Bandwidth: Ensures consistent upload and download capabilities with minimal packet loss, optimizing data flow.
- RFC-2544 Compliance: Type tested to meet TCP/IP network bandwidth standards, affirming its efficiency in data handling.
- User-Selectable Data Rate: Allows customization of settings for maximum bandwidth and distance management.
- Complies with IEEE and RFC Standards: Fully adheres to major network protocols for seamless integration.
- Environmental Certification: Tested for compliance with NEMA TS-1/TS-2 standards, assuring durability against various conditions.
- Manufactured in the USA: Guarantees high-quality production standards and support.
- LED Status Indicators: Provides real-time feedback on operating status for ease of monitoring.
- Rack-Mounted Option: Available in 1RU high models, suitable for organized installations.
ComNet CLFE8EOU Detailed Specifications
| Feature | Detail |
| Channels | Eight Channel Ethernet |
| Maximum Distance at 10 Mbps | 3,000 feet (914 m) |
| Maximum Distance at 100 Mbps | 2,000 feet (610 m) |
| Operating Temperature Range | -40°C to +75°C |
| Power Delivered | Pass-through PoE (IEEE 802.3af) |
| Bandwidth | Full 10/100 Mbps |
| Protocol Support | Multicast, Unicast, Jumbo Frame |
| Standards Compliance | Meets IEEE and RFC standards |
| Rack Mountable | 1RU high models available |
| Country of Manufacture | USA |
| Status Indicators | LED indicators for operation |
SKU  | CLFE8EOU |
|---|---|
| Manufacturer | Comnet |
