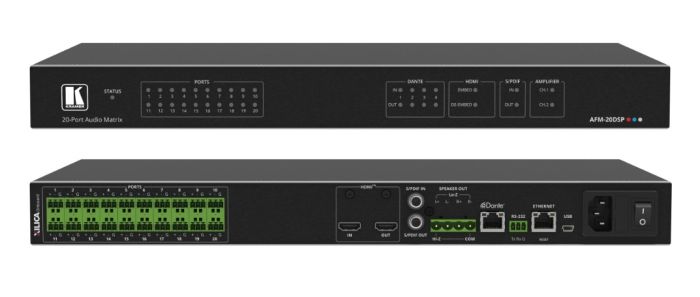

Kramer AFM-20DSP 20-Port Audio Matrix with DSP and Interchangeable Inputs & Outputs
SKU
AFM-20DSP
Model No
AFM-20DSP
$2,724.00
Product Highlights
- Audio De-embedding - De-embeds the audio signal from the HDMI input for routing to any of the outputs or for routing to the loop output
- Programmable - Supports up to 10 global presets per I/O configuration plus 10 mixer snapshot presets
- Easy, Cost-Effective Maintenance - LED indicators for main power, line in/out, mic in, clipping, power amp, Dante sync, and HDMI, enable easy local maintenance and troubleshooting. Local firmware upgrade via the USB type-A port ensures lasting, field-proven deployment
- Easy Installation - 19″ enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100-240V AC power connection
Speak to an expert
The Kramer AFM-20DSP 20-Port Audio Matrix with DSP and Interchangeable Inputs & Outputs is a cutting-edge audio matrix switcher designed for professional use. It features 20 analog ports configurable as inputs or outputs, multi-channel DSP capabilities, and a robust built-in power amplifier. User-friendly interfaces facilitate seamless operation, making it ideal for complex audio setups in various environments.
Kramer AFM-20DSP Key Features
- Advanced Audio Matrix Switcher: Studio-grade signal conversion technology enhances audio fidelity with 32-bit DAC, ensuring superior dynamic performance and minimal distortion.
- Wide Range of I/O Formats: 20 analog ports, 4x4 Dante interface, HDMI, and S/PDIF inputs/outputs allow for versatile connectivity options.
- Multi-Channel Processing: DSP technology allows for simultaneous processing of all signals, optimizing audio delivery.
- Built-in Power Amplifier: Delivers 2x60W @ 8? and 1x120W @ 70V / 100V, providing powerful audio output without the need for external amplifiers.
- Maximum Flexibility: Customizable analog port configurations enable routing of any input to any output across different formats.
- Simple and Powerful Maestro Room Automation: Automate meeting room elements to reduce setup time and minimize errors with an easy-to-use interface.
- Intuitive and Comprehensive Configuration and Control: Graphic interface allows for detailed control of volume and signal routing, enhancing user experience and accessibility.
- Audio De-embedding: Facilitates audio signal extraction from HDMI for further routing to outputs or loops.
- Programmable: Up to 10 global presets per I/O configuration, plus 10 mixer snapshot presets for customizable operation.
- Easy, Cost-Effective Maintenance: LED indicators for troubleshooting and local firmware updates via USB provide efficient serviceability.
- Easy Installation: Designed for 19” rack mounting in a 1U space with included mounting accessories, simplifying setup.
Kramer AFM-20DSP Detailed Specifications
| Feature | Details |
| Model | Kramer AFM-20DSP |
| Audio Ports | 20 configurable analog ports |
| Dante Interface | 4x4 with 2 multicast flows |
| HDMI Support | Embedding and de-embedding capabilities |
| Power Amplifier Output | 2x60W @ 8? and 1x120W @ 70V / 100V |
| DSP Processing | Multi-channel processing for all signals |
| Control Interface | User-friendly graphic interface |
| Configuration Presets | 10 global and 10 mixer snapshot presets |
| Rack Compatibility | 19” rack mountable in 1U space |
| Power Supply | Universal 100-240V AC connection |
| Maintenance Features | LED indicators and USB firmware updates |
SKU  | AFM-20DSP |
|---|---|
| Manufacturer | Kramer |
| Video Input | 2 |
| Video Output | 2 |
