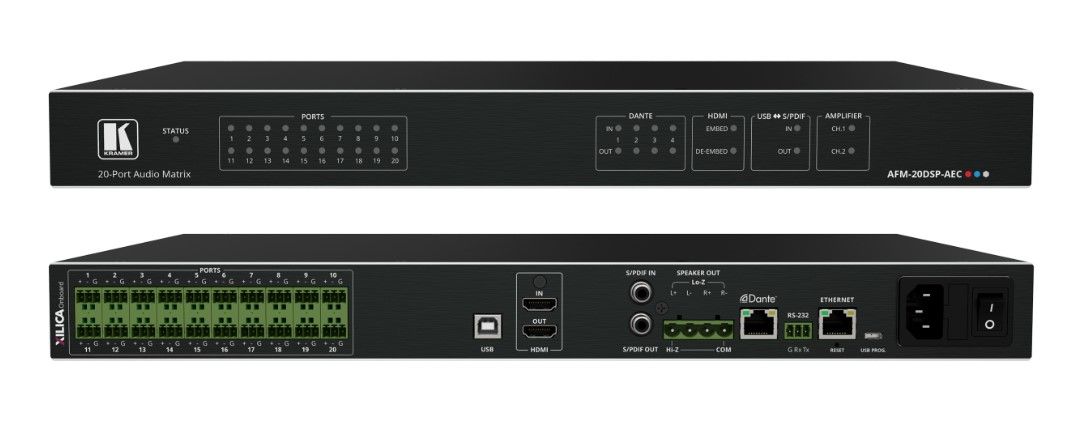

Kramer AFM-20DSP-AEC 20-Port Audio Matrix with DSP, AEC and Interchangeable Inputs & Outputs

The AFM-20DSP-AEC, a member of the Kramer XSPerience family of DSP products, is an advanced, professional audio matrix switcher with 20 analog ports that can be configured as inputs or outputs according to preset I/O configurations. The AFM-20DSP-AEC includes multi-channel DSP, AEC (Acoustic Echo Cancellation), mini USB, built-in 2x60W @ 8? and 1x120W @ 70V / 100V power amplifier, 4x4 Dante interface, HDMI embedding and de-embedding, USB, and S/PDIF. The comprehensive and user-friendly graphic interface makes configuring every detail of your audio system intuitive and easy.

Kramer AFM-20DSP-AEC Audio Matrix Features

• Advanced Audio Matrix Switcher: Professional, studio grade signal conversion technology with 32-bit DAC architecture for excellent audio quality and dynamic performance.
• Wide Range of I/O Formats: 20 analog ports, 4x4 Dante interface, HDMI input/output, USB audio, and S/PDIF ensure versatility in connection options.
• Teleconference Optimized: AEC technology eliminates far-end echoed speech, improving clarity in communication for effective teleconferencing.
• Multi-Channel Processing: DSP capabilities allow simultaneous processing of all input and output signals, enhancing functionality for complex audio setups.
• Built-in Power Amplifier: Powerful 2x60W @ 8? and 1x120W @ 70V/100V amplifier delivers robust audio output.
• Maximum Flexibility: Customize analog port configurations and route any input to any output, providing adaptability to various audio needs.
• Maestro Room Automation: Simplifies automation in meeting rooms, integrating control for lights, shades, and devices with minimal user intervention.
• Intuitive Configuration and Control: User-friendly graphic interface allows easy adjustments to settings and audio parameters.
• Audio De-embedding: Extracts audio from HDMI for flexible routing options across outputs.
• Programmable Presets: Supports 10 global presets per configuration, enhancing ease of use for repeated setups.
• Easy Maintenance: LED indicators provide clear maintenance signals, while firmware upgrades can be performed via USB.
• Easy Installation: 19” rack-mountable design fits in a standard 1U space with included mounting hardware.

Kramer AFM-20DSP-AEC Detailed Specifications
