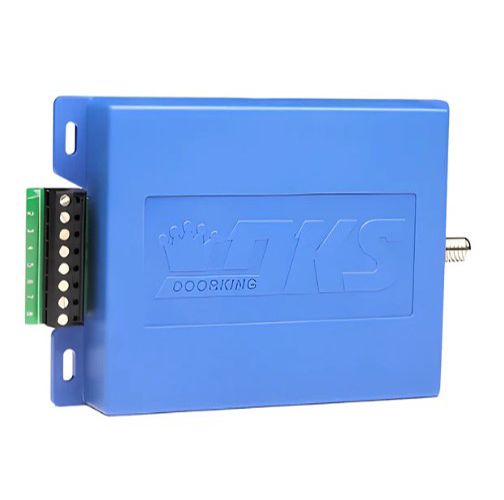

DoorKing 8040-080 RF Gate Receiver

The DoorKing 8040-080 RF Receiver is a versatile, high-security solution designed to enhance access control systems or serve as a powerful stand-alone unit. Compatible with MicroPLUS® and MicroCLIK™ transmitters, this receiver offers reliable access management with up to 5,300 transmitter codes in networked mode and 100 codes in stand-alone mode. Ideal for gated communities, commercial properties, and multi-user facilities, the 8040-080 supports 26, 30, and 31-bit Wiegand output formats, making it an adaptable choice for various access systems. Featuring solar-optimized low power consumption, this receiver is perfect for installations requiring energy efficiency.

DoorKing 8040-080 Key Features

• Broad Transmitter Compatibility: Supports MicroPLUS® transmitters (models 8069, 8070, 8071, 8096) and MicroCLIK™ transmitters (models 8066, 8067, 8068), providing a range of options for different access needs
• High Capacity Options: In networked mode, handles up to 5,300 transmitter codes; in stand-alone mode, manages 100 transmitter codes for flexible access control
• Wiegand Output Flexibility: Compatible with 26, 30, or 31-bit Wiegand output, ensuring seamless integration with DoorKing and other access systems, including DoorKing models 1833, 1835, 1837, and 1838
• Optimized for Solar Power: Features low power draw in sleep mode, consuming only 1 mA, making it an ideal choice for off-grid and solar-powered applications
• Extended Range: Operates within a 50-75 foot range, which can be extended using optional antennas like the Coax Antenna Kit (P/N 1514-073) and Yagi Directional Antenna Kit (P/N 1514-072) for larger properties or challenging environments

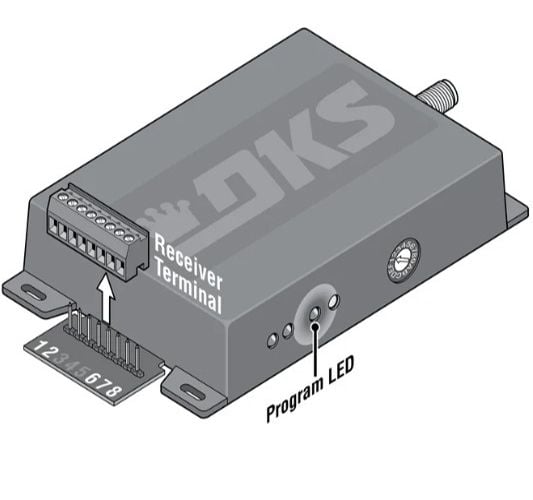

• Reliable, Real-Time Feedback: Equipped with LED indicators for programming and operation, providing clear and immediate system feedback during installation and use

Detailed Specifications for DoorKing 8040-080
