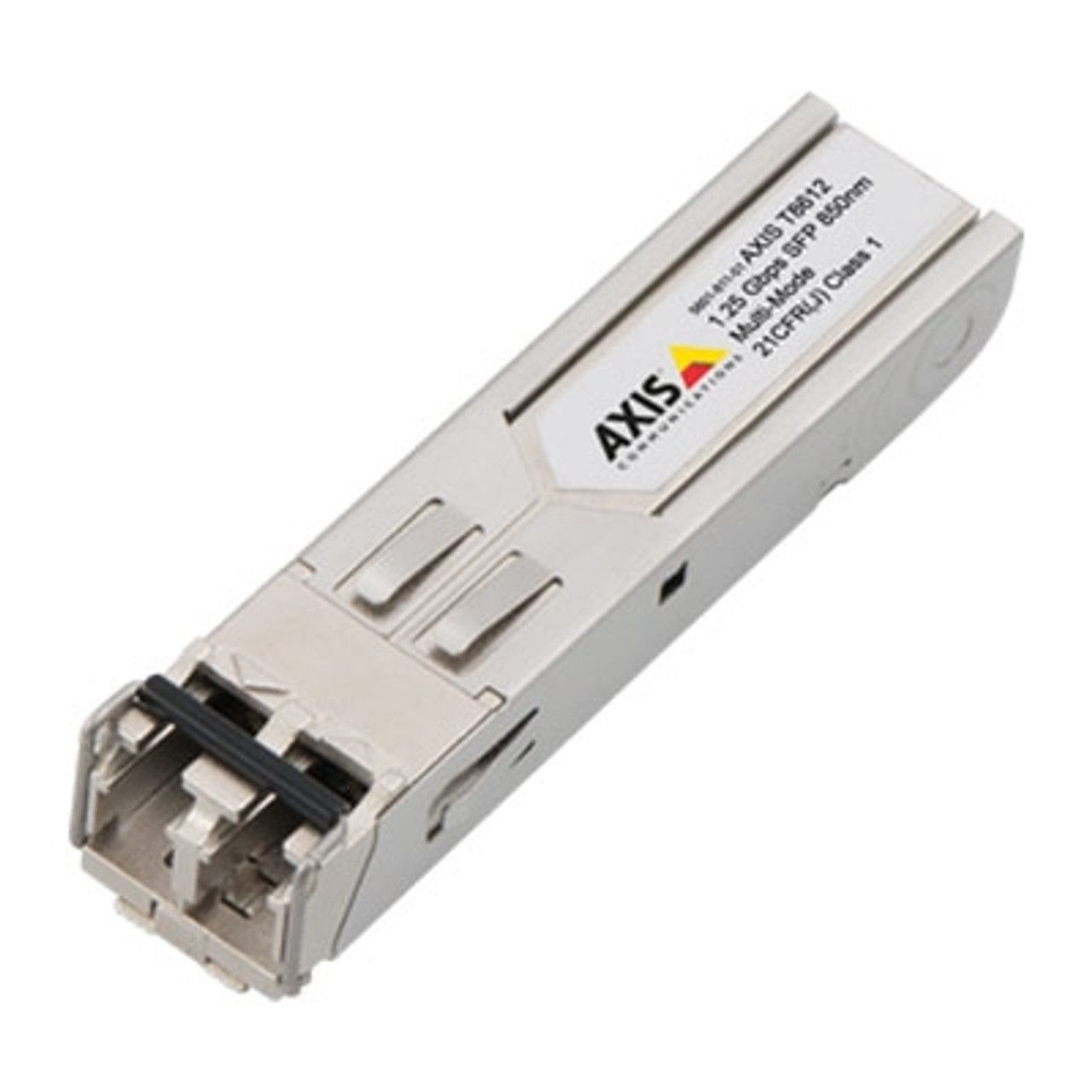

Axis 5801-811 T8612 Multi-mode SFP Module LC.LX

SKU
5801-811
Axis 5801-811 T8612 Multi-mode SFP Module LC.LX 5801-811 by Axis
Axis 5801-811 T8612 Multi-mode SFP Module LC.LX 5801-811 by Axis
Model No
T8612 SFP MODULE LC.SX
$101.68
Qty:

Product Highlights
    • Up to 550 m range
    • Multi-mode fiber
    • Link-loss feature
    • Industrial grade – extended temperature range
    • Complies with SFP MSA

Axis T8612 SFP Module LC.SX is a small form-factor pluggable (SFP) transceiver that supplies network devices, such as a switches or routers, with a fiber optic network connection. It is industrial grade with a wide temperature range (between -40 °C to 65°C), and it includes loss of signal feature that enable network redundancy. Complying with SFP Multisource Agreement (MSA), it is easy to install into compliant ports at any time without interrupting the online operation of the host equipment. Short wavelength (850 nm) VCSEL laser diodes enable data transmission up to 550 m on a multimode 50/125 μm optical fiber. The module is tested and verified with Axis products such as Axis T8516 PoE+ Network Switch.

Features

  • Up to 550 m range
  • Multi-mode fiber
  • Link-loss feature
  • Industrial grade – extended temperature range
  • Complies with SFP MSA
SKU  5801-811
Manufacturer  Axis
Fiber Optic Transmission use  SFP Module
Channels  1 Channel
Connection Type  LC, SFP
Format  Multi-Mode
Mounting Options  Modules
There are no related videos.
SKU
5801-811
Availability: In stock
