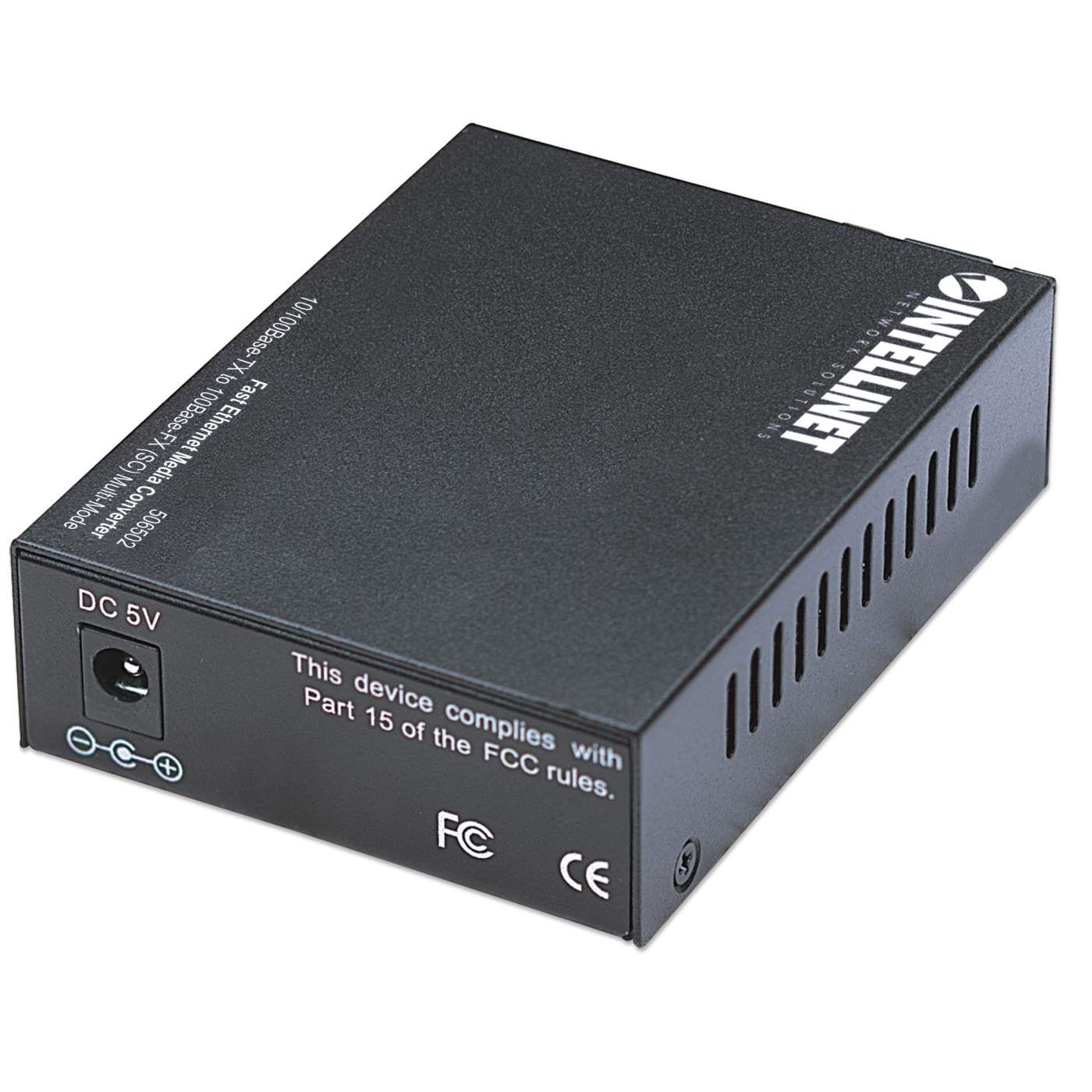

Intellinet 506502 Fast Ethernet Media Converter

The Intellinet Network Solutions Fast Ethernet Media Converter provides a seamless and cost-effective solution for transitioning from copper-based Ethernet to Fiber Ethernet. It maintains network performance while supporting both mediums, making network expansion simple and efficient.

Intellinet 506502 Fast Ethernet Media Converter Features

• Data Transfer Rate: Provides up to 100 Mbps for high-speed data transmission.
• Connectivity Options: One 10/100Base-TX RJ45 port with a maximum distance of 100 m (300 ft) for versatile connection.
• Auto MDI/MDI-X Support: Automatically adjusts configuration for ease of use and compatibility.
• Fiber Port: Features one 100Base-FX multi-mode Fiber SC duplex port for long-distance networking.
• Extended Fiber Distance: Supports distances up to 2 km (1.24 mi) with appropriate cabling, enhancing network scalability.
• Wavelength: Operates at a wavelength of 1310 nm for optimal performance.
• Flow Control: Ensures smooth data transmission by managing data packet flow.
• Status LEDs: Provides clear indicators for power and Link/TX status on both ports for easy monitoring.
• Jumbo Frame Support: Allows for frames up to 1.6 KBytes, improving network efficiency.
• Power Supply: Comes with an external power adapter (5 V DC) for reliable performance.
• Versatile Installation: Can function as a stand-alone device or fit into a 14-slot media converter chassis (model 507356).
• NDAA Compliance: Fully compliant with the National Defense Authorization Act for enhanced security.

Intellinet 506502 Fast Ethernet Media Converter Specifications
