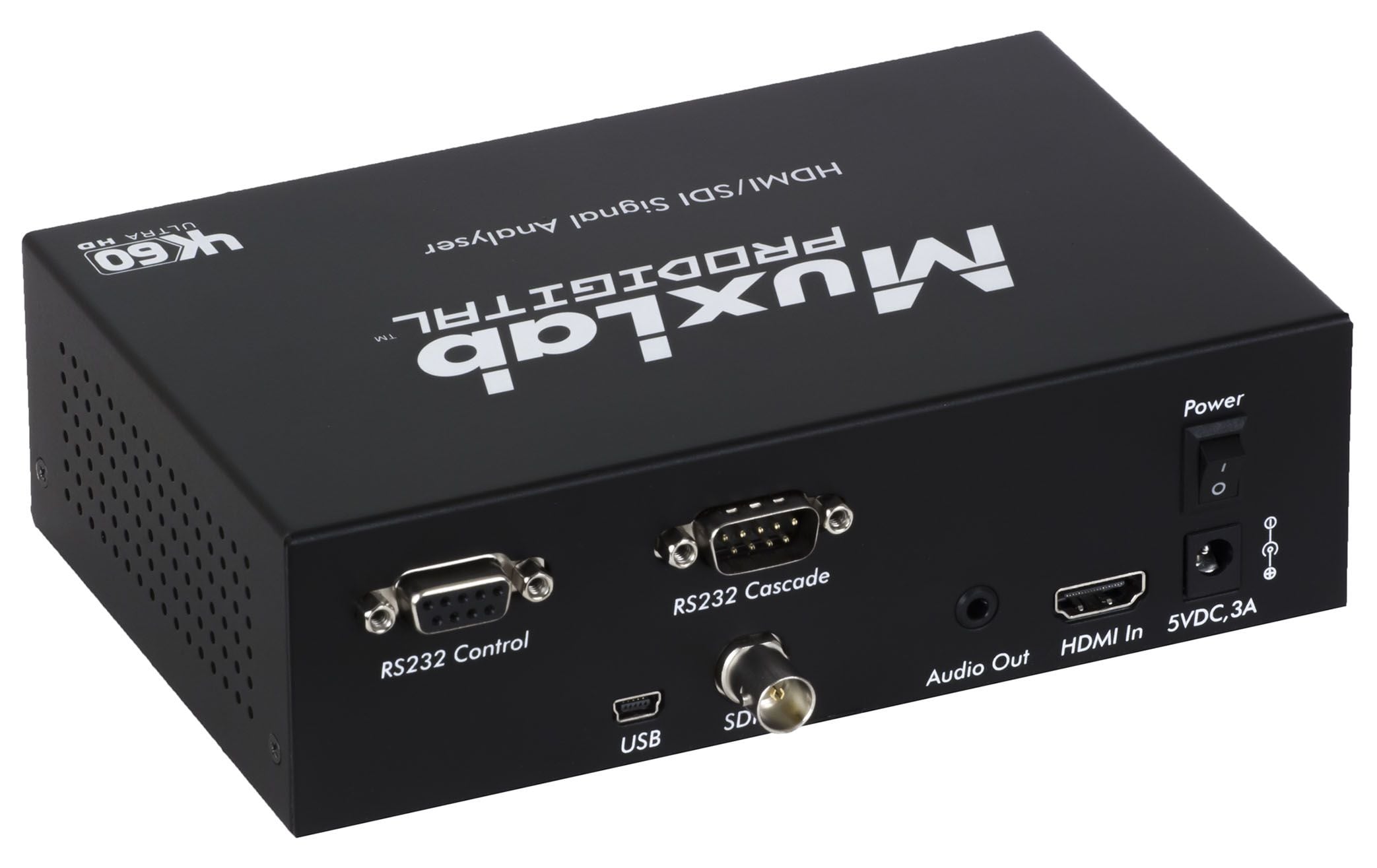

MuxLab 500831 HDMI 2.0/3G-SDI Signal Analyzer

The MuxLab 500831 HDMI 2.0/3G-SDI Signal Analyzer is a state-of-the-art portable testing solution designed to analyze SD/HD/3G SDI and HDMI 2.0 signals, supporting resolutions up to 4K@60Hz (4:4:4). Ideal for AV engineers, developers, integrators, and installers, this versatile tool offers extensive testing capabilities, including cable connectivity/quality tests when paired with the 500830 Signal Generator. With a rechargeable Lithium-ion battery ensuring up to 5 hours of operation, the Signal Analyzer is both convenient and practical for use in any environment.

MuxLab 500831 Signal Analyzer Features

• Portable: The compact design allows for autonomous operation anytime and anywhere, enhancing portability.
• Long Battery Life: The internal rechargeable Lithium-ion battery provides up to 5 hours of use on a single charge, making it reliable for extensive testing sessions.
• High-Resolution Support: Capable of analyzing HDMI signals up to 4K/60 and 3D, as well as 3G-SDI, ensuring compatibility with modern high-definition technology.
• Comprehensive Color Support: Supports various color formats including RGB4:4:4, YUV4:2:2, and YUV4:2:0, along with Deep Color for superior video quality.
• Cable Test Function: Features an HDMI cable test that helps identify and troubleshoot connectivity issues.
• AV Signal Characteristics Display: Clearly displays signal characteristics for easy monitoring of signal quality and errors.
• Intuitive LCD Panel: Equipped with an LCD panel for easy pattern preview and menu navigation.
• Multiple Audio Sample Rates: Supports 7 different audio sample rates, making it versatile for various audio configurations.
• VU Meter Display: Incorporates a VU meter on the LCD for monitoring audio levels visually.
• HDCP Support: Compatible with HDCP 2.2 & 1.4, ensuring secure digital transmission.
• EDID Management: Features built-in EDID management to optimize device compatibility.
• Remote Management: Local or remote management available via RS232 or USB, offering flexible control options.
• RS232 Cascade Support: Allows for RS232 cascade management, making it easy to handle multiple devices.
• Free Software: Comes with free Windows management software for enhanced user experience.

Detailed Specifications for MuxLab 500831 Signal Analyzer
