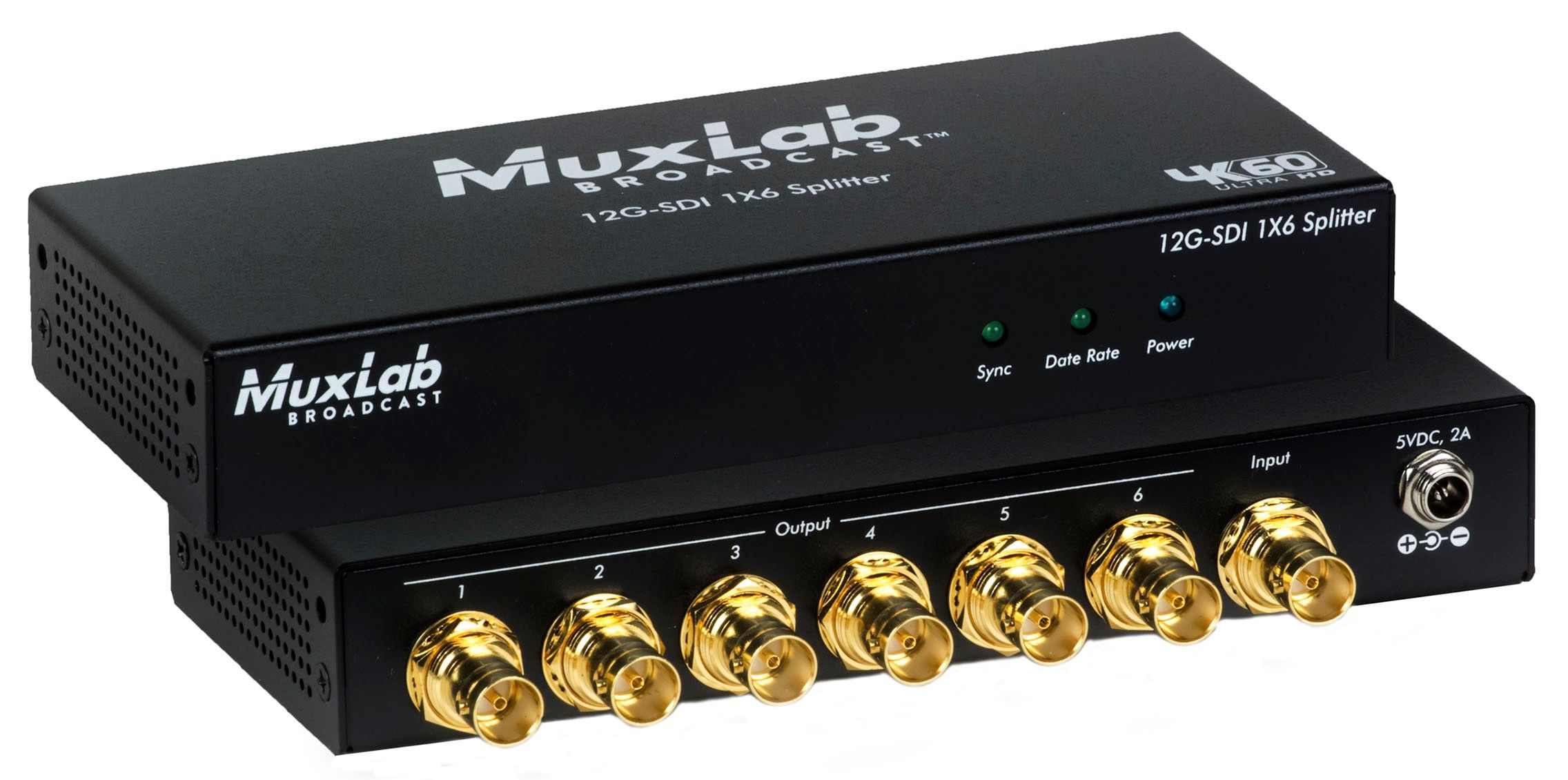

MuxLab 500718 12G-SDI 1x6 Splitter

The 500718 from MuxLab is a 12G-SDI 1x6 Splitter, 4K/60 (500718) allows one (1) 12G/6G/3G/HD/SD-SDI source to be distributed and amplified to up to six (6) 12G/6G/3G/HD/SD-SDI displays. The splitter supports up to 4K (3840 X 2160) video and HD audio, including 480i (SD-SDI), 720p/1080i (HDSDI), 1080p (3G-SDI), 4K/30 (6G-SDI) and 4K/60 (12G-SDI). The device automatically detects the 12G/6G/3G/HD/SD-SDI signal and re-clocks and regenerates the signal at the output for extending distances between source and displays. Additionally, all connectors are on the rear panel for neater cabling.

MuxLab 500718 Splitter Features

• Distribute: Distribute one 12G-SDI source to six displays, expanding your viewing capabilities across multiple screens.
• Resolution Support: Supports up to 4K @ 60Hz including 12G/6G/3G/HD/SD-SDI, ensuring high-quality video output.
• Signal Management: Automatically detects, re-clocks, and regenerates 12G/6G/3G/HD/SD-SDI signals for consistent performance over long distances.
• LED Diagnostics: Features LED diagnostic indicators to help monitor and troubleshoot the device's performance effortlessly.
• Neater Setup: All connectors are on the rear for tidier cabling, reducing clutter and facilitating easier connections.

Detailed Specifications for MuxLab 500718
