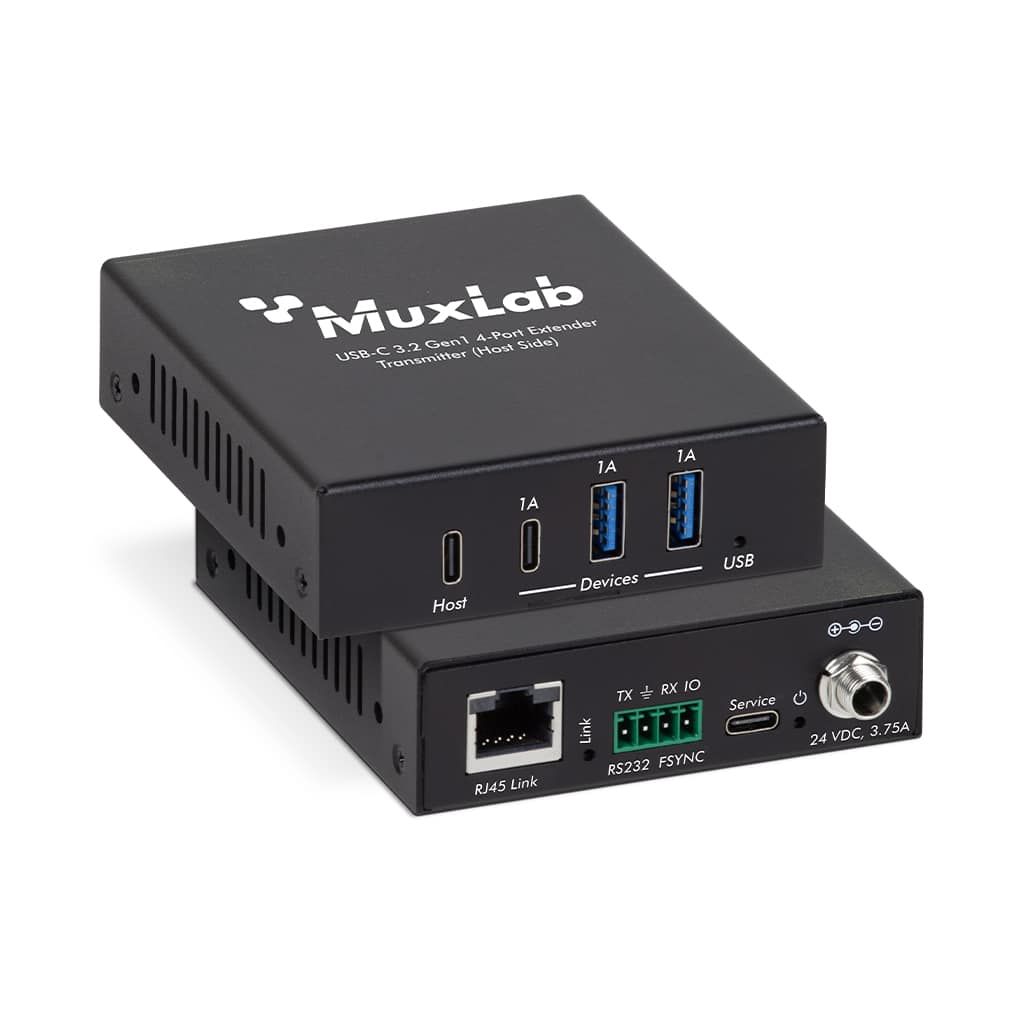

MuxLab 500534 USB-C 3.2 Gen1 4-Port Extender Kit, 100m

The MuxLab USB-C 3.2 Gen1 4-Port Extender Kit (model: 500534) provides exceptional USB 3.2 Gen1 connectivity and extends USB distances up to 100m (328ft) using standard Cat6a cabling. With data transfer rates reaching up to 5Gbps, this kit supports versatile applications ranging from industrial control to digital signage, making it a reliable choice for both professional and personal use. Its plug-and-play functionality ensures easy installation across various operating systems, with additional support for RS-232 and GPIO interfaces for comprehensive usability.

MuxLab 500534 Extender Kit Features

• Extension Distance: Extends USB 3.2 Gen1 connections up to 100m (328ft) over CAT6a cable for flexible installation options.
• Data Transfer Rate: Achieves data rates up to 5Gbps to handle high-speed data requirements seamlessly.
• Backward Compatibility: Fully compatible with USB 2.0 and USB 1.1, ensuring versatility with existing devices.
• Power Support: Provides 5VDC power up to 1.5A and 1A on the Receiver to connect various devices effectively.
• RS-232 Pass-through: Supports RS-232 and FSYNC GPIO connections for integration with industrial cameras.
• Power over Cable: Features bi-directional 24VDC PoC capability to simplify power management.
• Easy Installation: Plug-and-play setup means no drivers or additional configuration is required, making it user-friendly.

Detailed Specifications for MuxLab 500534
