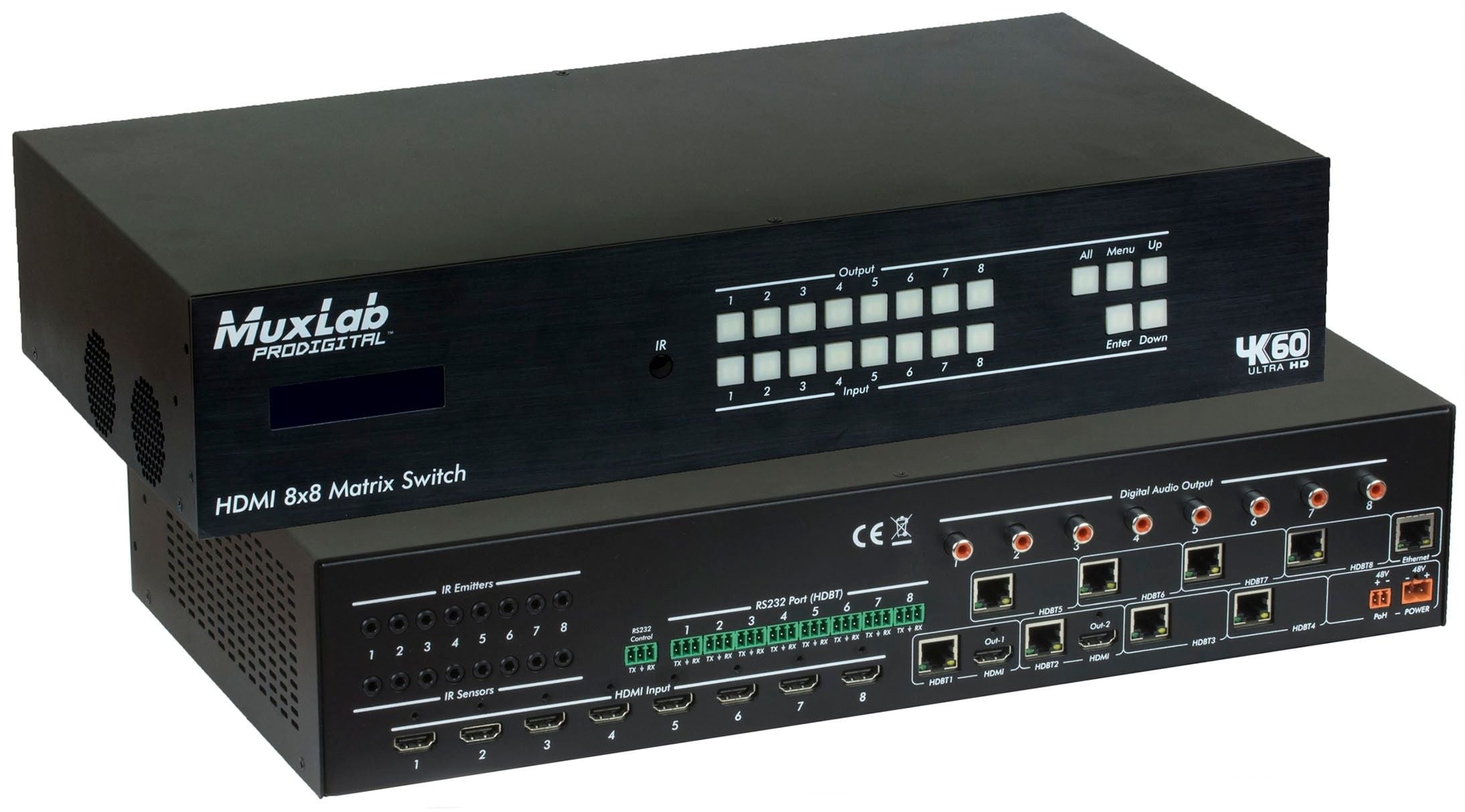

MuxLab 500413 HDMI 8×8 Matrix Switch, HDBT, 4K/60, US

The MuxLab 500413 HDMI 8×8 Matrix Switch, HDBT, 4K/60 is an advanced switching solution that allows seamless connection and distribution of up to eight HDMI sources to eight displays or two additional HDMI displays. With support for 4K video at 60Hz, this matrix switch ensures high-quality performance while offering various control options and compatibility with MuxLab HDBT Receivers for extended distances.

MuxLab 500413 HDMI 8×8 Matrix Switch Features

• 8×8 Matrix Configuration: Connect and distribute 8 HDMI inputs to 8 HDBT outputs as well as 2 local HDMI outputs, providing flexibility for diverse setups.
• 4K/60 Support: Delivers stunning video quality with HDMI 2.0 capabilities, ensuring rich detail and clarity (4K/60 4:2:0) for an optimal viewing experience.
• Extended Distance Performance: HDBT outputs support lengths of up to 70m at 1080p and 40m at 4K via Cat5e/6 cables, allowing for versatile installation options.
• Comprehensive Audio Management: Supports up to 8 audio channels including 2CH, 5.1 Dolby, and DTS formats, enhancing the audio experience for users.
• IR Matrix Support: Control end devices efficiently using the integrated IR matrix for improved management.
• Multiple Control Interfaces: Offers control through front panel buttons, RS232, IR, and LAN for user convenience.
• User-Friendly Interface: Built-in GUI web interface makes setup and management straightforward and intuitive.
• EDID Management: Advanced EDID management capabilities ensure optimal video and audio presentations across connected devices.
• PoH Functionality: Supports Power over HDBaseT (PoH) to power connected HDBT receivers, simplifying the installation.

Detailed Specifications for MuxLab 500413
