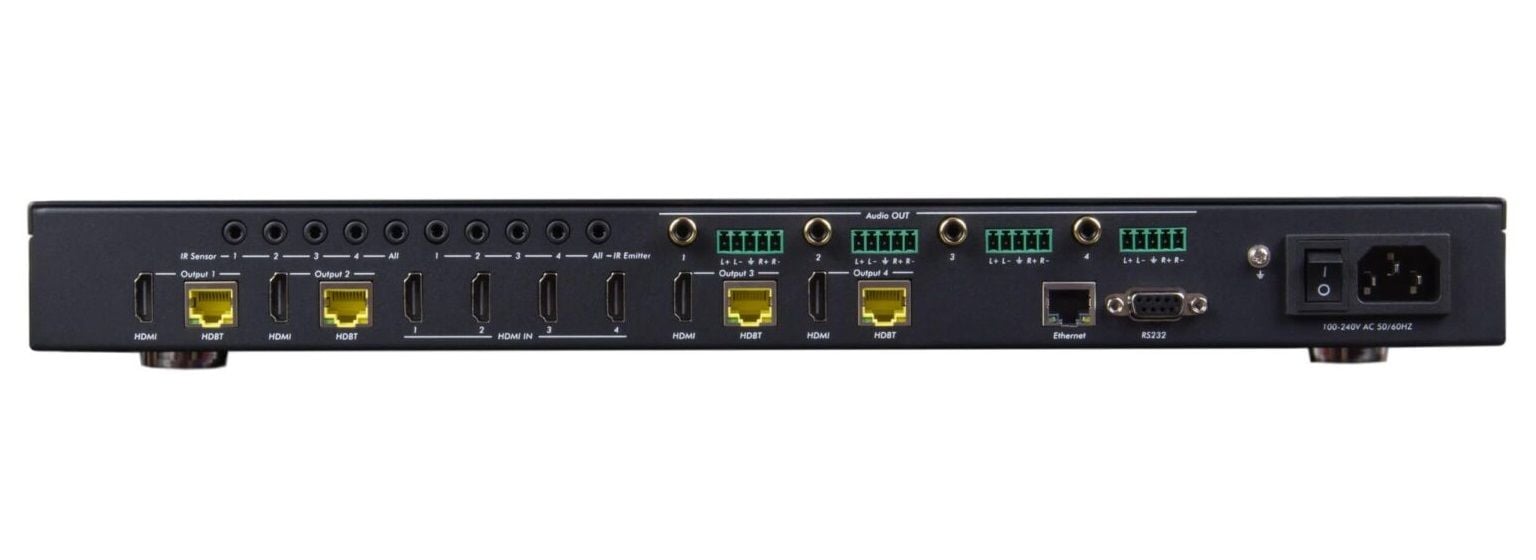

MuxLab 500412-V2 HDMI 4X4 Matrix Switch Kit, HDBT, PoC, 4K/60

The MuxLab HDMI 4X4 Matrix Switch Kit (model: 500412-V2) is an essential tool for efficiently connecting and distributing up to four HDMI sources to four HDMI displays. With its long-distance HDBT capabilities, PoC support, and advanced audio features, this matrix switch is ideal for both commercial and residential AV applications, ensuring seamless integration and high-quality video performance.

Applications of MuxLab HDMI 4X4 Matrix Switch Kit (500412-V2)

• Commercial and residential AV systems: Easily manage multiple devices in various environments.
• Classroom training systems: Enhance learning experiences with clear video from different sources.
• Digital signage: Distribute engaging content to multiple displays for effective advertising.
• Boardroom systems: Facilitate presentations with the ability to switch between various inputs smoothly.
• Collaborative PC systems: Allow multiple users to share and display their content seamlessly.
• Medical information systems: Ensure reliable and high-quality video transmission for precise medical applications.

Key Features

• Supports HDMI 2.0b (4K/60 4:4:4) & HDCP2.2: Ensures compatibility with the latest devices and high-definition content.
• 4 HDBT outputs: Supports distances up to 150m at 1080p and 120m at 4K, providing versatile installation options.
• Includes 4 HDBT Receivers: These are powered by the matrix switch via 24VDC PoC, simplifying setup and reducing wiring needs.
• HDMI audio pass-through: Up to 7.1CH HD audio support enhances audio quality, supporting various formats like LPCM, Dolby TrueHD, and DTS-HD Master Audio.
• 4K to 1080P Down Scaler: Allows for flexibility in display options by scaling video output to suit various screens.
• IR matrix support: Simplifies remote control management of devices, ensuring ease of use.
• Powerful EDID management and CEC control: Ensures smooth communication between devices for optimal performance.
• Built-in GUI web interface: Provides user-friendly access for setup and management of the system from any device.

Detailed Specifications for MuxLab HDMI 4X4 Matrix Switch Kit (500412-V2)
