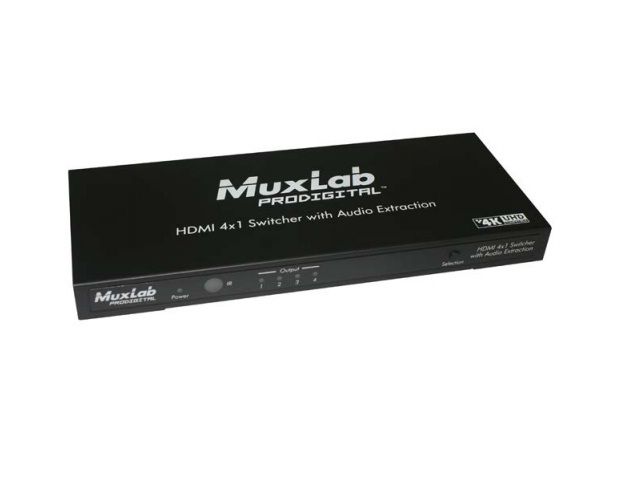

Muxlab 500430 HDMI 4X1 Switcher with Audio Extraction, UHD-4K
SKU
500430
Model No
500430
$139.00
Product Highlights
- Switches between four Ultra HD sources to one Ultra HD display
- Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD
- Supports 12-bit Deep Color, 3D
- Extracts audio to S/PDIF To slink, Coaxial and 3.5mm Stereo Jack
- Extracts LPCM to Analog Audio 3.5mm Stereo Jack
Speak to an expert
The Muxlab 500430 HDMI 4X1 Switcher with Audio Extraction is designed to simplify your multimedia experience by allowing you to connect up to four HDMI sources to a single HDMI display effortlessly. With support for stunning Ultra HD 4K video resolution and advanced audio extraction capabilities, this device enhances your entertainment setup while ensuring high-quality performance and compatibility with various audio formats.
Key Features of Muxlab 500430 HDMI 4X1 Switcher
- Switching Capability: Easily switch between four Ultra HD sources to one Ultra HD display for seamless viewing.
- High Resolution Support: Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD for stunning visual quality.
- Color Depth: Supports 12-bit Deep Color and 3D for richer images and dynamic visuals.
- Audio Extraction: Extracts audio to S/PDIF To slink, Coaxial, and 3.5mm Stereo Jack, allowing for versatile audio setups.
- Analog Audio Support: Extracts LPCM to Analog Audio 3.5mm Stereo Jack for easier compatibility with audio devices.
- Advanced Audio Formats: Supports LPCM 7.1, Dolby® True HD, Dolby Digital® Plus, and DTS-HD Master Audio for an immersive sound experience.
- User-Friendly Operation: Push button allows easy switching between the four HDMI inputs for convenience.
- Remote Control: IR Remote Control included for hassle-free operation from a distance.
Detailed Specifications of Muxlab 500430 HDMI 4X1 Switcher
| Feature | Details |
|---|---|
| Model | Muxlab 500430 |
| Input Ports | 4 HDMI |
| Output Port | 1 HDMI |
| Resolution Support | Up to 4K (3840 x 2160 @ 30Hz), 1080p Full HD |
| Color Depth | 12-bit Deep Color, 3D |
| Audio Extraction | S/PDIF To slink, Coaxial, 3.5mm Stereo Jack |
| Audio Formats Supported | LPCM 7.1, Dolby® True HD, Dolby Digital® Plus, DTS-HD Master Audio |
| Control Method | Push button and IR Remote Control |
| HDCP Compliance | HDCP 1.3 |
| LED Diagnostics | Yes |
| Connector Configuration | All HDMI connectors on rear panel |
SKU  | 500430 |
|---|---|
| Manufacturer | MuxLab |
| Format | Digital |
| In-Outputs | 4 - 1 |
| Video Inputs | HDMI |
| Video outputs | HDMI |
| Mount Options | Stand-Alone |
