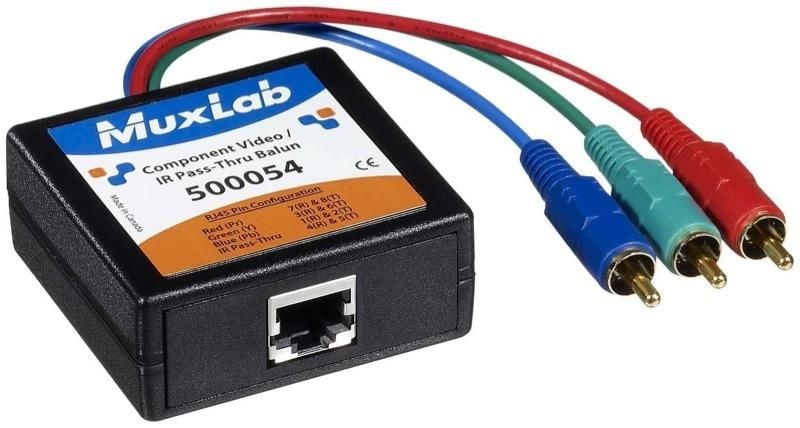

MuxLab 500054 Component Video/IR Pass-Thru Balun, Male
SKU
500054
Model No
500054
$58.50
Product Highlights
- Supports 480i/p, 720p, 1080i/p
- Supports 480i/p up to 1,000 ft (305m) via Cat5
- Supports 720p/1080i/p up to 500 ft (152m) via Cat 5
- Moulded color-coded RCA cable leads
- Supports digital audio on fourth twisted pair
Speak to an expert
The 500054 from MuxLab is a Component Video/IR Pass-Thru Balun, Male. It allows one component video (YPbPr or RGB) signal and one IR emitter signal to be transmitted via one Category 5E/6 twisted pair cable for more cost-efficient cabling. Used in pairs, the Component Video/IR Pass-Thru Balun supports 480i/p, 720p, and 1080i/p video formats for commercial and residential hi-definition (HDTV) video applications.
MuxLab 500054 Component Video/IR Pass-Thru Balun Features
- Supports 480i/p, 720p, 1080i/p: Ensures compatibility with various HD video formats for versatile usage.
- Supports 480i/p up to 1,000 ft (305m) via Cat5: Delivers long-distance video transmission without signal degradation.
- Supports 720p/1080i/p up to 500 ft (152m) via Cat 5: Provides high-definition video quality at extended distances.
- Moulded color-coded RCA cable leads: Simplifies installation and reduces errors during setup.
- Supports digital audio on fourth twisted pair: Allows for enhanced audio transmission alongside video signals.
- Modular shielded RJ45 connector: Promotes reliable connections and reduces interference.
MuxLab 500054 Detailed Specifications
| Product Type | Component Video/IR Pass-Thru Balun |
| Video Format Support | 480i/p, 720p, 1080i/p |
| Transmission Distance | 480i/p up to 1,000 ft (305m), 720p/1080i/p up to 500 ft (152m) |
| Cable Type | Category 5E/6 twisted pair |
| Cable Leads | Moulded color-coded RCA |
| Audio Support | Digital audio on fourth twisted pair |
| Connector Type | Modular shielded RJ45 |
SKU  | 500054 |
|---|---|
| Manufacturer | MuxLab |
| Product Type | Passive Balun |
| Channels | 1 |
| Connection Type | Component, RJ-45, Terminal Block |
| Form | Stand - Alone |
