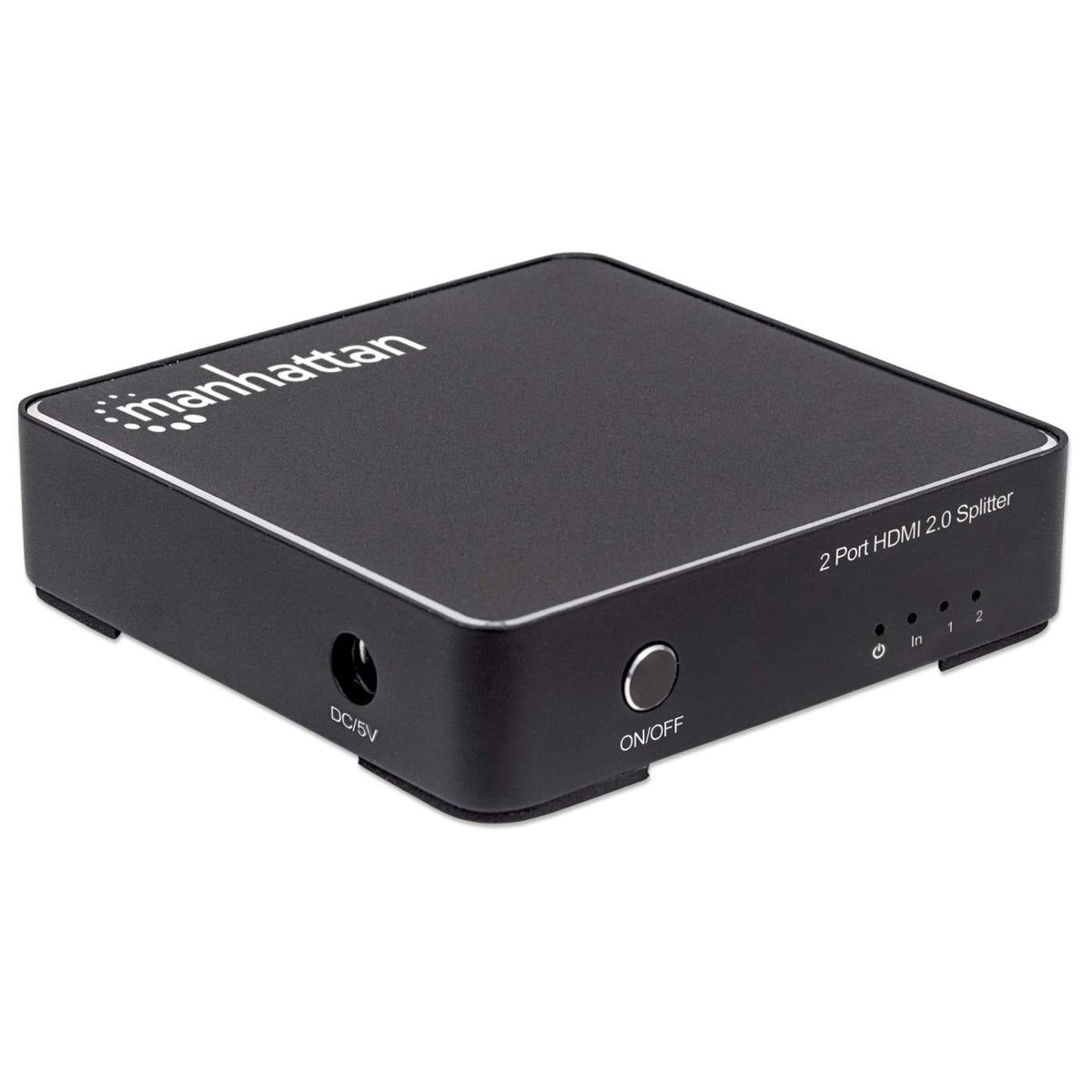

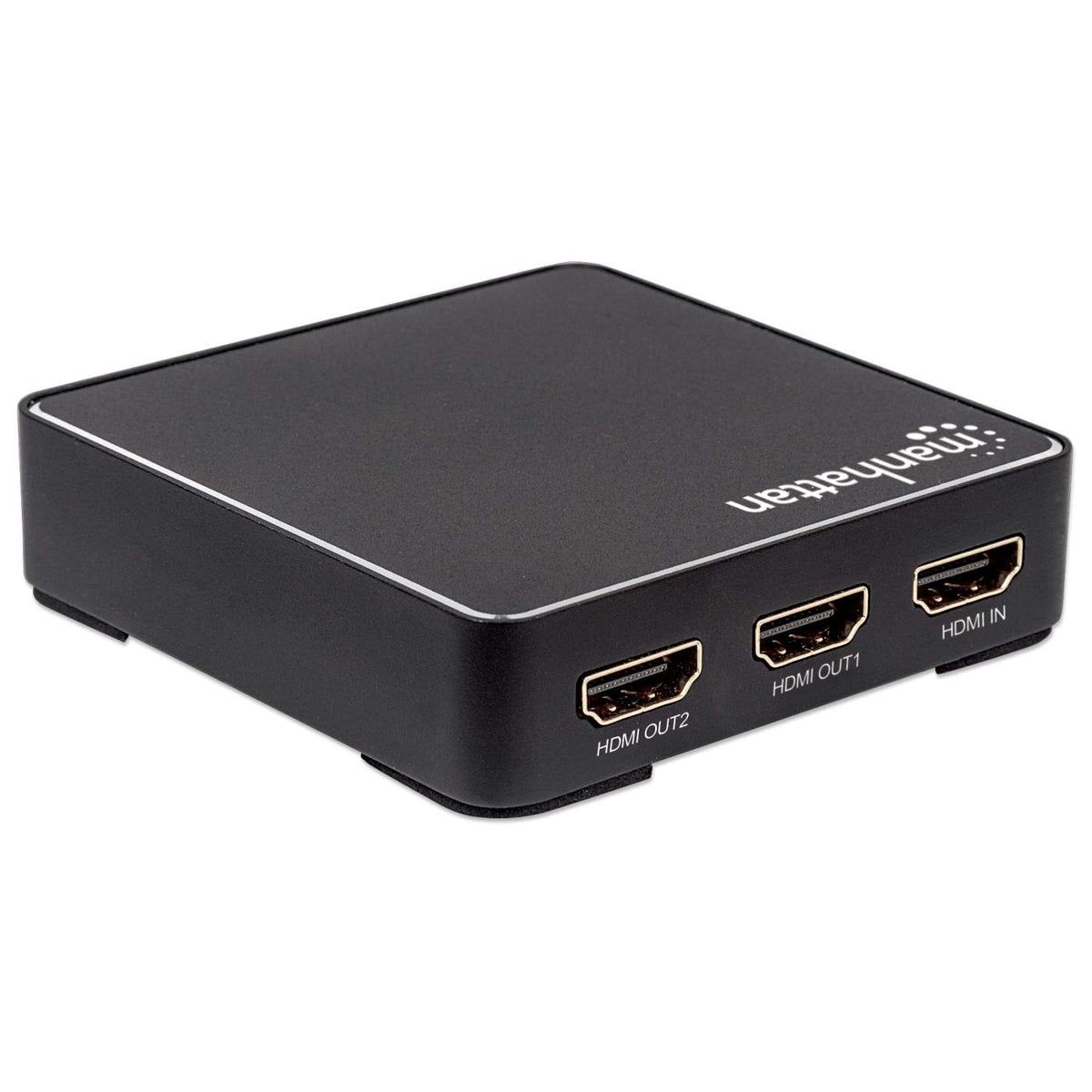

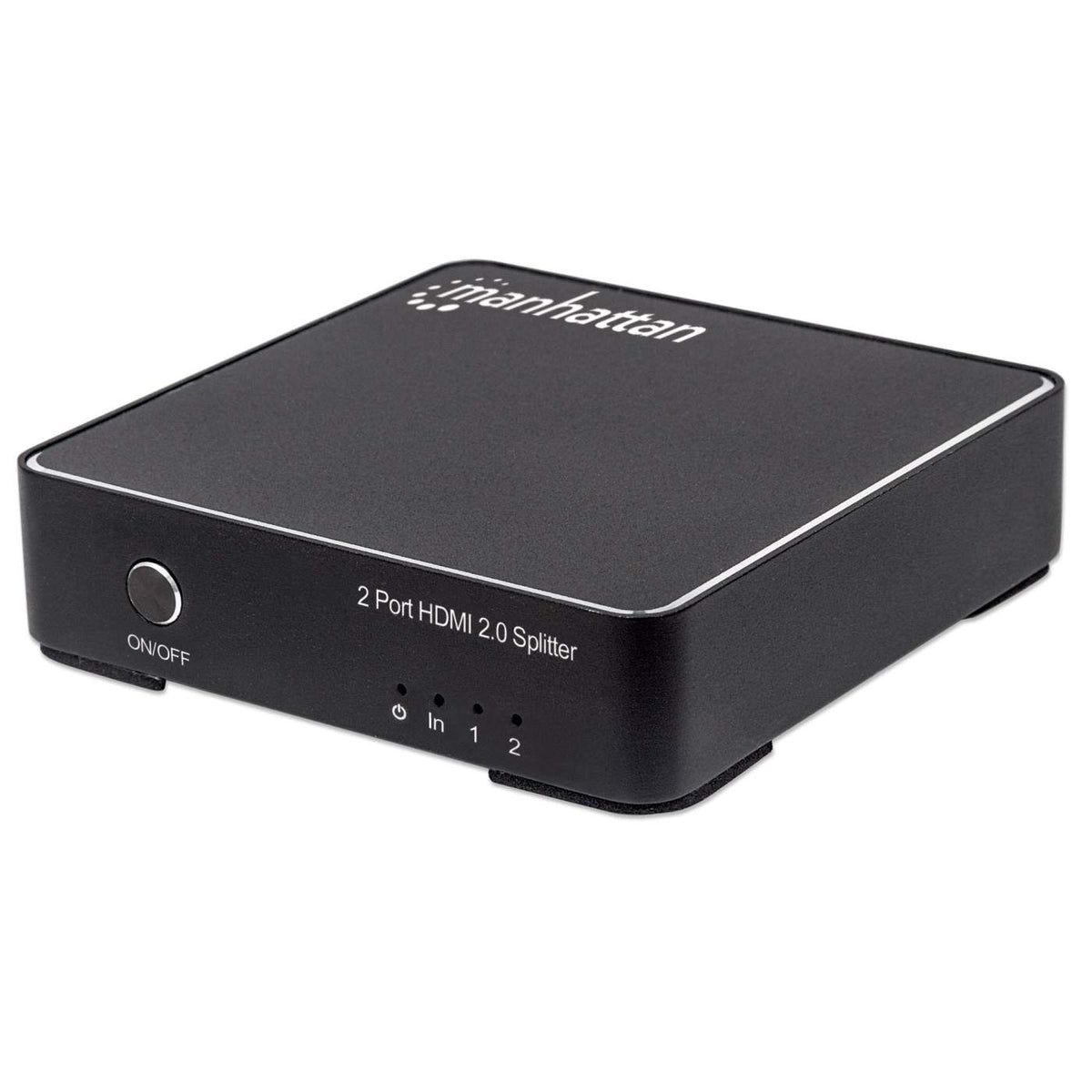

Manhattan 207591 4K 2-Port HDMI Splitter
SKU
207591
Model No
207591
$64.29
Product Highlights
- Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
- 4K@60Hz resolution, full 3D video and Deep Color
- Supports video amplifier bandwidth up to 300 MHz, 3 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
- Supports compressed DTS-HD Master Audio, uncompressed LPCM 8 channel (7.1 surround sound) audio and Dolby TrueHD as well as 32-channel audio
- Supports 48-bit Deep Color (12-bits per channel), xvYCC (x.vColor), Rec. 2020 color space and 21:9 aspect ratio
Speak to an expert
The Manhattan 207591 4K 2-Port HDMI Splitter effortlessly distributes Ultra-High-Definition (UHD) signals from a single source to two displays, making it an ideal solution for various applications like presentations and video conferencing. Its robust construction ensures reliable performance while also providing easy installation and flexibility for connecting multiple devices.
Manhattan 207591 4K 2-Port HDMI Splitter Features
- Duplicates UHD Signal: Distributes an Ultra-High-Definition (UHD) digital audio/video signal to up to two UHD HDMI displays, allowing for synchronized viewing across multiple screens.
- 4K@60Hz Resolution: Supports 4K at 60Hz with full 3D video and Deep Color, providing an exceptional visual experience.
- High Bandwidth Support: Video amplifier bandwidth up to 300 MHz with 3 Gbps per channel ensures seamless performance for 4Kx2K displays.
- Advanced Audio Support: Compatible with compressed DTS-HD Master Audio and uncompressed LPCM 8 channel (7.1 surround sound) audio, delivering high-quality sound.
- Color Enhancement: Supports 48-bit Deep Color (12-bits per channel) and Rec. 2020 color space for vibrant and lifelike colors.
- Multiple Audio Streams: Handles LPCM, DTS Digital, DTS-HD Master Audio, Dolby TrueHD audio, and 32-channel audio for versatile audio playback.
- HDCP 2.2 Compliance: Ensures compatibility with the latest content protection requirements for uninterrupted viewing.
- Plug and Play Installation: AC powered with easy installation; no special setup or remote needed for quick deployment.
- Durable Construction: Rugged metal housing provides maximum durability, accompanied by built-in wall-mounting holes for convenient placement.
- Cascadable Design: Allows up to three splitters to be cascaded for supporting four 4K displays, enhancing adaptability for larger setups.
- Corrosion-Free Connections: Features gold-plated contacts for reliable and corrosion-free connections.
- Wide Compatibility: Functions seamlessly with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers, and more.
Detailed Specifications for Manhattan 207591 4K 2-Port HDMI Splitter
| Feature | Detail |
| Product Type | 4K HDMI Splitter |
| Ports | 2 HDMI Outputs |
| Resolution Supported | 4K@60Hz |
| Video Bandwidth | 300 MHz (10.2 Gbps total) |
| Audio Formats Supported | Dolby TrueHD, DTS-HD Master Audio, LPCM 7.1 |
| Deep Color Support | 48-bit (12-bits per channel) |
| HDCP Version | 2.2 |
| Installation Type | Plug and Play |
| Power Supply | 5 V / 1 A Adapter |
| Housing Material | Metal |
| Cascade Support | Up to 3 levels for 4 displays |
| Compatibility | Game Consoles, Blu-ray Players, Set-Top Boxes, etc. |
SKU  | 207591 |
|---|---|
| Manufacturer | Manhattan |
| Format | Digital |
| In-Outputs | 2 - 2 |
| Video Inputs | HDMI |
| Video outputs | HDMI |
| Mount Options | Stand-Alone |
