Axis 0418-021 P7224 Video Encoder Blade 10 PK
SKU
0418-021
Model No
P7224 VID ENC BLADE BULK 10PCS
$3,712.98
Product Highlights
- Full frame rate in all resolutions
- Simultaneous H.264 and Motion JPEG
- High resolution quad-view
- Two-way audio
- PTZ support
Speak to an expert

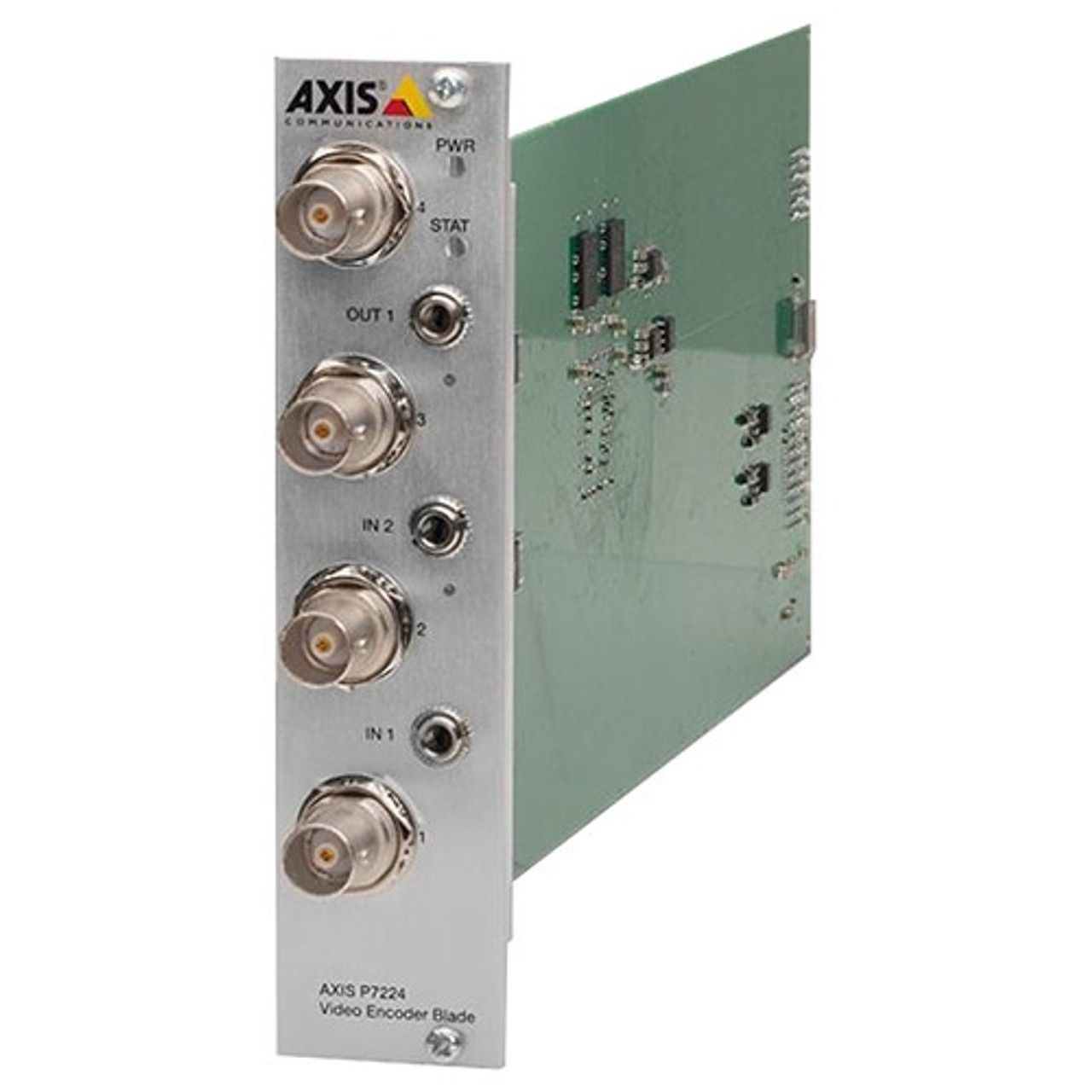

The 0418-021 from Axis is a cost-effective four-channel video encoder blade with great video performance and excellent audio quality. It can simplify migration to network video without upgrading existing camera systems. AXIS P7224 supports all types of analog cameras including PTZ (pan/tilt/zoom) and PTZ domes. The video encoder features both RS-422 and RS-485 for controlling analog PTZ cameras. Configurable inputs/outputs can be connected to external relays and sensors for activating lights, locking/unlocking doors etc. AXIS P7224 is perfect for large analog video installations, especially where an IP network infrastructure is already in place. It is powered by the rack, which simplifies installation.
Axis P7224 Video Encoder Features
- Full Frame Rate: Provides seamless video playback at all resolutions, enhancing the viewing experience.
- Simultaneous H.264 and Motion JPEG: Allows for flexible video streaming options tailored to specific network requirements.
- High-Resolution Quad-View: Enables monitoring of four channels simultaneously in high resolution, improving situational awareness.
- Two-Way Audio: Facilitates communication through the system, enhancing security and operational capabilities.
- PTZ Support: Compatible with analog PTZ cameras for greater control over surveillance areas.
Detailed Specifications for Axis 0418-021 P7224
| Video Channels | 4 analog video channels |
| Image Compression | H.264, Motion JPEG |
| Audio Support | Two-way audio |
| Control Interfaces | RS-422, RS-485 |
| Connectivity | Ethernet, configurable I/O |
| Power Requirements | Powered by rack |
| Dimensions | Compact design for easy integration |
| Operating Temperature | -30°C to 50°C |
SKU  | 0418-021 |
|---|---|
| Manufacturer | Axis |
| No Of Channels | 4 Channel |
Audio Inputs  | 3.5mm Mini |
| Resolution | 176 X 144, 320 X 240, 352 X 288, 640 X 480, 704 X 480, 720 X 480, 1024 X 768, 1280 X 960, 1280 X 1024, 1400 X 1050, 1536 X 1152 |
| Compression Method | H.264, MJPEG, MPEG-4 |
| Protocols | ARP, DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, NTP, QoS layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SOCKS, TCP, UDP, UPnP |
| COM Ports | RS-422, RS-485 |
| Features | Aspect Ratio Correction, De-Interlace, Power Over Ethernet, Privacy Masking, PTZ Support, Video Termination, Temporal Noise Filtering |
| Signal | NTSC/PAL |
| Frame rate | H.264: 30/25 (NTSC/PAL) fps 15 fps in quad view in full resolutionMJPEG: 30/25 (NTSC/PAL) fps 15 fps in quad view in full resolution |
| Authentication | Yes |
