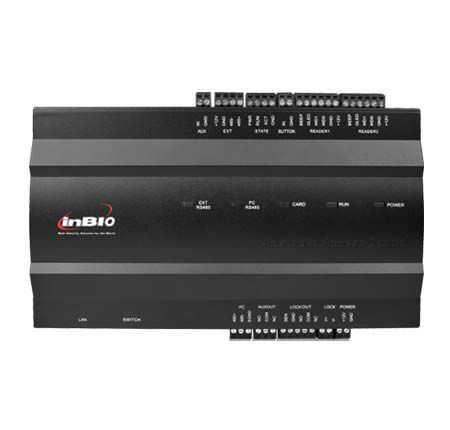

ZKAccess US-inBio-160-PRO IP-Based Biometric Access Control Panel
SKU
US-inBio-160-PRO
Model No
US-inBio-160-PRO
$630.75
Product Highlights
- Over-current protection, over-voltage protection, and reversal protection for the power supply and all of the input and output terminals
- Reliable network system of controllers using either TCP/IP or RS-485 Serial communication
- Supports different Wiegand formats, and connects to ZK readers as well as HID, Mifare, and generic ID card readers
- Connects with a variety of electric locks, sensors, exit buttons, alarm devices, and indicators
- Can be integrated with other security systems such as CCTV, Intrusion Detection, Fire Alarm Release, and elevastor Control for total security system. Directly compatible with ZK's biometric reader controllers
Speak to an expert
The US-inBio-160-PRO from ZKAccess is an advanced IP-Based Biometric Access Control Panel designed for efficient and secure access management. This innovative controller processes fingerprint matching on-site, ensuring real-time performance and high accuracy. With support for a large number of users and events, simple integration with existing systems, and robust features for building security, the InBio-160-PRO is the smart choice for modern access control solutions.
Key Features
- Advanced Fingerprint Matching: Performs fingerprint matching on the panel itself, ensuring fast and accurate access verification.
- Robust User Capacity: Stores up to 3,000 fingerprint templates and 30,000 card users, with the capability of logging up to 100,000 transactions.
- Real-Time Data Backup: Automatic backup to an onboard SD card preserves data integrity even in the event of a power failure.
- Flexible Network Configuration: Easily integrates into existing networks with support for both TCP/IP and RS-485 communication, making installation straightforward.
- Comprehensive Security Integration: Connects seamlessly with other security systems such as CCTV, intrusion detection, and fire alarm systems for a holistic security solution.
- User-Friendly Programming: Intuitive interface with simple pull-down menus allows for easy programming without special scripts.
- Browser-Based Management: Utilize system management directly from a browser, eliminating the need for software installation on multiple client PCs.
- Advanced Access Control Features: Built-in capabilities like anti-passback, multi-card authentication, and duress mode enhance security measures.
- Programmable Relay Controls: Auxiliary relays allow control over additional devices like alarms and lights for comprehensive operational flexibility.
- Compact Design Options: Available in 1-door, 2-door, and 4-door models to match specific project needs, optimizing resource usage.
ZKAccess US-inBio-160-PRO Detailed Specifications
| Feature | Details |
| Fingerprint Storage Capacity | 3,000 templates |
| Card User Capacity | 30,000 users |
| Event Log Capacity | 100,000 transactions |
| Communication Protocols | TCP/IP, RS-485 |
| Power Protection | Over-current, over-voltage, and reversal protection |
| Integration Compatibility | Compatible with ZK readers, HID, Mifare, and generic ID card readers |
| Management Software | Browser-based client management |
| Security Features | Anti-passback, duress mode, dual and multi-card authentication |
| Relay Control Options | Programmable auxiliary relays for additional control |
| Onboard Backup | Real-time backup to an SD card |
SKU  | US-inBio-160-PRO |
|---|---|
| Manufacturer | ZKAccess |
