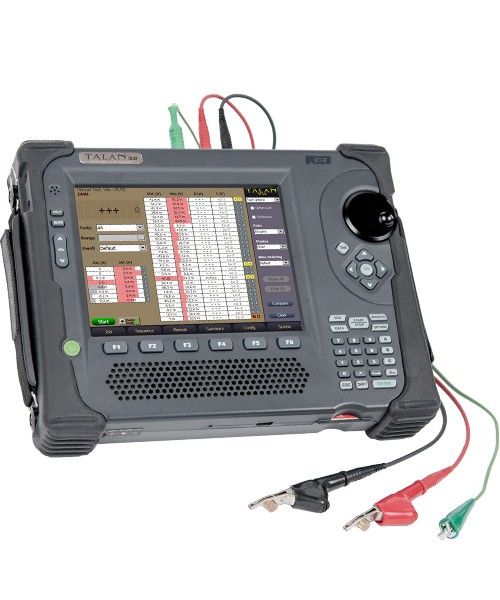

KJB TALAN-3-0 Telephone & Line Analyzer

The TALAN-3-0 from KJB is a Telephone and Line Analyzer that represents advanced capability to detect and locate illicit tampering and security vulnerabilities on digital, analog, and VoIP telephone systems. New hardware provides the ability to test twisted pairs against modern telecommunication threats including shield and ground.

Features

• Comprehensive Testing: Combines multiple testing capabilities into a single piece of equipment for efficient diagnostics.
• Automatic Pair Switching: Automatic internal pair switching matrix performs tests on all pair combinations for thorough analysis.
• VoIP Traffic Filtering: Extensive, advanced VoIP traffic filtering simplifies the process of locating and identifying suspicious packet information.
• FFT Algorithm: The patent-pending Fast Fourier Transform (FFT) algorithm converts network traffic into a spectrum view, revealing visually identifiable patterns not easily noticed in a traditional packet list.
• Quick Test Functions: Quickly performs common test functions including multimeter tests (voltage, current, resistance, capacitance), RF Broadband Detector (up to 8 GHz), Spectrum Analyzer (up to 85 MHz), High Gain Audio Amplifier, Bias Generator ±80 VDC, and Audio Oscilloscope (20 Hz to 20 KHz).
• Digital Demodulation: Digital demodulation available to confirm that the telephone line is not passing audio, ensuring security.
• FDR Capability: Frequency Domain Reflectometer (FDR) checks for taps on the line, enhancing security measures.
• NLJD Functionality: Non-Linear Junction Detector (NLJD) functionality helps detect electronics connected to a line for comprehensive monitoring.
• Multi-Test Database System: Provides the ability to perform tests on all pair combinations, storing data for historical comparison and analysis against other lines.
