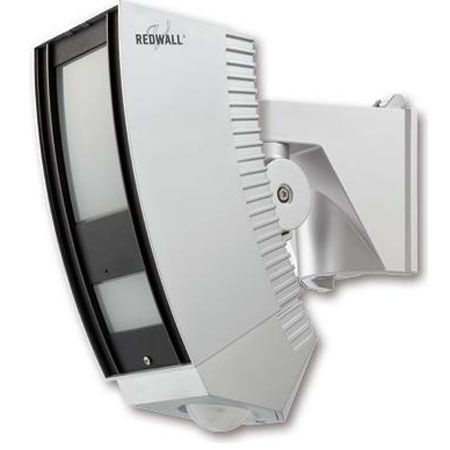

Optex SIP-5030 165' x 100' Superior Intelligent PIR detector SIP-5030 by Optex

Optex SIP-5030 165' x 100' Superior Intelligent PIR detector

Optex SIP-5030 165' x 100' Superior Intelligent PIR detector

by Optex
  • Optex SIP-5030 165' x 100' Superior Intelligent PIR detector Optex SIP-5030 165' x 100' Superior Intelligent PIR detector

SKU: SIP-5030

Model #: SIP-5030

Availability: Usually ships the next business day

$583.00

Low Price Guarantee

Quick Overview



    • Intelligent PIR detection system

    • Detection of ambient temperature and illuminance for automatic sensitivity management

    • Advanced detection algorithm

    • Double Dual/One Quad pryo-elements with patented Double Conductive Shielding for main area

    • Built-in creep zone detector (Double dual pyro-elements)

UPC: 788924085661

  • Express Checkout:
  • Checkout with PayPal

See any errors on this page? Let us know.

Product Details

The SIP-5030 is a superior wide-angle intelligent PIR detector from Optex which is ideally designed to operate at high efficiency within many applications. The SIP-5030 intelligent PIR detector comes with the detection of ambient temperatures/illuminance for auto sensitivity management, an inbuilt creep zone detector, advanced detection algorithm, anti-vandalism functions, as well as a reinforced polycarbonate housing, a 13ft max height installation, and an anti-rotation function with 3 axis accelerometer. The SIP-5030 PIR detector also offers double conductive shielding for the main area, an independent sensitivity selector, anti-masking functions with photo-beam, plus an adjustable alarm interval time, and a 50 x 30m coverage. This professional and reliable PIR detector is able to provide optimal operation, and can easily detect tampering or vandalism for use in high-risk areas. Please also purchase the AFV-1 & AWT-3 - they would be Required for Proper Installation.

Features

  • Intelligent PIR detection system
  • Detection of ambient temperature and illuminance for automatic sensitivity management
  • Advanced detection algorithm
  • Double Dual/One Quad pryo-elements with patented Double Conductive Shielding for the main area
  • Built-in creep zone detector (Double dual pyro-elements)
  • Anti-vandalism functions
  • Anti-rotation function with 3-axis accelerometer
  • Anti-masking function with photo-beam
  • Reinforced polycarbonate housing
  • Max. 13ft. installation height
  • Independent sensitivity selector for creep/near/far areas
  • Independent N.C. and N.O. output for the main area SIP-5030
  • 2 x N.C. and N.O. independent output for main areas (Near and Far areas) SIP-100
  • Adjustable alarm interval time

Downloads

  SIP-5030-Specsheet

  SIP-5030-Installation

Product Specifications

SKU  SIP-5030
Manufacturer  Optex
Type  Hardwired
Scene  Outdoor
