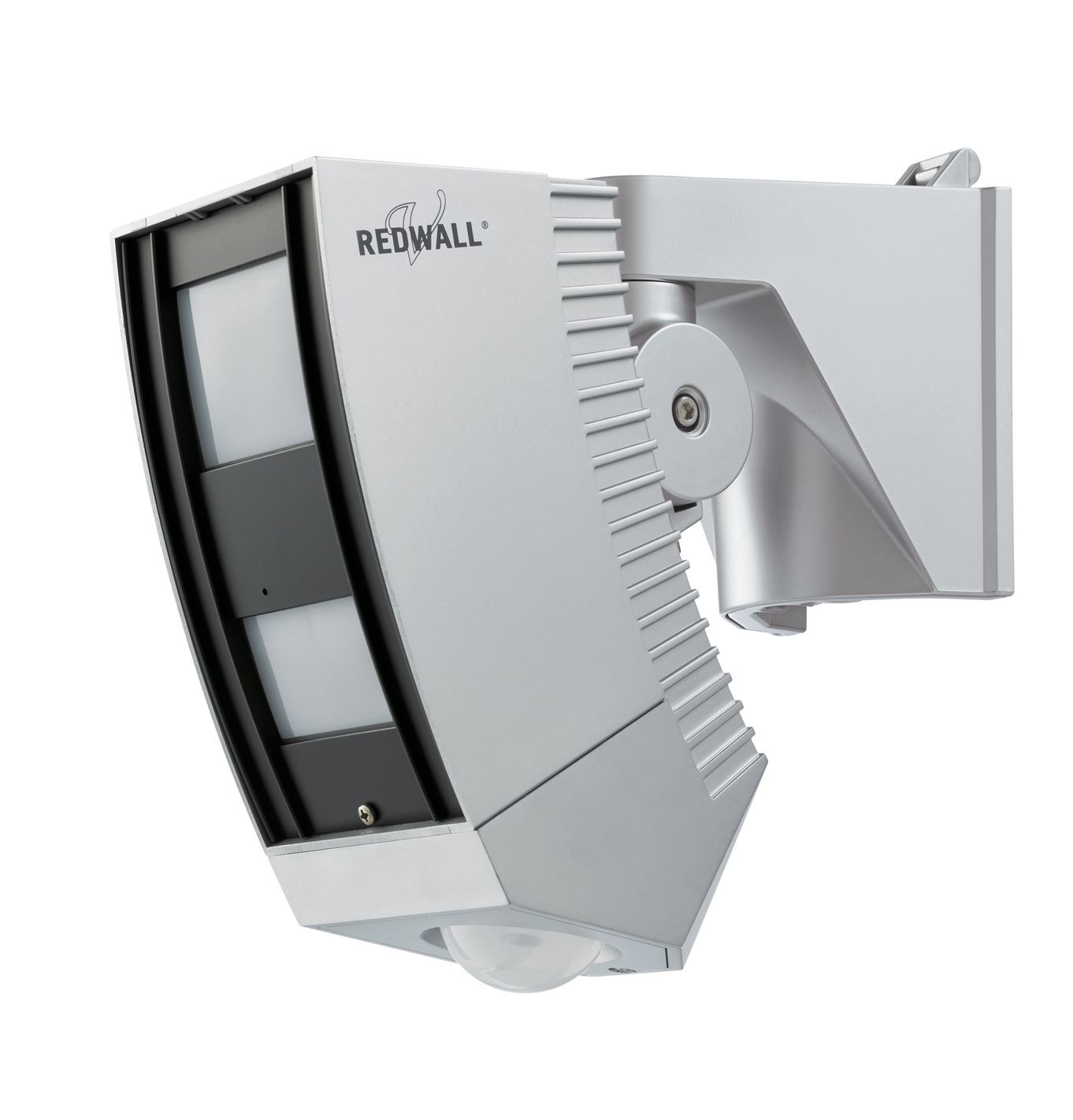

Optex SIP-404-5 130' x 13' Superior Intelligent PIR detector

The SIP-404-5 is a superior intelligent 130' x 13' PIR detector from Optex which is specially designed to provide high quality working operation within medium to small applications where CCTV setups may exist. The SIP-404-5 PIR detector comes with rotation, anti-masking, an adjustable creep zone, as well as advanced detection algorithm, and adjustable alarm interval times. The SIP-404-5 PIR detector also features a 40 x 4m coverage, ambient temperature and luminance detection, a detection logic selector, a detection range selector, 3 Pyro-elements with double conductive shielding, plus a reinforced polycarbonate housing, a sensitivity selector, and independent outputs. This professional intelligent PIR detector is able to offer advanced operation, and can offer resistance against false alarm triggers when non-essential objects enter the vicinity. Please also purchase the AVF-1 & AWT-3 - they would be Required for Proper Installation.

Features

• Intelligent PIR detection system: Provides precise motion detection to improve security.
• Built-in creep zone detector: Uses double dual pyro-elements to ensure detection of movement in vulnerable areas.
• Automatic sensitivity management: Adjusts based on ambient temperature and light, minimizing false alarms.
• Advanced detection algorithm: Increases accuracy in recognizing genuine threats.
• Three dual pyro-elements: Features patented Double Conductive Shielding for enhanced performance.
• Anti-vandalism functions: Includes anti-masking and anti-rotation functions with a 3-axis accelerometer for added security.
• Mounting height: Optimized for installations from 7.6ft. to 13ft. for maximum efficacy.
• Independent sensitivity: Allows customization for near and far detection zones to suit specific requirements.
• Detection logic selector: Enables versatile operation across different detection scenarios.
• Independent N.C. and N.O. outputs: Multipurpose outputs for flexible alarm system integration.
• Adjustable alarm interval time: Customizable settings to align with user needs and reduce nuisance alarms.

Optex SIP-404-5 Detailed Specifications
