Securitron SAMB Shear Magnalock 12/24 VDC, Self Aligning, MBS

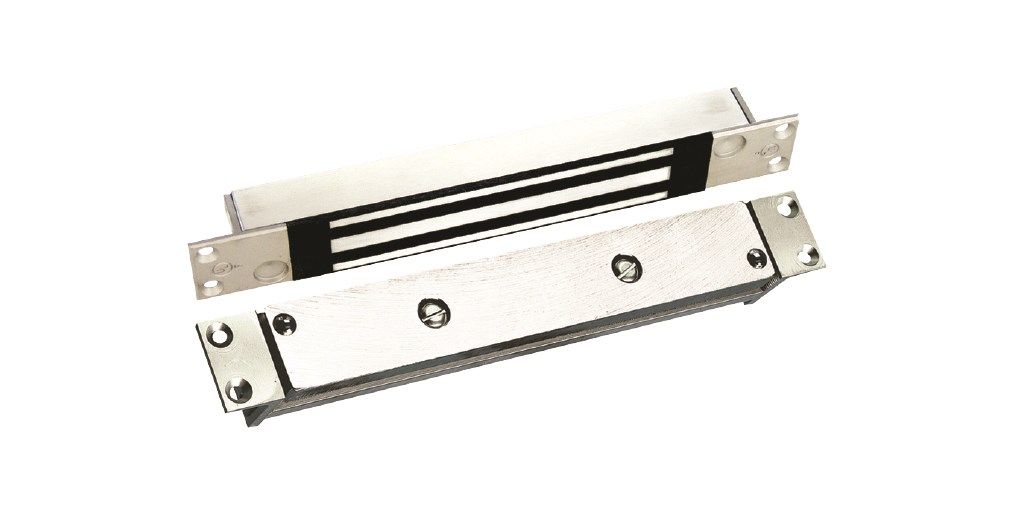

The SAMB from Securitron is a 1200 lbs. holding force Shear Aligning Magnalock that mounts fully concealed into wood, steel, or aluminum doors. It can be installed in any position on the door - top, side, or bottom, making it ideal for swing-through and sliding doors. This advanced locking solution offers unmatched strength and secure performance.

Securitron SAMB Features

• Holding Force: 1,200 pounds of shear holding force ensures maximum security and reliability.
• Power Consumption: Efficient power use of 320mA @ 12VDC & 170mA @ 24VDC – only 4 Watts to keep energy costs low.
• Dual Voltage: Automatically adjusts to 12 VDC or 24 VDC with no field adjustment required for easy installation.
• Instant Release Circuit: No residual magnetism means a fast and reliable release, enhancing safety during emergency situations.
• Sealed Electronics: Fully tamper-proof and weather-proof for durability in various environmental conditions.
• Secure Mounting: Mounted using steel machine screws into blind finishing nuts ensures a strong and stable installation.
• Conductor Length: Ten feet of jacketed stranded conductor provides flexibility in installation.
• Corrosion Resistance: Lock and strikes are plated to prevent rust and maintain functionality over time.
• Fail Safe: Designed to fail safe, providing an added layer of security in case of power loss.
• UL Listed: Meets stringent safety standards for quality assurance.
