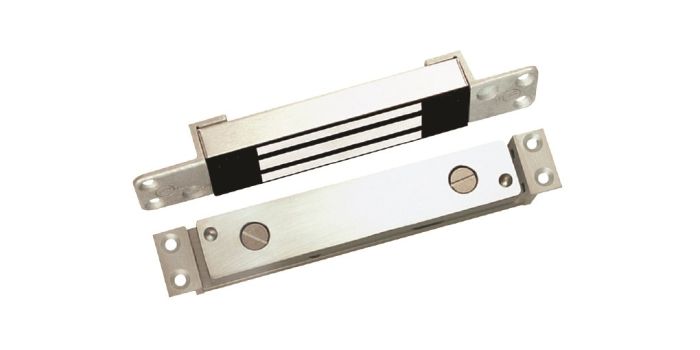

Securitron SAM2C-24 Magnalock Shearlock, 24 VDC

The SAM2C-24 from Securitron is a powerful and compact 600 lbs. holding force Shear Aligning Magnalock designed for smaller applications such as cabinet doors and sliding closet doors. With its fully concealed installation and 24VDC operation, this lock offers both security and convenience.

Securitron SAM2C-24 Magnalock Features

• Smaller Dimensions: Ideal for difficult installation areas, allowing for flexible placement.
• Instant Release Circuit: Eliminates residual magnetism for quick and easy access.
• Fully Sealed Electronics: Offers tamper-proof and weather-proof protection for enhanced durability.
• Secure Mounting: Installed using steel machine screws into blind finishing nuts for added strength.
• Architectural Finish: Features a brushed stainless steel finish (US32D/630) for an aesthetic appeal.
• Plated Surfaces: All ferrous metal surfaces are plated to ML specifications for reliability.
• Long Wiring: Includes ten feet [3.05m] of jacketed, stranded conductor for convenient installation.
• High Holding Force: Maintains a 600 lbs holding force for optimal security.
• Low Current Draw: Operates at only 62 mA @ 24 VDC, ensuring energy efficiency.
• Fail Safe Design: Ensures safety and reliability during power outages.
• UL Listed: Tested and certified for safety standards.

Securitron SAM2C-24 Detailed Specifications
