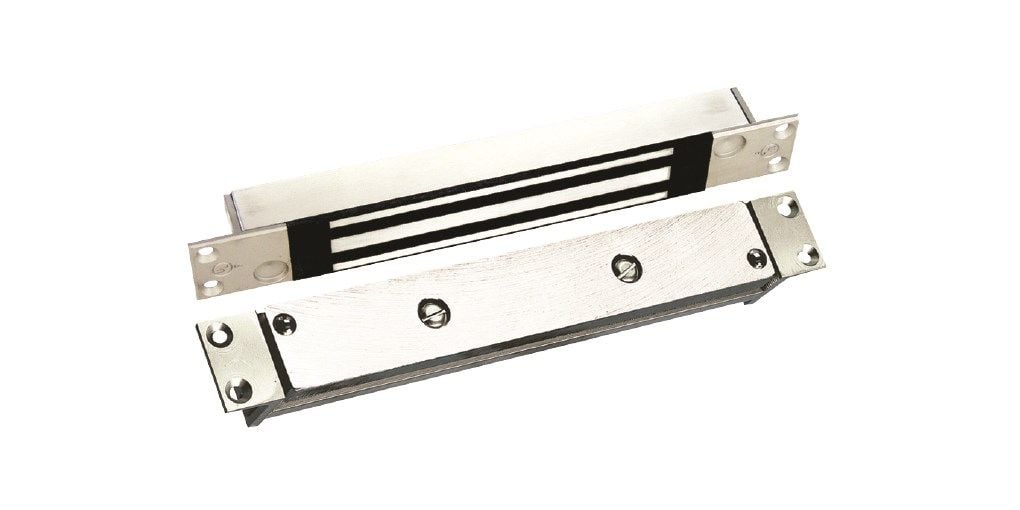

Securitron SAM Shear Magnalock 12/24 VDC, Self Aligning

The SAM from Securitron is a 1200 lbs. holding force Shear Aligning Magnalock mounts fully concealed into wood, steel or aluminum doors. SAM can also be installed in any position on the door - top, side or bottom and is ideal for swing through and sliding doors.

Securitron SAM Shear Magnalock Features

• Holding Force: 1,200 pounds of shear holding force provides robust security to your entry points.
• Power Consumption: Operates at 320mA @ 12VDC & 170mA @ 24VDC, ensuring energy efficiency with a power draw of only 4 Watts.
• Automatic Dual Voltage: Supports 12 VDC or 24 VDC without the need for field adjustments, simplifying installation.
• Instant Release Circuit: Features no residual magnetism for immediate disengagement, enhancing safety during emergency exits.
• Sealed Electronics: Fully tamper proof and weather proof, ensuring reliability and durability in various environments.
• Easy Installation: Mounted using steel machine screws into blind finishing nuts for a secure fit.
• Pre-Wired: Comes with ten feet of jacketed stranded conductor for convenient setup.
• Corrosion Resistant: Lock and strikes are plated to withstand environmental wear and tear.
• Fail Safe: Ensures that the lock will release during a power failure, maintaining safety.
• UL Listed: Adheres to high safety and quality standards for peace of mind.

Securitron SAM Shear Magnalock Specifications
