RVS Systems RVS-SUR-SDU12 Surround Sensor Detection System Features

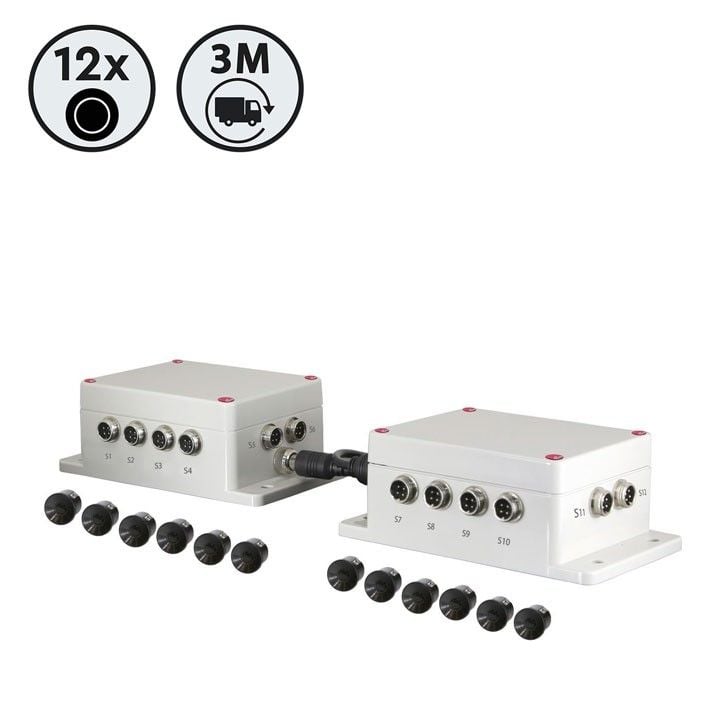

The RVS-SUR-SDSU12 from RVS System is a 12 sensor surround detection system that warns drivers of potential obstacles around their vehicle. The system projects an image of a vehicle on the monitor, showing activation for each individual sensor. The Surround Sensor Detection System can be connected to either the reverse wire for activation when backing up or hardwired to constant power. In addition to the visual warning, the system also includes a speaker for audio alerts. If using the speaker, it will continue emitting warning beeps even if the monitor is turned off. The front/rear sensors can detect objects to a maximum of 16ft. The optimal detection distance of these sensors is 10ft. Depending on the distance from the object, the display color (light green/dark green/yellow/red/STOP) and frequency/volume of the audio alerts will change. The sensors on the side of the vehicle have a maximum detection distance of 10ft. These sensors will show dark green/yellow/red symbols based on the distance from the object. A black dot will appear in the place of a sensor if it is not properly connected to the main hub. This Surround Sensor Detection System is also available in a six sensor configuration.
RVS Systems RVS-SUR-SDU12 Key Features
12 Sensor Coverage: Provides comprehensive detection around the vehicle, enhancing safety and awareness.
Obstacle Detection Range: Front/rear sensors detect objects up to 16ft, with an optimal range at 10ft, ensuring early warnings.
Visual Alerts: Monitor displays activation of individual sensors with color-coded feedback for distance recognition.

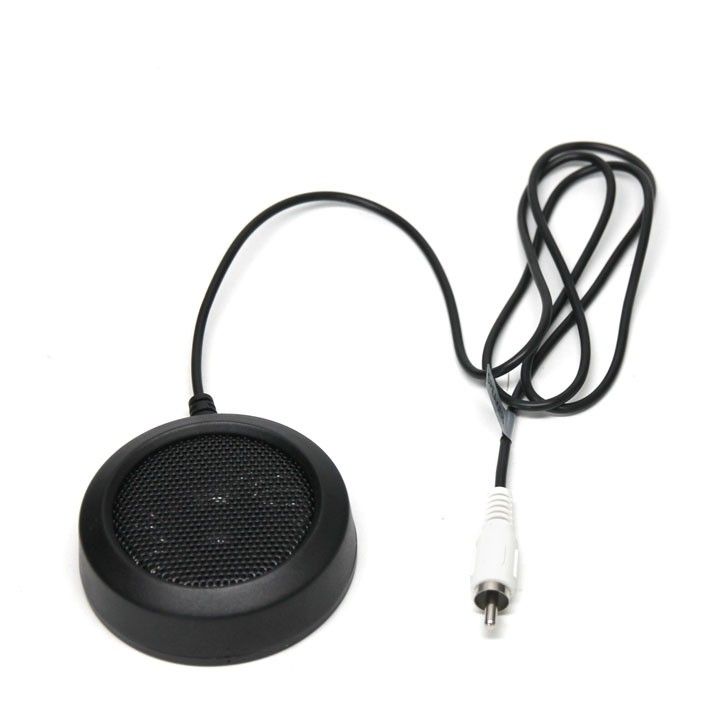

Audio Notifications: Included speaker provides continuous alert sounds, even when the monitor is off, keeping you informed.
Side Sensor Functionality: Side sensors enhance visibility with detection up to 10ft, increasing side safety during maneuvers.
Flexible Installation: Connects to reverse wire or hardwired for constant power, adapting to various installation needs.
Diagnostic Indicators: Monitors sensor connectivity, indicating proper function with visual cues (e.g., black dot for disconnection).
Available Configurations: Also offered in a six sensor version, allowing buyers to choose based on their needs.
RVS-SUR-SDU12-Specsheet
