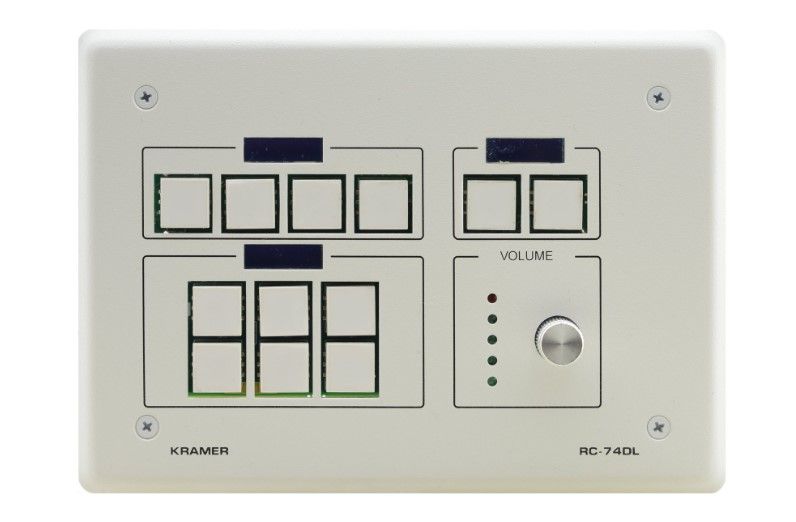

Kramer RC-74DL-W 12−Button Master Room Controller with Digital Volume Knob

The Kramer RC-74DL-W is an advanced 12-button master room controller featuring a digital volume knob and multiple LCD displays, making it an ideal choice for managing multimedia systems in auditoriums and meeting rooms. Its connectivity to Kramer's Site-CTRL™ and LAN-connected control gateways ensures seamless integration and remote control capabilities. The device is designed for flexibility, allowing it to function independently or as part of a larger control system, thereby enhancing overall room functionality.

Features

• Back Lit & Label Capable Buttons: 12 RGB-color, tactile feedback buttons improve usability in low-light settings with custom labeling options.
• Custom Labelled, Removable Button Caps: Personalize controls to suit user preferences, ensuring intuitive operation.
• Volume Control Knob with LEDs: Bi-directional rotary digital knob provides precise volume adjustments with visual feedback, enhancing user experience.
• LCD Displays: Three separate displays enable programmed feedback and clear group configuration labels for easy access to controls.
• 2 K–NET™ Connectors: Facilitate connection to master controllers and auxiliary keypads for extensive control flexibility.
• K–NET™ Single Link Connection: Simplifies cabling with a single connection that carries both power and control communication.
• 1 RS–485 Control Port: Enables control of devices using reliable industry-standard protocols.
• 3 RS–232 Control Ports: Support serial device control via bi-directional communication for improved compatibility.
• 2 IR Emitter Control Ports: Allow control of devices through infrared commands for added functionality.
• 2 GPI/O Control Ports: Versatile control options for integrating and managing other devices using general purpose I/O configurations.
• 4 Relay Control Ports: Simple control of physical screens, drapes, and shades through relay contacts.
• IR Sensor Port: Facilitates easy learning of commands from IR remotes to expand control options.
• Program Control: Custom program configuration using Kramer K–Config software simplifies setup and adjustments.
• Kramer Site–CTRL™ Compatibility: Supports network management and remote control capabilities over Ethernet for comprehensive room oversight.
• Keypad Lock–Out: Option to disable keypad buttons to prevent unauthorized access or tampering.
• Mini USB Port: Convenient for uploading configuration files and setting device parameters during setup.
• Mounting: Designed for in-wall installation in standard 3 gang US wall junction boxes, ensuring a clean look.
• Easy Installation: Fits standard in-wall boxes, making installation straightforward and cost-effective.

Kramer RC-74DL-W Detailed Specifications
