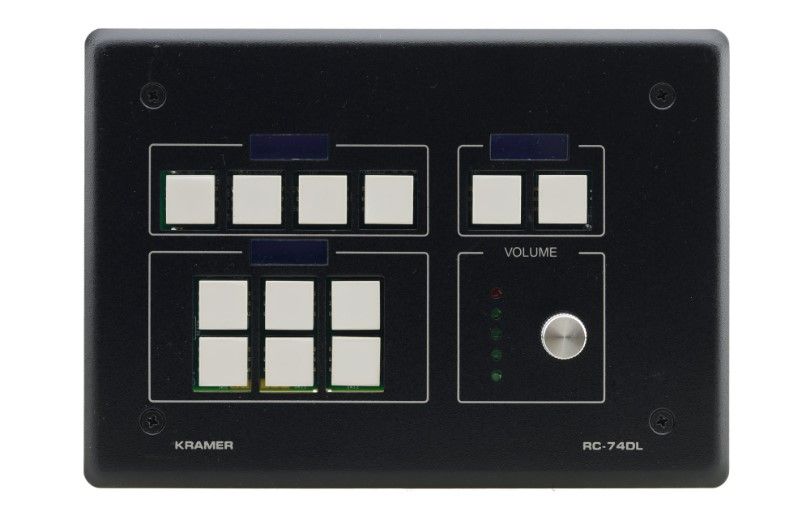

Kramer RC-74DL-B 12−Button Master Room Controller with Digital Volume Knob

The Kramer RC-74DL-B is a sophisticated 12-button master room controller featuring a digital volume knob and LCD displays, designed for flexible multimedia system management in auditoriums and meeting rooms. With seamless connectivity to Kramer's Site-CTRL™ for remote AV control and monitoring, this device enhances user experience through its customizability and ease of use, making it ideal for any complex room setup.

Kramer RC-74DL-B Unique Features

• Backlit & Label Capable Buttons: 12 RGB-color tactile feedback buttons grouped with 3 LCD displays for optimal user interaction.
• Custom Labelled, Removable Button Caps: Personalize the controller to fit specific needs or preferences, enhancing usability.
• Volume Control Knob with LEDs: Bi-directional rotary dial that provides visual feedback on volume levels through 5 LEDs.
• LCD Displays: 3 blue-color and 8 white-character displays provide clear visual feedback and customizable labelling.
• 2 K–NET™ Connectors: Enables connection to master controllers and auxiliary keypads for expanded control capabilities.
• K–NET™ Single Link Connection: Simplifies connectivity with a single cable carrying power and control data.
• 1 RS–485 Bi–directional Control Port: Facilitate control over devices using RS–485 protocols for enhanced compatibility.
• 3 RS–232 Bi–directional Control Ports: Allows communication with various devices using serial protocols for diverse control options.
• 2 IR Emitter Control Ports: Supports IR protocol control for additional flexibility in device management.
• 2 GPI/O Control Ports: Configurable for various control applications like sensors or light dimming, ensuring comprehensive room management.
• 4 Relay Control Ports: Control screens, shades, and other elements using relay contact closure for effective room adjustments.
• IR Sensor Port: Learns commands from IR remotes to enhance user convenience.
• Program Control: Custom configurations can be made through Kramer K–Config software for tailored setups.
• Kramer Site–CTRL™ Compatibility: Streamlines network management and remote control features via Ethernet.
• Keypad Lock–Out: Prevents tampering by allowing keypad button locking or unlocking.
• Mini USB Port: Facilitate easy configuration file uploads and settings adjustments.
• Mounting: Designed for in-wall installation, fitting standard 3 gang US wall junction boxes.
• Easy Installation: Cost-effective installation options with standard in-wall box compatibility.

Kramer RC-74DL-B Detailed Specifications
