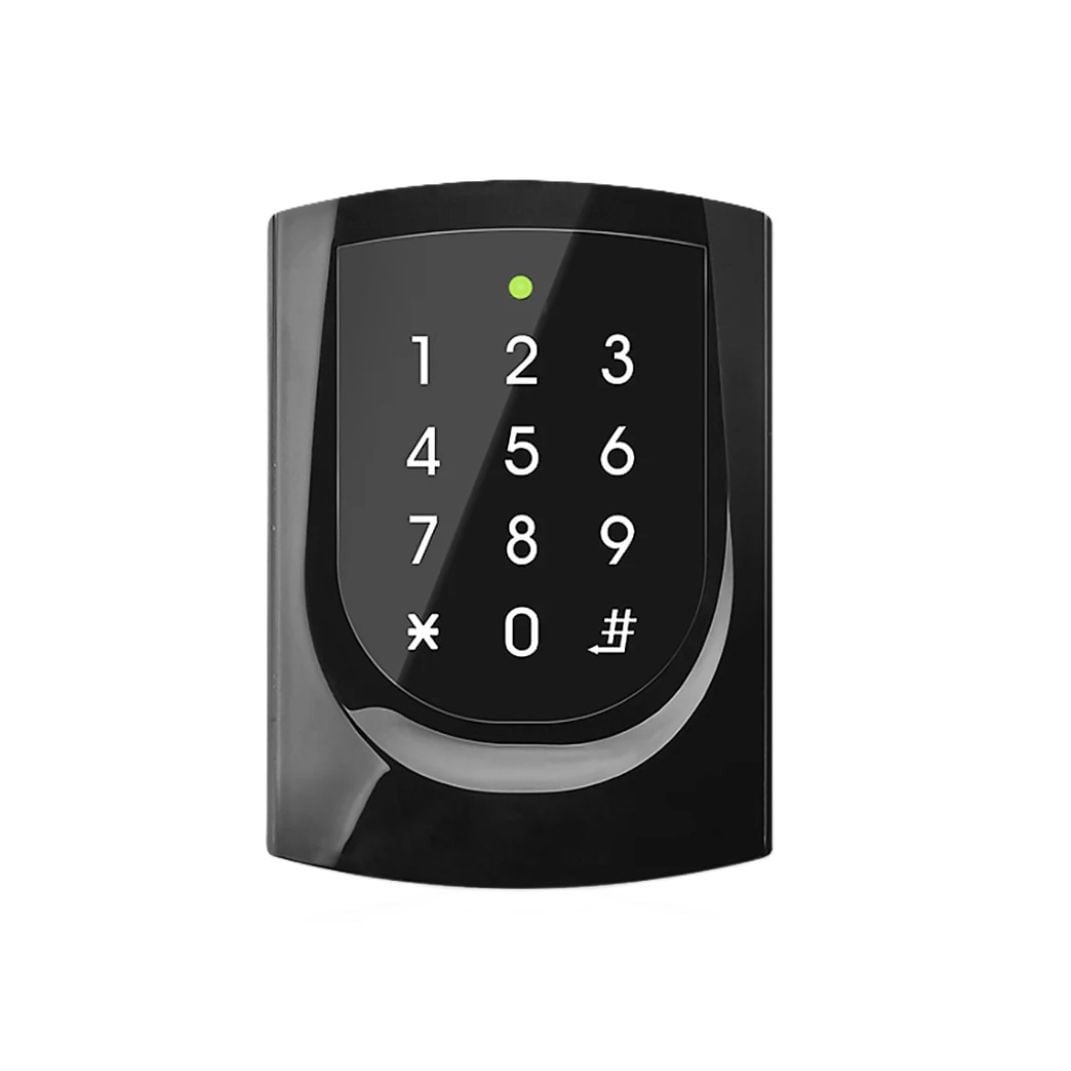

ACTi R11C-310 RFID Card Detection RFID Reader and Controller with Bundled 16000 Card Database
SKU
R11C-310
Model No
R11C-310
$580.50
Product Highlights
- Multi-frequency reader (125 kHz + 13.56 MHz): supports the widest range of credential cards in a single device — legacy 125 kHz proximity cards (EM, HID Prox), modern 13.56 MHz smart cards (Mifare, DESFire, FeliCa), and NFC mobile credentials
- Built-in controller eliminates the need for a separate access control panel for single-door applications — the R11C-310 is a complete one-device access control solution with door lock relay, egress button inputs, door status monitoring, and alarm output
- Integrates with ACTi VMS and IP camera systems for combined video and access control monitoring from the same platform
Speak to an expert
The ACTi R11C-310 RFID Card Detection RFID Reader and Controller is an advanced access control solution designed to enhance security and streamline management. With its multi-frequency capabilities and built-in controller, it offers comprehensive support for a wide variety of credential types, making it an ideal choice for any security setup.
ACTi R11C-310 RFID Reader and Controller Features
- Multi-frequency reader: Supports both 125 kHz and 13.56 MHz credentials, allowing flexibility with legacy and modern access cards including EM, HID Prox, Mifare, DESFire, FeliCa, and NFC mobile credentials.
- Built-in controller: Combines reader and access control panel into a single device for single-door applications, simplifying installation and reducing costs while providing essential functions like door lock relay and egress button inputs.
- Seamless integration: Works with ACTi VMS and IP camera systems, enabling unified video surveillance and access control management from a single interface, improving operational efficiency.
ACTi R11C-310 Detailed Specifications
| Reader Type | Multi-frequency (125 kHz / 13.56 MHz) |
| Supported Credentials | EM, HID Prox, Mifare, DESFire, FeliCa, NFC |
| Device Type | RFID Reader and Controller |
| Application | Single-door access control |
| Integrated Features | Door lock relay, egress button inputs, door status monitoring, alarm output |
| Compatibility | ACTi VMS and IP camera systems |
| Database Capacity | Bundled with 16,000 card database |
SKU  | R11C-310 |
|---|---|
| Manufacturer | ACTi |
