ETS PR2 2 Magstripe/Weigand Reader Combiner

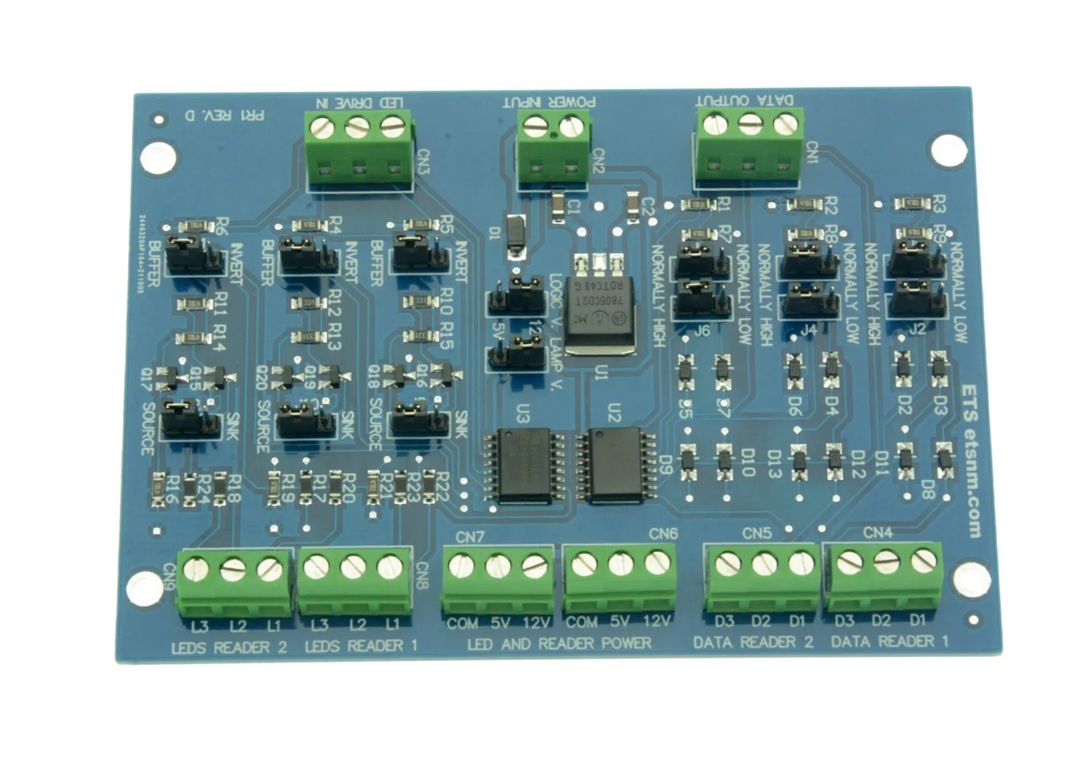

The PR2 (formerly known as PR1) is an advanced reader combiner designed for modern access control systems, enabling seamless connection of two access control card readers to a single reader input. This innovative device supports both Wiegand and magstripe reader types, optimizing resource usage and improving operational efficiency.

ETS PR2 Combiner Key Benefits

• Combines dual readers: Integrates two Weigand or magstripe reader outputs into a single output, saving valuable reader ports on access control panels.
• Buffered data output: Offers a buffered single reader output data port ensuring reliable data transmission.
• Enhanced signaling: Provides two LED or sounder inputs and outputs for improved user interaction and notifications.
• Open collector outputs: Features open collector outputs for LEDs/sounders, enhancing compatibility with various systems.
• Selectable power options: Allows selection between 5V or 12V power for connected readers, accommodating diverse installation environments.
• Customizable outputs: Options for inverted or buffered LED/sounder outputs enable easy adaptation to different applications.
• Flexible connectivity: Offers selectable sink or source outputs for LEDs/sounders, enhancing operational versatility.
• Reliable connections: Utilizes terminal block connections for secure and straightforward installations.
• Efficient power usage: Operates on 12VDC at just 20mA, optimizing energy consumption.
• Reverse polarity protection: Safeguards the device against incorrect power connections, ensuring durability.
• Wide temperature range: Functionality from -40 to 125°C allows for operation in extreme conditions, making it ideal for various environments.

ETS PR2 Detailed Specifications
