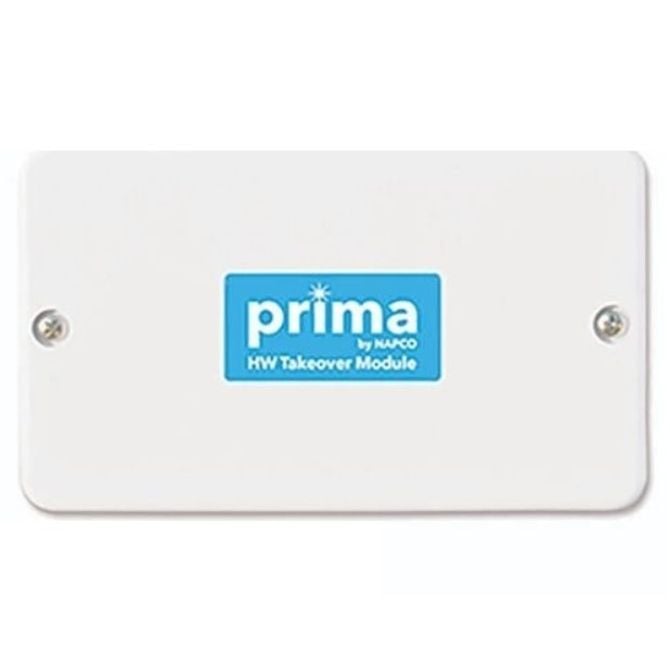

Napco PHW8RETRO 8-Zone Hardwired Takeover Module

Prima’s 8-Zone Hardwired Takeover Module easily converts an existing wired security system’s zones to wireless and eliminate rewiring or replacing installed sensors.

Features

• Ideal for Retrofitting Existing Systems’ Hardwire Sensors into the Prima Wireless System to save costs & time
• Converts up to 8 wired zones into 8 supervised wireless zones
• Status LED through housing cover
• 6” x 3.5” x 1.5” (H x W x D)
• Input Power: 12VDC Nominal, 650mA max
• Zone Loop: Current 3.7mA, nom.; 5.5mA, shorted
• Supports 1 Fire device per Module, up to 4 Modules per system
