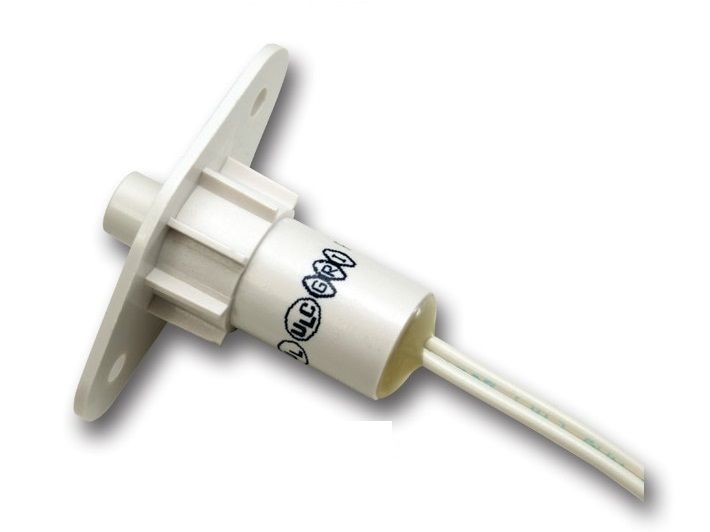

GRI PBF-100-48-W 3/8″ Diameter Plunger Switch, With Flange Closed Loop, White

The GRI PBF-100-48-W is a versatile 3/8" diameter plunger switch designed to replace problematic mechanical contacts effortlessly. This sealed reed switch ensures a long service life and is praised for its strong performance in various installations. With easy installation and a durable design, it provides reliability and efficiency for your electrical applications.

GRI PBF-100-48-W Camera Features

• Recessed magnetic contact: Enhances design aesthetics while providing reliable performance.
• PB is 9/16” press fit: Simplifies installation without the need for additional mounting hardware.
• PBF is 3/4" x 1 1/2" with screw down flange: Ensures a robust and secure mounting option for various applications.
• Adjustable screw plunger: Offers versatility with travel distance total of .270, accommodating specific needs.
• 12” #22AWG leads or screw terminals: Provides flexible connectivity options for easier integration into existing systems.
• Longer leads, zip cords or jacketed cable: Customization available upon request for tailored solutions.
• Hermetically sealed: Protects against environmental factors, enhancing durability and longevity.
• Plated contacts: Resist sticking or freezing, ensuring consistent performance.
• Spacers and mounting hardware included: Provides everything needed for a complete installation right out of the box.
• Built-in E.O.L. Resistors and Diodes: Available upon request for enhanced functionality.
• Colors available: Offered in white and brown to match various aesthetic requirements.
