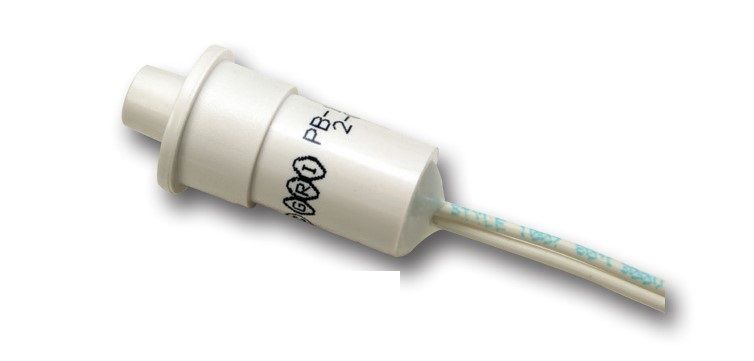

GRI PB-100-W Push Button Plunger Switch, Without Flange Closed Loop, White

The GRI PB-100-W Push Button Plunger Switch is an advanced solution designed to replace problematic mechanical contacts. This user-friendly switch features a press-fit design that simplifies installation without requiring re-drilling. Its long-lasting sealed contacts and adjustable screw plunger ensure reliability and versatility for various applications.

GRI PB-100-W Push Button Plunger Switch Features

• Recessed magnetic contact: Ensures safety and prevents accidental activation.
• 9/16” press fit design: Allows for easy installation without the need for screws, saving time and resources.
• 3/4" x 1 1/2" with screw down flange (PBF): Offers options for different mounting needs.
• Adjustable screw plunger: With a total travel distance of .270 and pre-travel of .090 ± .040, it provides flexibility in activation.
• 12” #22AWG leads or screw terminals: Facilitates easy connection and installation.
• Customizable lead length: Longer leads, zip cords, or jacketed cable available upon request for tailor-made solutions.
• Hermetically sealed: Protects the switch from moisture and dust, ensuring durability.
• Plated contacts: Resists sticking or freezing, enhancing operational reliability.
• Included spacers and mounting hardware: Provides everything needed for a complete installation.
• Built-in E.O.L. resistors and diodes: Available upon request, adding extra functionality.
• Color options: Available in white and brown to suit various applications.

GRI PB-100-W Detailed Specifications
